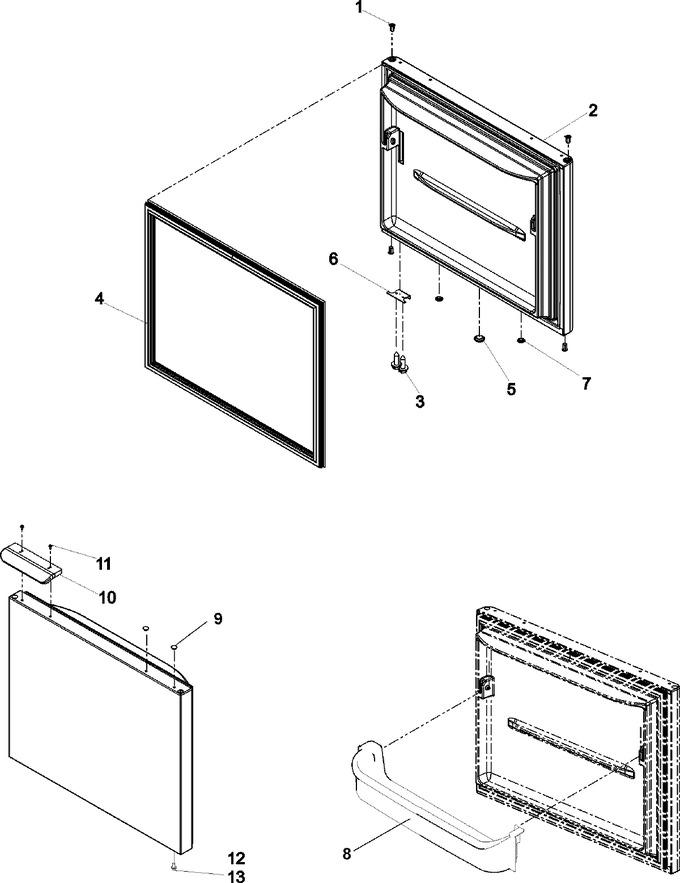

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004978		Bushing, Door (blk)   (Replaces: 67003369)				$ 21.05
2	67001145		Fz Dr Foam Assy (blk)	10	Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
4	WPW10436247		Gasket, Fz Door (blk)   (Replaces: 67003551)	10		Immediately	$ 355.53
4	WPW10436247		Gasket, Fz Door (blk)   (Replaces: 12683816B)	12		Immediately	$ 355.53
5	A3080001		Plug, Button (blk)	10	Appelez-nous	-
6	W11708403		Stop, Door (blk)   (Replaces: 67003780)			Immediately	$ 14.05
7	67004838		Plug, Button (blk)   (Replaces: 67001016)	10			$ 10.68
8	67003397		Retainer, Frz Door	10			$ 104.39
9	67006806		Screw, Hi Torque (blk)	12			$ 13.35
9	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)			Immediately	$ 7.76
10	67005125		Handle, Fz Dr (black)	10			$ 142.03
11	67006529		Screw, Sm (stnls)   (Replaces: M0213530)	10			$ 12.83
11	67007166		Screw (blk)	12	Appelez-nous	-
