1 - Component Group
2 - Component Group
New Model Search:

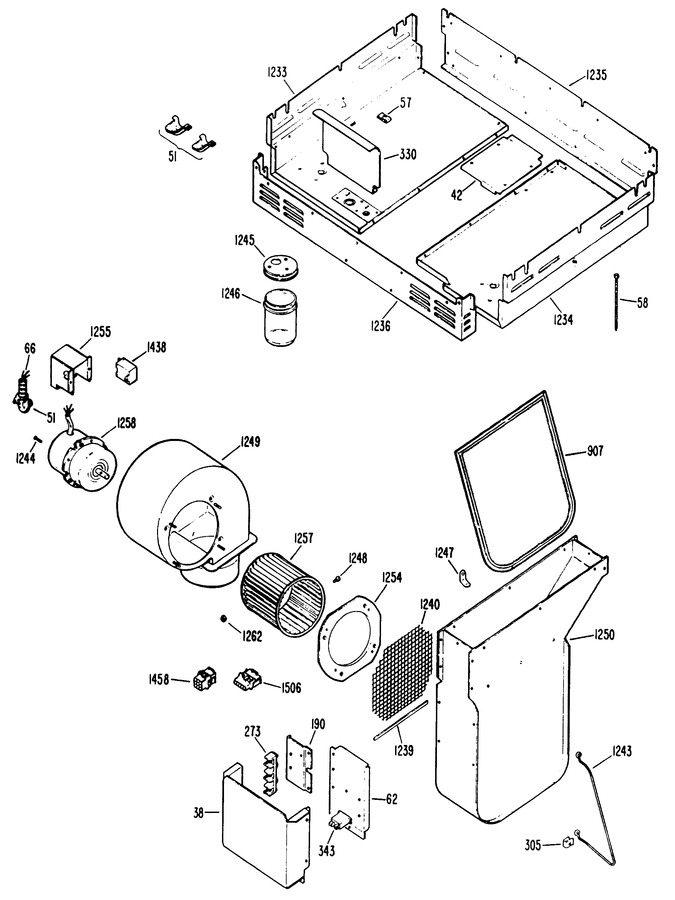

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 38 | WB2X7821 | Cover Wiring |
|
- | |||||
| 42 | WB2X7818 | Cover Rear Case |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 51 | WB2X1458 | Clamp Conduit |
|
- | |||||
| 51 | WB2X3014 | Clamp Conduit |
|
- | |||||
| 51 | WB2X7842 | Connector Conduit |
|
- | |||||
| 57 | WB1X5759 | Speed Clip |
|
- | |||||
| 58 | WB1X5758 | Screw |
|
- | |||||
| 62 | WB2X7819 | Cover Rear Terminal |
|
- | |||||
| 66 | OBT LOCAL | Flexible Conduit 1/2"x44 |
|
- | |||||
| 190 | WB2X7820 | Bracket Terminal |
|
- | |||||
| 305 | WB1X5769 | Speednut |
|
- | |||||
| 330 | WB49X5417 | Channel Air |
|
- | |||||
| 343 | WB21X5254 | Relay |
|
- | |||||
| 907 | WB2X7817 | Filter |
|
- | |||||
| 907 | WB2X7840 | Filter |
|
- | |||||
| 1233 | WB49X5411 | Case Asm |
|
- | |||||
| 1234 | WB49X5413 | Case Side |
|
- | |||||
| 1235 | WB49X5414 | Case Rear |
|
- | |||||
| 1236 | WB49X5416 | Case Front |
|
- | |||||
| 1239 | WB2X7828 | Pad |
|
- | |||||
| 1240 | WB2X7812 | Guard Wire |
|
- | |||||
| 1243 | WB2X7813 | Guide Filter |
|
- | |||||
| 1244 | WB1X5764 | Screw |
|
- | |||||
| 1245 | WB2X7814 | Lid Grease Jar |
|
- | |||||
| 1246 | OBT LOCAL | Jar Grease,mason Or Ball |
|
- | |||||
| 1247 | WB2X7815 | Clip Filter |
|
- | |||||
| 1248 | WB1X5765 | Screw |
|
- | |||||
| 1249 | WB49X5418 | Housing |
|
- | |||||
| 1250 | WB49X5415 | Plenum Asm |
|
- | |||||
| 1254 | WB49X5419 | Orifice |
|
- | |||||
| 1255 | WB2X7810 | Cover Capacitor |
|
- | |||||
| 1257 | WB2X7830 | Wheel Blower |
|
- | |||||
| 1258 | WB26X5087 | Motor, Blower |
|
- | |||||
| 1438 | WB27X5437 | Capacitor |
|
- | |||||
| 1458 | WB17X5061 | Terminal Blk Asm (3 Pin) |
|
- | |||||
| 1506 | WB17X5078 | Housing Socket Pkg 5 Pin |
|
- |
