SELECT A DIAGRAM

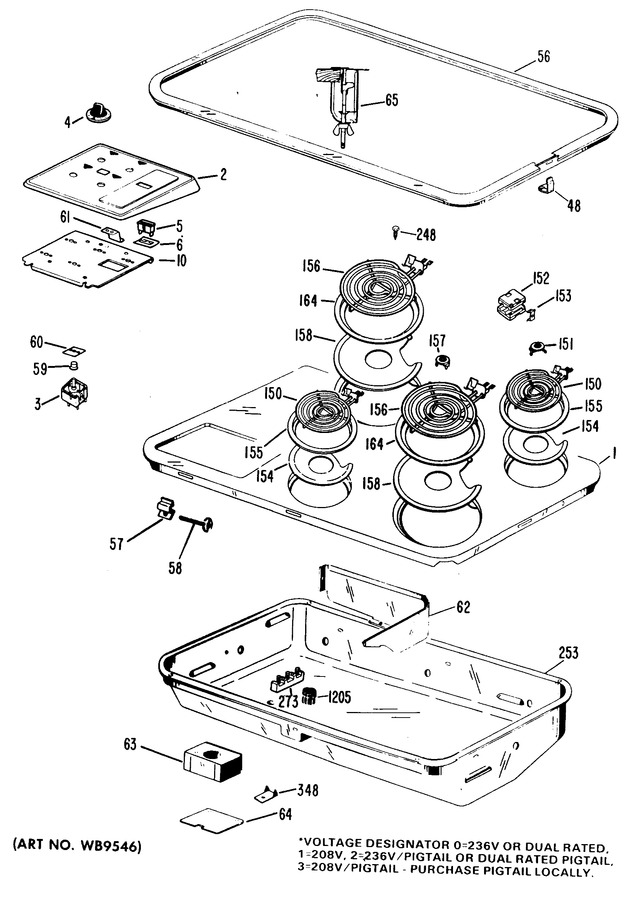

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1422 | Cooktop Bc |
|
- | |||||
| 2 | WB7X6767 | Trim Switch |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X464 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X3278 | Lamp, Indicator |
|
- | |||||
| 10 | WB2X3281 | Bracket Switch |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 48 | WB2X1172 | Clip |
|
- | |||||
| 56 | WB7X143 | Trim Frame |
|
- | |||||
| 57 | WB2X1006 | Bracket Mounting |
|
- | |||||
| 58 | WB1X194 | Thumb Screw |
|
- | |||||
| 59 | WB1X5070 | Rivet |
|
- | |||||
| 60 | WB2X5164 | Switch Seal Inf Heat |
|
- | |||||
| 61 | WB2X3280 | Clip Cooktop |
|
- | |||||
| 62 | WB2X1028 | Guard |
|
- | |||||
| 63 | WB2X1306 | Box Asm |
|
- | |||||
| 64 | WB2X3277 | Plate Cover |
|
- | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5013 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8"unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 253 | WB62X1423 | Cooktop Box |
|
- | |||||
| 273 | WB17X167 | Block Term Distribution |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 1201 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 1205 | WB2X1027 | Strain Relief |
|
- | |||||
| 2306 | WZ10X0017 | Washer |
|
- | |||||
| 32767 | WB21X5217 | Switch, Inf Surface Unit |
|
- | |||||
| 32767 | 31-0412 | Install Instructions |
|
- | |||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 B Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB2X3278 | Lamp, Indicator |
|
- | |||||
| 32767 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 32767 | WZ05X0250 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WB1X549 | Scr 10-12 A Ihw 3/8 S |
|
- | |||||
| 32767 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 32767 | WZ04X0228 | Scr 8-18 B Rdr 3/16 S |
|
- | |||||
| 32767 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 32767 | WZ07X0029 | Nut |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- |
