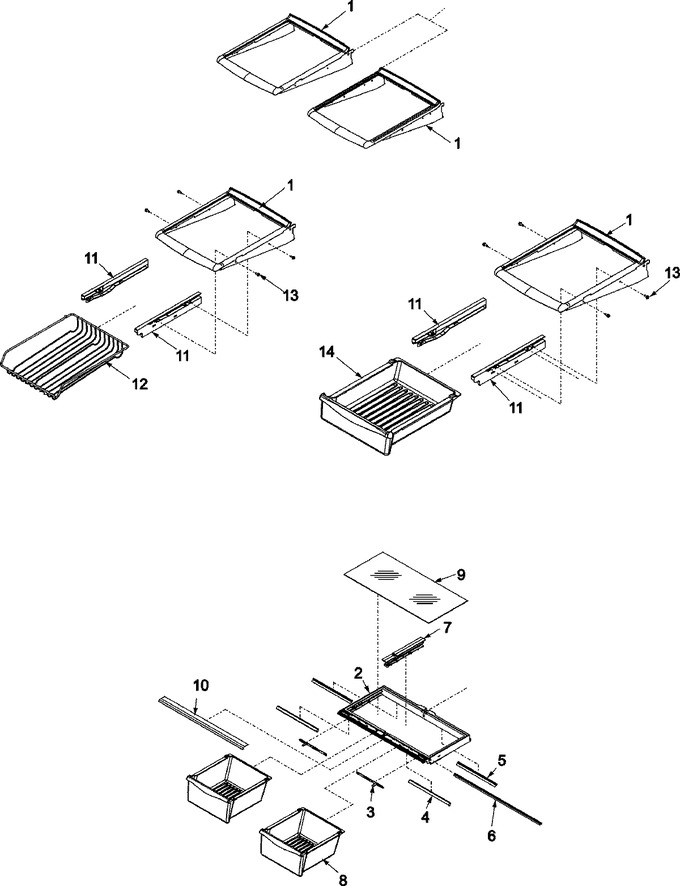

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003707		Shelf, Sta 30	10	Appelez-nous	-
2	WPW10671240		Frame, Crisper   (Replaces: 67001153)	10		Immediately	$ 138.10
3	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)	10		Immediately	$ 7.81
4	67001158		Seal, Front Crisper	10			$ 6.93
5	67002274		Seal, Rear Crisper	10			$ 8.61
6	WP12227302WD		Brace, Crisper E-ct   (Replaces: 67001155)	10			$ 106.29
7	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)	10		Immediately	$ 112.82
8	W10833528		Pan, Crisper   (Replaces: 67002569)	10		Immediately	$ 139.95
9	WP67006877		Glass, Crisper   (Replaces: 67006877)	12		Immediately	$ 209.75
9	WP67006877		Glass, Crisper   (Replaces: 67001156)	10		Immediately	$ 209.75
10	67003884		Extr, Crisper Front	10	Appelez-nous	-
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.40
12	67001301		Rack Can	10	Appelez-nous	-
13	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
13	W11233072		Screw   (Replaces: 67006626)	12		Immediately	$ 14.02
14	WP67001308		Pan, Deli   (Replaces: 67001308)	10		Immediately	$ 138.10
11A	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24
