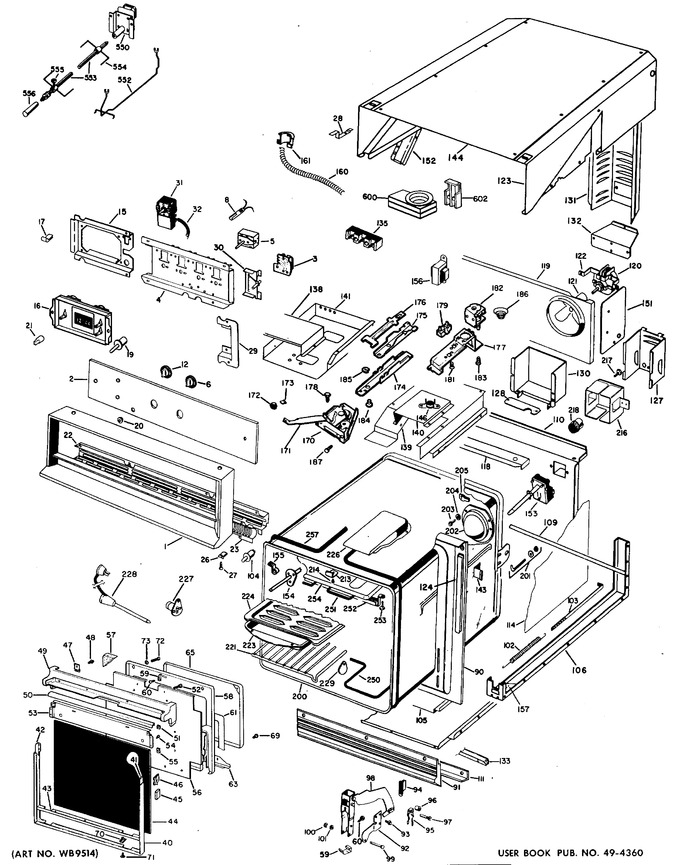

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X3454 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5082 | Switch Oven |
|
- | |||||
| 12 | WB3X483 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 15 | WB3X482 | Knob Thermostat |
|
- | |||||
| 16 | WB19M160CP | Timer Digital (Replaces: WB19X5231) |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X565 | Crystal |
|
- | |||||
| 45 | WB1X540 | Nut |
|
- | |||||
| 51 | WB2X2843 | Clamp Conduit |
|
- | |||||
| 99 | WB2X3405 | Bracket Timer |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm Thermo |
|
- | |||||
| 116 | WB2X3148 | Bracket Circuit Board |
|
- | |||||
| 117 | WB7X596 | Trim |
|
- | |||||
| 118 | WB2X2407 | Bracket Meat Thermo |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 121 | WB7X597 | Grille |
|
- | |||||
| 122 | WB2X2006 | Clamp Harness |
|
- | |||||
| 145 | WB2X3429 | Trim Switch |
|
- | |||||
| 148 | WZ04X0237 | Screw |
|
- | |||||
| 260 | WB10X156 | Hinge Lever Asm Rh |
|
- | |||||
| 260 | WB10X157 | Hinge Lever Asm Lh |
|
- | |||||
| 261 | WB10X120 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X121 | Support Hinge Lh |
|
- | |||||
| 262 | WB2X3166 | Clip Shim |
|
- | |||||
| 263 | WB2X1081 | Pin Hinge |
|
- | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X1460 | Guide Lever Lower Oven |
|
- | |||||
| 267 | WB9X132 | Spring Door |
|
- | |||||
| 268 | WB29X53 | Smoke Eliminator Asm |
|
- | |||||
| 269 | WB2X3388 | Insulator Terminal |
|
- | |||||
| 273 | WB17X167 | Block Term Distribution |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 290 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 313 | WB26X5052 | Motor, Fan |
|
- | |||||
| 314 | WB2X2001 | Blade Fan, Upper |
|
- | |||||
| 350 | WB2X3408 | Insulation Door |
|
- | |||||
| 350 | WB55X405 | Door Liner |
|
- | |||||
| 352 | WB2X2940 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WBO2X1965 | Reflector Foil |
|
- | |||||
| 355 | WB55X429 | Panel Inner |
|
- | |||||
| 358 | WB36X563 | Glass Black |
|
- | |||||
| 359 | WB7X1221 | Trim Door |
|
- | |||||
| 360 | WB55X420 | Spacer Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X159 | Grip Asm Handle |
|
- | |||||
| 380 | WB7X1222 | Brace Top |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 419 | WB2X3407 | Brace Bottom |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X1220 | Trim Top Door |
|
- | |||||
| 427 | WB1X580 | Speednut |
|
- | |||||
| 431 | WB2X3339 | Brace Side Lh |
|
- | |||||
| 431 | WB2X3338 | Brace Side Rh |
|
- | |||||
| 432 | WB2X3341 | Speed Clip |
|
- | |||||
| 438 | WB2X2269 | Stop Insulation |
|
- | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 520 | WB2X2116 | Insulation |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tubeoven |
|
- | |||||
| 520 | WB53X253 | Oven Liner |
|
- | |||||
| 520 | WB2X1125 | Plug Button Cap Tube |
|
- | |||||
| 520 | WB2X1925 | Cover Roto Opening |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 527 | WB44X206 | Mullion Unit |
|
- | |||||
| 528 | WB48X80 | Rack Oven |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 536 | WB20X55 | Receptacle Asm |
|
- | |||||
| 537 | WB20X54 | Probe |
|
- | |||||
| 538 | WB2X3452 | Terminal Insulator |
|
- | |||||
| 650 | UB323 | Bake Unit 208/240v (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 701 | WB15X150 | Handle Latch |
|
- | |||||
| 702 | WB3X434 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3157 | Channel Latch |
|
- | |||||
| 705 | WB2X3158 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 707 | WB2X7301 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 800 | WB26X5053 | Motor Rotisserie |
|
- | |||||
| 801 | WB48X62 | Support Spit |
|
- | |||||
| 802 | WB1X272 | Screw Thumb |
|
- | |||||
| 803 | WB2X1166 | Spit Blade |
|
- | |||||
| 804 | WB2X1167 | Skewer Asm |
|
- | |||||
| 805 | WB15X80 | Handle Spit |
|
- | |||||
| 961 | WZ04X0369 | Screw Mtg Trim |
|
- | |||||
| 2001 | WB55X304 | Extension Side Rh |
|
- | |||||
| 2001 | WB55X305 | Extension Side Lh |
|
- | |||||
| 2002 | WB56X1029 | Frame |
|
- | |||||
| 2004 | WB59X170 | Insulation Guard Lh |
|
- | |||||
| 2005 | WB59X134 | Insulation Guard Rh |
|
- | |||||
| 2006 | WB2X2853 | Spacer |
|
- | |||||
| 2007 | WB7X599 | Trim Bottom |
|
- | |||||
| 2009 | WB59X165 | Guard Wire |
|
- | |||||
| 2010 | WB2X3173 | Cover Vent |
|
- | |||||
| 2011 | WB2X3425 | Support Trim |
|
- | |||||
| 2011 | WB2X2082 | Bracket Trim |
|
- | |||||
| 2012 | WB38X74 | Vent Asm |
|
- | |||||
| 2013 | WB49X331 | Case Top |
|
- | |||||
| 2014 | WB2X2847 | Shield Wire |
|
- | |||||
| 2015 | WB2X2402 | Guard Wire |
|
- | |||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2017 | WB2X2861 | Gusset |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2019 | WB2X3292 | Gasket |
|
- | |||||
| 2020 | WB2X1981 | Brace Latch |
|
- | |||||
| 2021 | WB59X164 | Side Inner |
|
- | |||||
| 2022 | WB59X163 | Channel Bottom |
|
- | |||||
| 2023 | WB55X306 | Bottom Inner |
|
- | |||||
| 2024 | WB49X329 | Back Asm |
|
- | |||||
| 2025 | WB2X2845 | Cover Light |
|
- | |||||
| 2026 | WB2X2842 | Plate Adapter |
|
- | |||||
| 2027 | WB2X3156 | Guard Asm |
|
- | |||||
| 2028 | WB49X268 | Guard Terminal |
|
- | |||||
| 2029 | WB49X223 | Cap Terminal Guard |
|
- | |||||
| 2040 | WB2X3294 | Roller |
|
- | |||||
| 2045 | WB2X3422 | Gasket |
|
- | |||||
| 2046 | WB2X3291 | Bracket Trim |
|
- | |||||
| 2047 | WB2X2846 | Bracket Fan |
|
- | |||||
| 2048 | WR2X3198 | Ring Compression |
|
- | |||||
| 2050 | WB55X303 | Shield Air |
|
- | |||||
| 2051 | WB20X57 | Transformer |
|
- | |||||
| 2067 | WB1X524 | Screw |
|
- | |||||
| 2083 | WB2X1983 | Spring Hinge Lever |
|
- | |||||
| 2306 | WZ10X0017 | Washer |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | 31-0409 | Install Instructions |
|
- | |||||
| 32767 | WB1X284 | Scr 6-20 Ba Ihw 3/8 S |
|
- | |||||
| 32767 | WB1X525 | Washer |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | 49-4532 | Pm Sheet Tip Inge |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WZ07X0029 | Nut |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WB2X3429 | Washer |
|
- | |||||
| 32767 | WB2X3408 | Insulation |
|
- | |||||
| 32767 | WB1X568 | Scr 8-18 Ba Rt 7/16 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WZ05X0184 | Scr 6-20 Bt Phr 3/8 S |
|
- | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X5496 | Scr 10/32 Ihw 3/8 S |
|
- | |||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 32767 | WZ02X0503 | Scr 8-32 M Phr 3/8 S |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WZ06X0086 | Scr 10-24 M Hx 5/16 S |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB2X3251 | Insulation |
|
- | |||||
| 32767 | WBO2X2116 | Insulation |
|
- |
