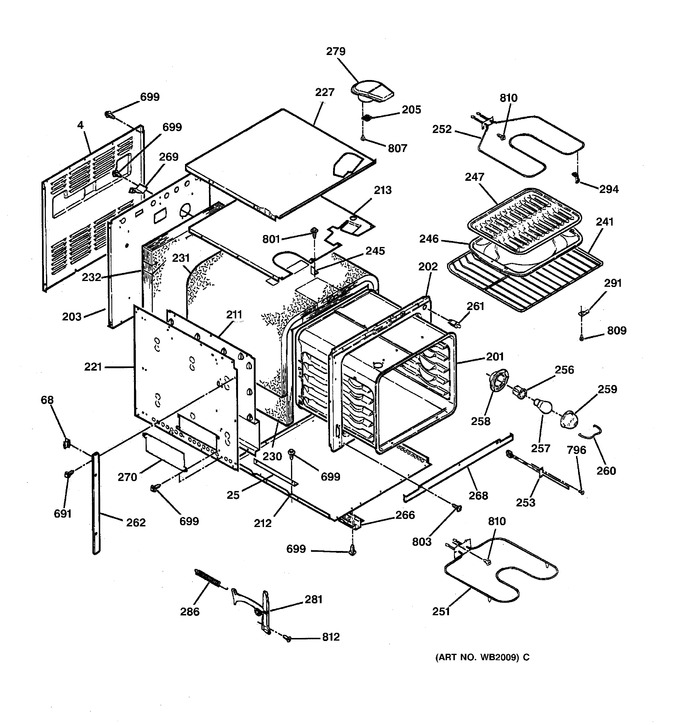

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB63M45 | Back Cab |
|
- | |||||
| 25 | WB2M41 | Bracket Ret Ins |
|
- | |||||
| 68 | WB2M40 | Spacer Frt Trim |
|
- | |||||
| 201 | WB63K5115 | Wrapper Ov Cav Asm |
|
- | |||||
| 202 | WB63K5157 | Front Frame |
|
- | |||||
| 203 | WB63K5118 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 211 | WB2K5180 | Ins Ov Side Retainer |
|
- | |||||
| 212 | WB63K5116 | Bottom Cab |
|
- | |||||
| 213 | WB2K5256 | Top Insulation Retainer |
|
- | |||||
| 221 | WB63K5117 | Side Cabinet |
|
- | |||||
| 227 | WB2K5173 | Ins Cabinet Top Retainer |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrapper-outer |
|
- | |||||
| 232 | WB35K5057 | Insulation-back/bottom |
|
- | |||||
| 241 | WB48X218 | Rack Ovn |
|
- | |||||
| 245 | WB2M30 | Bracket Scroll |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB48K5018 | Broiler Pan Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB21X5318 | Sensor |
|
- | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | BUY LOCAL | Lamp Oven |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Switch Oven Light (jam) (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5496 | I-brow Trim-white |
|
- | |||||
| 262 | WB7K5262 | Trimside (rt Or Lt) Blk |
|
- | |||||
| 266 | WB2X9634 | Channel Btm |
|
- | |||||
| 268 | WB7M12 | Trim Frt Fr Lo (blk) |
|
- | |||||
| 269 | WB2K5164 | Support Light Cup |
|
- | |||||
| 270 | WB2X9642 | Cover Plate |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 286 | WB9K5017 | Ov Dr Spring |
|
- | |||||
| 291 | WB2X9152 | Cover Enam Wipe |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 807 | WB1X1174 | Sc St 8a8 X .625 Tr Ni |
|
- | |||||
| 809 | WG02A00781 | Screw St 10abx.500 Tr Ni (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw 10-32 X 17/32 |
|
- | |||||
| 812 | WB1K5191 | Screw Tc 10-32x.625(zn) |
|
- |
