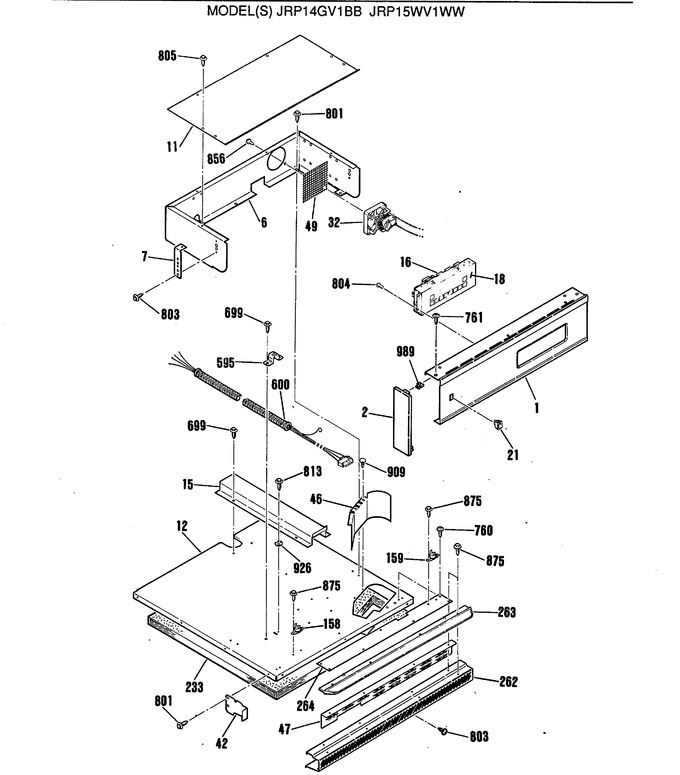

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5550 | Control Panel |
|
- | |||||
| 2 | WB36K5551 | End Cap-rt-white |
|
- | |||||
| 2 | WB36K5552 | End Cap-lt-white |
|
- | |||||
| 6 | WB37K5013 | Control Housing |
|
- | |||||
| 7 | WB2X9658 | Bracket |
|
- | |||||
| 11 | WB37K5014 | Cont Housing Top |
|
- | |||||
| 12 | WB63K5120 | Cabinet Top |
|
- | |||||
| 15 | WB2X9665 | Wire Cover |
|
- | |||||
| 16 | WB27K5140 | Oven Control |
|
- | |||||
| 18 | WB27K5222 | Clock Plate |
|
- | |||||
| 21 | WB24K5036 | Rocker Switch-white |
|
- | |||||
| 32 | WB26X113 | Fan Asm |
|
- | |||||
| 42 | WB34K5102 | Heat Shield-lt |
|
- | |||||
| 42 | WB34K5101 | Heat Shield-rt |
|
- | |||||
| 46 | WB34K5099 | Wire Shield |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 49 | WB7X5016 | Cont Housing Screen |
|
- | |||||
| 158 | WB24K5045 | Limit Switch-to Cab Top |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 233 | WB35K5066 | Cabinet Top Insulation |
|
- | |||||
| 262 | WB7K5125 | Side Trim |
|
- | |||||
| 262 | WB6K5027 | Vent Trim-white |
|
- | |||||
| 263 | WB7K5377 | I-brow Trim-white |
|
- | |||||
| 264 | WB7K5121 | Vent Trim Extension |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5364 | Conduit Wire Asm |
|
- | |||||
| 699 | WB1K5150 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1X1149 | Screw-bright Nickel |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 805 | WB1X1113 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 856 | WG02F04011 | Screw (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 858 | WB1X1413 | Wood Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 909 | WB1X1173 | Rivet |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 989 | WB1K5074 | U Nut |
|
- | |||||
| 999 | WB18K5344 | Harness Wire Door Sw |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | 49-8601 | Use & Care Manual |
|
- | |||||
| 999 | WB18K5455 | Main Wire Harness |
|
- | |||||
| 999 | 31-10118 | Installation Instruction |
|
- | |||||
| 999 | 31-13183 | Mini Manual W/wire Diag. |
|
- |
