SELECT A DIAGRAM

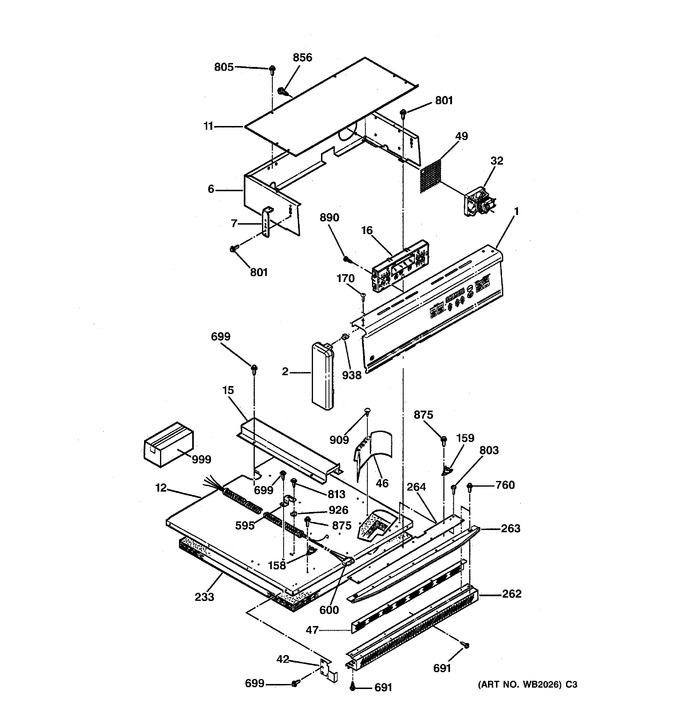

1 - Control Panel
2 - Body Parts
3 - Oven Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5703 | Control Panel W/keypad |
|
- | |||||
| 2 | WB36K5697 | End Cap-lt |
|
- | |||||
| 2 | WB36K5696 | End Cap-rt |
|
- | |||||
| 6 | WB37K5041 | Control Housing |
|
- | |||||
| 7 | WB2K5406 | Control Panel Bracket |
|
- | |||||
| 11 | WB37K5040 | Control Housing Top |
|
- | |||||
| 12 | WB63K5120 | Cabinet Top |
|
- | |||||
| 15 | WB2X9665 | Wire Cover |
|
- | |||||
| 16 | WB27K5299 | Clock/oven Control |
|
- | |||||
| 32 | WB26K5072 | Fan |
|
- | |||||
| 42 | WB34K5249 | Heat Shield |
|
- | |||||
| 46 | WB34K5099 | Wire Shield |
|
- | |||||
| 47 | WB38K5058 | Vent Barrier |
|
- | |||||
| 49 | WB7X5016 | Cont Housing Screen |
|
- | |||||
| 158 | WB24K5045 | Limit Switch-to Cab Top |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 170 | WB1K58 | Screw 8-18 (wh) 1/2 S |
|
- | |||||
| 233 | WB35K5066 | Cabinet Top Insulation |
|
- | |||||
| 262 | WB7K5497 | Vent Trm-stainless Steel |
|
- | |||||
| 262 | WB7K5125 | Side Trim |
|
- | |||||
| 263 | WB7K5494 | I-brow Trim-wht |
|
- | |||||
| 264 | WB7K5121 | Vent Trim Extension |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5364 | Conduit Wire Asm |
|
- | |||||
| 690 | WB1K5167 | Screw |
|
- | |||||
| 691 | WB1K5169 | Trim Screw-white |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1X1149 | Screw-ni |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 803 | WB1K5163 | Screw-wht |
|
- | |||||
| 805 | WB1X1113 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 856 | WG02F04011 | Screw (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw |
|
- | |||||
| 909 | WB1X1173 | Rivet |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 938 | WB1K5209 | Clip |
|
- | |||||
| 999 | 31-10118 | Installation Instruction |
|
- | |||||
| 999 | 31-13328 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 49-8704 | Use Care Manual |
|
- |
