1 - Control Panel

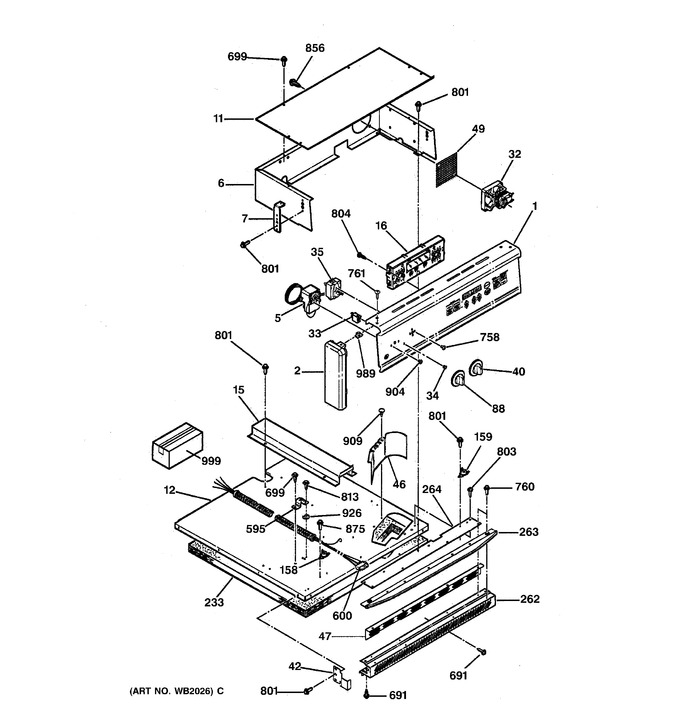

2 - Body Parts
3 - Upper Door
4 - Lower Door
5 - Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5704 | Control Panel W/keypad |
|
- | |||||
| 2 | WB36K5682 | Cap End (rt-blk) |
|
- | |||||
| 2 | WB36K5681 | Cap End (lt-blk) |
|
- | |||||
| 5 | WB20K5011 | Thermostat Oven |
|
- | |||||
| 6 | WB37K5041 | Housing Cntl |
|
- | |||||
| 7 | WB2K5406 | Control Panel Bracket |
|
- | |||||
| 11 | WB37K5040 | Top Cntl Housing |
|
- | |||||
| 12 | WB63K5120 | Top Cabinet |
|
- | |||||
| 15 | WB2X9665 | Cover Wire |
|
- | |||||
| 16 | WB27K5299 | Control Ovn (erciii-b) |
|
- | |||||
| 32 | WB26K5072 | Fan Assembly |
|
- | |||||
| 33 | WB25X92 | Light Indicator |
|
- | |||||
| 34 | WD1X1444 | Lens (red) |
|
- | |||||
| 35 | WB24K5040 | Switch Selector |
|
- | |||||
| 40 | WB3K5254 | Selector Switch Knob-blk |
|
- | |||||
| 42 | WB34K5249 | Heat Shield |
|
- | |||||
| 46 | WB34K5099 | Wire Shield |
|
- | |||||
| 47 | WB38K5058 | Vent Barrier |
|
- | |||||
| 49 | WB7X5016 | Screen Cont Hsg |
|
- | |||||
| 88 | WB3K5253 | Thermostat Knob-blk |
|
- | |||||
| 158 | WB24K5045 | Switch Limit |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 233 | WB35K5066 | Cabinet Top Insulation |
|
- | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 262 | WB7K5496 | I-brow Trim-white |
|
- | |||||
| 262 | WB7K5263 | Trim Side (rt Or Lt)blk |
|
- | |||||
| 263 | WB7K5478 | I-brow Trim-black |
|
- | |||||
| 263 | WB7K5123 | Trim Center I-brow (blk) |
|
- | |||||
| 264 | WB7K5121 | Vent Trim Extension |
|
- | |||||
| 530 | WB48X5107 | Grid Bro Pan |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5225 | Conduit Wire Asm |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 699 | WB1K5150 | Screw |
|
- | |||||
| 752 | WG02A00488 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1K5162 | Screw-black |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 813 | WS01A00445 | Sc Tf 10-32x.437 Hex Gr (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 821 | WB1M5 | Sc Tf 6-32 X .187 Tr Ni |
|
- | |||||
| 856 | WG02F04011 | Screw Tc10-32x.250hexni (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 858 | WB1X1413 | Screw Wood |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 890 | WB1M27 | Screw St 6-20x.437 Tr |
|
- | |||||
| 904 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 909 | WB1X1173 | Rivet Accordian |
|
- | |||||
| 911 | WB1K5124 | Rivet |
|
- | |||||
| 926 | WB1X1260 | Washer Ground |
|
- | |||||
| 935 | WB1K5174 | Washer Alum Shaped |
|
- | |||||
| 941 | WB1X1399 | Lockwasher Ext (#8) |
|
- | |||||
| 989 | WB1K5074 | U Nut |
|
- | |||||
| 999 | WB18K5344 | Harness Wire Door Sw |
|
- | |||||
| 999 | WB18K5646 | Harness Wire Main |
|
- | |||||
| 999 | 31-13335 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 31-10118 | Installation Instruction |
|
- | |||||
| 999 | 49-8706 | Use & Care Manual |
|
- | |||||
| 999 | WB18K5645 | Harness Wire Lock Mtr |
|
- |
