SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Lower Door


5 - Door Lock

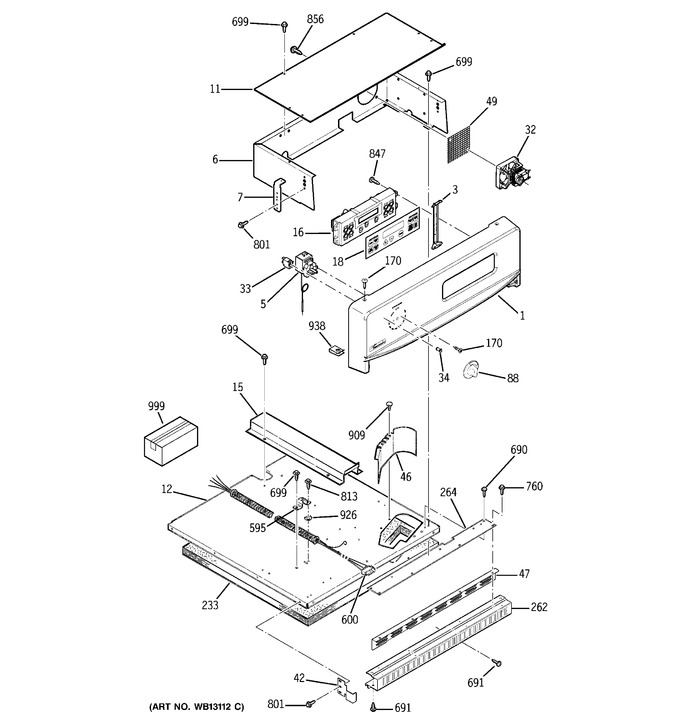

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10758		Panel Cntl Dwo (scr-blk)		Appelez-nous	-
3	WB02T10250		Bracket Cntl Mtg 24		Appelez-nous	-
5	WB20T10013		Atea Thermostat		Appelez-nous	-
6	WB37K5041		Control Housing		Appelez-nous	-
7	WB2K5406		Control Panel Bracket		Appelez-nous	-
11	WB37K5040		Control Housing Top		Appelez-nous	-
12	WB63K5120		Cabinet Top		Appelez-nous	-
15	WB2X9665		Wire Cover		Appelez-nous	-
16	WB27T10494		Control Oven Erc3				$ 405.99
18	WB27T10587		Faceplate Graphics Asm		Appelez-nous	-
32	WB26K5072		Fan		Appelez-nous	-
33	WB25X92		Indicator Light-top Elem		Appelez-nous	-
34	WD1X1444		Lens (red)		Appelez-nous	-
42	WB34K5249		Heat Shield		Appelez-nous	-
46	WB34K5099		Wire Shield		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
49	WB34T10066		Screen Fan		Appelez-nous	-
88	WB03T10057		Knob Thmst Srs (blk)		Appelez-nous	-
170	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
233	WB35K5066		Cabinet Top Insulation		Appelez-nous	-
262	WB7K5491		Vent Trim-black		Appelez-nous	-
262	WB7K5263		Trim Side (rt Or Lt)blk		Appelez-nous	-
264	WB7K5121		Extension Vent Trim		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18K5225		Conduit Wire Asm		Appelez-nous	-
690	WB1K5167		Screw		Appelez-nous	-
691	WB1K5162		Screw-black		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
813	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
847	WB1X1180		Screw-black		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.57
909	WB1X1173		Rivet		Appelez-nous	-
926	WB1X1260		Ground Washer		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
999	49-80234		Manual Use & Care		Appelez-nous	-
999	31-14204		Manual Mini & Wd Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
