SELECT A DIAGRAM

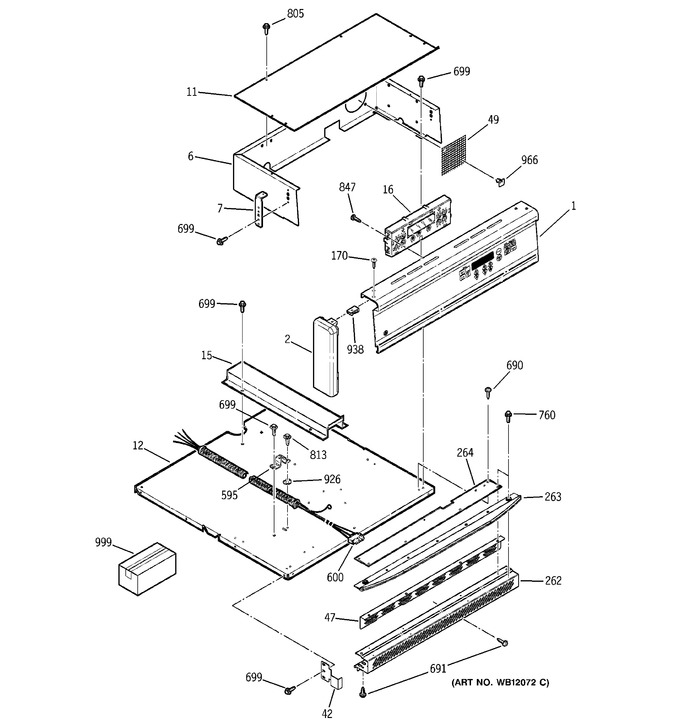

1 - Control Panel


2 - Body Parts


3 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10544		Panel Cntl Asm W/oly		Appelez-nous	-
2	WB36T10065		End Cap Lt-blk		Appelez-nous	-
2	WB36T10064		End Cap Rt-blk		Appelez-nous	-
6	WB37K5041		Control Housing		Appelez-nous	-
7	WB2K5406		Control Panel Bracket		Appelez-nous	-
11	WB37K5040		Control Housing Top		Appelez-nous	-
12	WB63K5120		Cabinet Top		Appelez-nous	-
15	WB2X9665		Wire Cover		Appelez-nous	-
16	WB27T10274		Ovn Control Erc3b		Appelez-nous	-
42	WB34K5249		Heat Shield		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
49	WB7X5016		Cont Housing Screen		Appelez-nous	-
170	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
262	WB7K5262		Vertical Side Trim-blk		Appelez-nous	-
262	WB7K5496		I-brow Trim-white		Appelez-nous	-
263	WB7K5478		I-brow Trim-blk		Appelez-nous	-
264	WB7K5121		Extension Vent Trim		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18K5364		Conduit Wire Asm		Appelez-nous	-
690	WB1K5167		Screw		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
691	WB1K5162		Screw-black		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
805	WB1X1113		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 12.51
926	WB1X1260		Ground Washer		Appelez-nous	-
966	WB2X9573		Clip		Appelez-nous	-
999	31-13902		Manual Mini & Wd Asm		Appelez-nous	-
999	31-10118		Installation Instruction		Appelez-nous	-
999	49-8910		Manual Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
