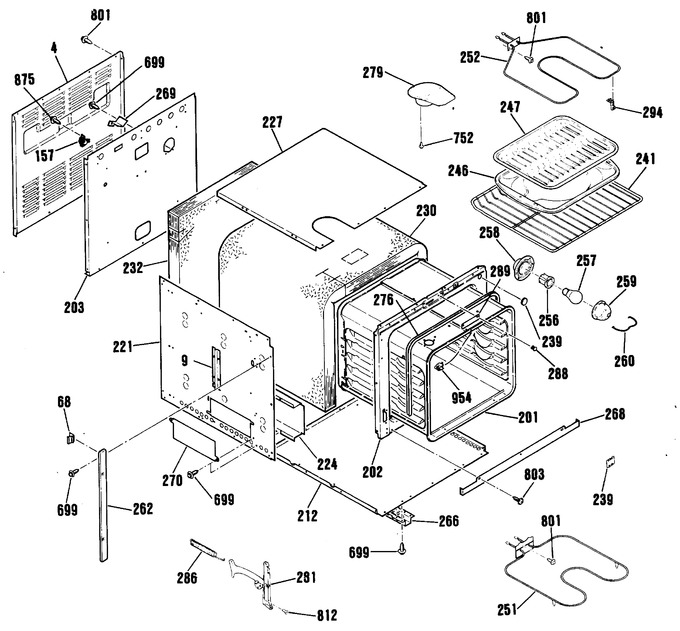

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB63M45 | Cabinet Back |
|
- | |||||
| 68 | WB2M40 | Frt Trim Spacer |
|
- | |||||
| 157 | WB24K5046 | Limit Switch |
|
- | |||||
| 201 | WB63K5115 | Oven Body |
|
- | |||||
| 202 | WB63K5157 | Front Frame |
|
- | |||||
| 203 | WB63K5118 | Main Back |
|
- | |||||
| 212 | WB63K5116 | Cabinet Bottom |
|
- | |||||
| 221 | WB63K5117 | Cabinet Side |
|
- | |||||
| 224 | WB2K5172 | Ins Dr Spring Retainer |
|
- | |||||
| 227 | WB2K5176 | Ins Ov Top Retainer |
|
- | |||||
| 230 | WB35K5041 | Insulation-inner Wrap |
|
- | |||||
| 232 | WB35K5067 | Insulation-back & Btm |
|
- | |||||
| 239 | WB2X9587 | Plug Button-round |
|
- | |||||
| 239 | WB2X9189 | Plug Button-rectangular |
|
- | |||||
| 241 | WB48X218 | Oven Rack |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB48K5018 | Broiler Pad Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 115.36 | |||||
| 256 | WB8X303 | Ov Lamp Holder |
|
- | |||||
| 257 | STD372401 | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 262 | WB7K5122 | Vent Trim-blk |
|
- | |||||
| 262 | WB7K5262 | Vertical Side Trim |
|
- | |||||
| 266 | WB2X9634 | Bottom Channel |
|
- | |||||
| 268 | WB7M12 | Lo Front Trim |
|
- | |||||
| 269 | WB2K5164 | Cup Light Support |
|
- | |||||
| 270 | WB2X9642 | Plate Cover |
|
- | |||||
| 276 | WB32K5019 | Ov Dr Seal |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm-black |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 286 | WB9K5018 | Ov Dr Spring |
|
- | |||||
| 288 | WB3K5043 | Plug Button |
|
- | |||||
| 289 | WB34K5068 | Latch Opening Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 699 | WB1K5150 | Screw |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 803 | WB1X1176 | Screw-black |
|
- | |||||
| 812 | WB1X1133 | Screw |
|
- | |||||
| 875 | WB1K5073 | Screw |
|
- | |||||
| 954 | WB1K5133 | Tstat Bulb Ret Clip |
|
- |
