SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group

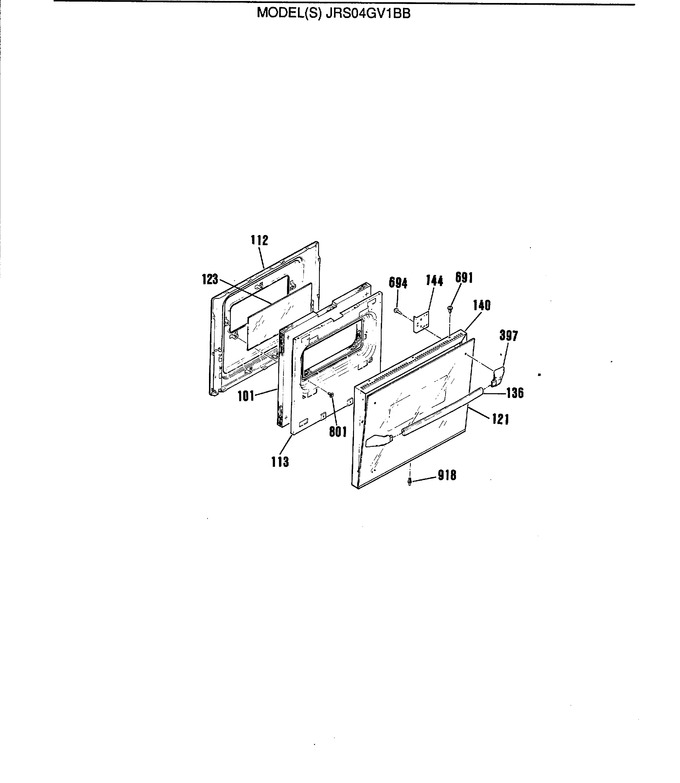

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35K5054		Door Insulation		Appelez-nous	-
112	WB55K5026		Ov Dr Lining Asm		Appelez-nous	-
113	WB2K5159		Ov Dr Ins Retainer		Appelez-nous	-
121	WB57K5256		Glass Ovn Dr Outer (blk)		Appelez-nous	-
123	WB36X779		Glass-door-center		Appelez-nous	-
136	WB15K5087		Oven Door Handle-black				$ 90.78
140	WB56K5117		Oven Door Frame		Appelez-nous	-
144	WB2K5316		Reinforcement Plate		Appelez-nous	-
397	WB15K5069		Door Handle End Cap		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
694	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.57
801	WB1M1		Screw		Appelez-nous	-
918	WB1K5071		Plastic Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
