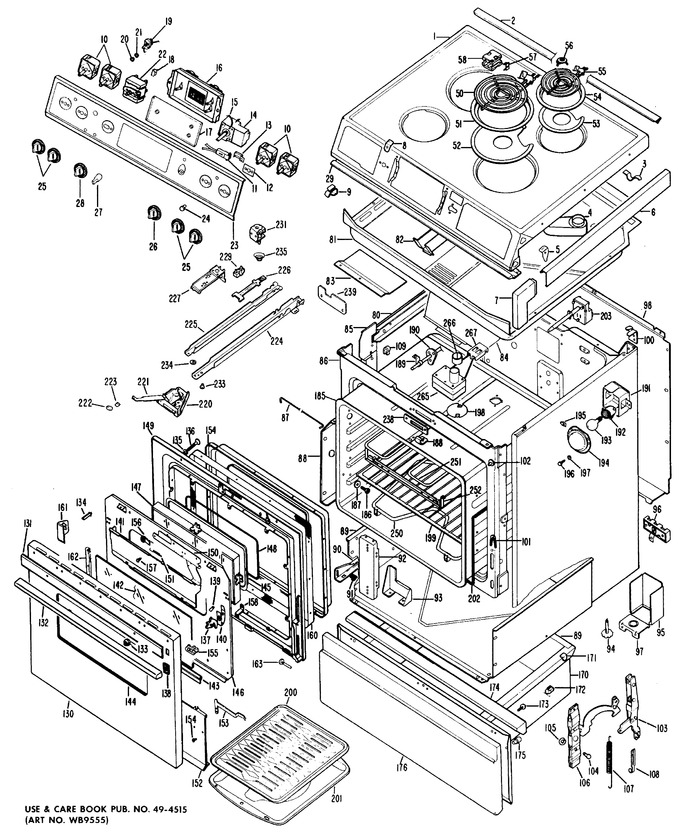

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5269 | Cooktop Ha |
|
- | |||||
| 1 | WB62X5270 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5268 | Cooktop Fa |
|
- | |||||
| 1 | WB62X5266 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5267 | Cooktop Cf |
|
- | |||||
| 2 | WB7X5664 | Trim Rear |
|
- | |||||
| 3 | WB2X995 | Clip Lead |
|
- | |||||
| 4 | WB38X5039 | Body Vent |
|
- | |||||
| 5 | WB2X2988 | Clip Trim |
|
- | |||||
| 5 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 6 | WB7X6666 | Trim Cooktop Lh |
|
- | |||||
| 6 | WB7X6665 | Trim Cooktop Rh |
|
- | |||||
| 7 | WB7X6668 | End Cap Lh |
|
- | |||||
| 7 | WB7X6667 | End Cap Rh |
|
- | |||||
| 7 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 8 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 8 | WB2X6760 | Clip Trim |
|
- | |||||
| 9 | WB2X6761 | Clip Lead |
|
- | |||||
| 10 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X237) |
|
Immediately | $ 60.94 | ||||
| 11 | WB2X1609 | Lamp, Indicator |
|
- | |||||
| 11 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 12 | WB2X3383 | Seal Switch |
|
- | |||||
| 13 | WB2X1185 | Clip Lamp |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 15 | WB2X6762 | Sleeve |
|
- | |||||
| 16 | WB19X5246 | Timer Digital |
|
- | |||||
| 17 | WB36X5396 | Crystal Timer |
|
- | |||||
| 18 | WB2X2901 | Clip Crystal |
|
- | |||||
| 19 | WB24X166 | Switch, Latch Release |
|
- | |||||
| 20 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 21 | WB1X246 | Switch Nut |
|
- | |||||
| 22 | WB22X5090 | Switch, Oven |
|
- | |||||
| 23 | WB7X6675 | Trim, Control |
|
- | |||||
| 24 | WB2X1185 | Clip Lamp |
|
- | |||||
| 24 | WB25X65 | Jewel |
|
- | |||||
| 25 | WB3X490 | Knob Surface Unit |
|
- | |||||
| 26 | WB3X492 | Knob, Thermostat |
|
- | |||||
| 27 | WB3X459 | Knob Timer |
|
- | |||||
| 28 | WB3X491 | Knob Oven Switch |
|
- | |||||
| 29 | WB7X1100 | Deflector |
|
- | |||||
| 50 | WB1X500 | Terminal Screw |
|
- | |||||
| 50 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 51 | WB31X55 | Trim Ring 8" |
|
- | |||||
| 52 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 53 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 54 | WB31X56 | Trim Ring 6" |
|
- | |||||
| 55 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 55 | WB1X500 | Terminal Screw |
|
- | |||||
| 56 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 56 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 57 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 58 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 58 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 80 | WB2X3229 | Barrier Bakeunit Opening |
|
- | |||||
| 80 | WB2X7006 | Clamp Harness |
|
- | |||||
| 81 | WB49X5204 | Cooktop Box |
|
- | |||||
| 82 | WB2X6769 | Channel Wire |
|
- | |||||
| 83 | WB2X6770 | Guard Wire |
|
- | |||||
| 84 | WB2X6764 | Shield Heat Lh |
|
- | |||||
| 84 | WB2X6763 | Shield Heat Rh |
|
- | |||||
| 85 | WB2X6765 | Plate, Barrier R.h. |
|
- | |||||
| 85 | WB2X6766 | Plate, Barrier L.h. |
|
- | |||||
| 86 | WB2X3240 | Spacer |
|
- | |||||
| 86 | WB56X5861 | Frame Front |
|
- | |||||
| 87 | WB2X6767 | Hook Wire |
|
- | |||||
| 88 | WB49X5221 | Guard Upper Rh |
|
- | |||||
| 88 | WB49X5222 | Guard Upper Lh |
|
- | |||||
| 89 | WB49X5156 | Guard Lower |
|
- | |||||
| 90 | WB39X5101 | Drawer Guide Lh |
|
- | |||||
| 90 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 91 | WB2X831 | Slide Guide |
|
- | |||||
| 92 | WB2X6768 | Panel Filler |
|
- | |||||
| 93 | WB2X6187 | Support Oven |
|
- | |||||
| 94 | WB2X6772 | Nut Tee Mtg Leg Front |
|
- | |||||
| 94 | WB1X5533 | Screw Leveling Leg Rear |
|
- | |||||
| 94 | WB1X5519 | Screw Leveling Front |
|
- | |||||
| 95 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 96 | WB17X168 | Terminal Block-power |
|
- | |||||
| 96 | WB2X646 | Plate Ground |
|
- | |||||
| 97 | WB2X6191 | Bracket Knockout |
|
- | |||||
| 98 | WB49X5201 | Cover Back |
|
- | |||||
| 100 | WB2X6184 | Catch Cook Top Mtg Lh |
|
- | |||||
| 100 | WB2X6185 | Catch Cook Top Mtg Rh |
|
- | |||||
| 101 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 102 | WB24X105 | Switch |
|
- | |||||
| 103 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 103 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 103 | WB1X570 | Screw Mtg. Liner |
|
- | |||||
| 103 | WB1X549 | Screw (hex) |
|
- | |||||
| 104 | WG02A00596 | Pin Hinge Door (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 105 | WB2X1082 | Ring Retaining |
|
- | |||||
| 106 | WB10X5092 | Hinge Lever Asm Rh Lh |
|
- | |||||
| 107 | WB9X5076 | Spring Door |
|
- | |||||
| 108 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 109 | WB2X1742 | Clamp Harness |
|
- | |||||
| 130 | WB56X5744 | Door Panel Cf |
|
- | |||||
| 130 | WB56X5745 | Door Panel Fa |
|
- | |||||
| 130 | WB2X6546 | Insulation Door |
|
- | |||||
| 130 | WB56X5743 | Door Panel Wh |
|
- | |||||
| 130 | WB56X5746 | Door Panel Ha |
|
- | |||||
| 130 | WB56X5747 | Door Panel Ad |
|
- | |||||
| 131 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 131 | WB7X1101 | Trim Handle |
|
- | |||||
| 132 | WB15X147 | Handle |
|
- | |||||
| 133 | WB2X6243 | Grommet Handle |
|
- | |||||
| 134 | WB2X6204 | Spacer Panel |
|
- | |||||
| 135 | WB1X119 | Washer Contoured |
|
- | |||||
| 136 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 137 | WB2X5410 | Cam |
|
- | |||||
| 138 | WB7X5486 | Trim |
|
- | |||||
| 139 | WB2X5217 | Cam Link |
|
- | |||||
| 140 | WB9X134 | Cam Spring |
|
- | |||||
| 141 | WB49X5173 | Baffle Window |
|
- | |||||
| 142 | WB36X430 | Crystal Window |
|
- | |||||
| 143 | WB2X2978 | Clip Crystal |
|
- | |||||
| 144 | WB7X1031 | Trim Crystal |
|
- | |||||
| 145 | WB7X722 | Trim Crystal |
|
- | |||||
| 146 | WB55X5218 | Guard Insulation |
|
- | |||||
| 147 | WB36X5244 | Window |
|
- | |||||
| 148 | WB2X6232 | Gasket Crystal |
|
- | |||||
| 149 | WB55X5216 | Lining Door |
|
- | |||||
| 150 | WB2X3045 | Cover - Guard Asm. |
|
- | |||||
| 151 | WB9X128 | Spring - Guard |
|
- | |||||
| 152 | WB55X5217 | Shield Wind |
|
- | |||||
| 153 | WB15X144 | Handle Shield Lh |
|
- | |||||
| 153 | WB15X143 | Handle Shield Rh |
|
- | |||||
| 155 | WB2X3040 | Slide Shield |
|
- | |||||
| 156 | WB9X138 | Spring Strike |
|
- | |||||
| 157 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 158 | WB2X6238 | Bracket Door |
|
- | |||||
| 159 | WB55X5210 | Panel Inner |
|
- | |||||
| 160 | WB2X6547 | Gasket Door |
|
- | |||||
| 161 | WB7X1103 | Trim Door Corner Lh |
|
- | |||||
| 161 | WB7X1102 | Trim Door Corner Rh |
|
- | |||||
| 162 | WB2X3042 | Shield Track - Spring As |
|
- | |||||
| 162 | WB2X3041 | Shield Track - Spring As |
|
- | |||||
| 163 | WB1X558 | Screw Nail Point |
|
- | |||||
| 170 | WB58X5005 | Drawer Asm |
|
- | |||||
| 171 | WB2X840 | Slide Top |
|
- | |||||
| 172 | WB2X841 | Slide Bottom |
|
- | |||||
| 173 | WZ04X0209 | Handle Screw |
|
- | |||||
| 174 | WB15X5100 | Wb15x5124 |
|
- | |||||
| 175 | WB2X6208 | Bumper |
|
- | |||||
| 176 | WB56X5740 | Drawer Panel Fa |
|
- | |||||
| 176 | WB56X5739 | Drawer Panel Cf |
|
- | |||||
| 176 | WB56X5738 | Drawer Panel Wh |
|
- | |||||
| 176 | WB56X5742 | Drawer Panel Ad |
|
- | |||||
| 176 | WB56X5741 | Drawer Panel Ha |
|
- | |||||
| 185 | WB1X525 | Washer |
|
- | |||||
| 185 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 185 | WB53X5070 | Oven Liner |
|
- | |||||
| 185 | WB2X6496 | Insulation |
|
- | |||||
| 185 | WB2X3230 | Cover Plate-jack |
|
- | |||||
| 186 | WB1X570 | Screw Mtg. Liner |
|
- | |||||
| 187 | WB1X119 | Washer Contoured |
|
- | |||||
| 188 | WB2X6209 | Trim Clip |
|
- | |||||
| 189 | WB2X3165 | Hanger-tls |
|
- | |||||
| 190 | WB2X3164 | Plate |
|
- | |||||
| 190 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 191 | WB2X3466 | Guard Lamp |
|
- | |||||
| 192 | WB8X5060 | Lampholder |
|
- | |||||
| 194 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 195 | WB2X1659 | Speednut |
|
- | |||||
| 196 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 197 | WB2X1847 | Washer Mt. Cover |
|
- | |||||
| 198 | WB2X1626 | Baffle |
|
- | |||||
| 199 | WB48X109 | Oven Racks |
|
- | |||||
| 200 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 201 | WB49X88 | Broil Pan |
|
- | |||||
| 202 | WB1X500 | Terminal Screw |
|
- | |||||
| 202 | WB2X3253 | Mullion Unit Clip |
|
- | |||||
| 202 | WB44X186 | Mullion Unit |
|
- | |||||
| 203 | WB2X6215 | Clamp Harness |
|
- | |||||
| 203 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 203 | WB24X175 | Switch, Thermal |
|
- | |||||
| 220 | WB14X36 | Latch Assembly |
|
- | |||||
| 221 | WB15X142 | Handle |
|
- | |||||
| 222 | WB3X322 | Knob Latch |
|
- | |||||
| 223 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 224 | WB2X3174 | Channel Latch |
|
- | |||||
| 225 | WB2X3175 | Channel Locking |
|
- | |||||
| 226 | WB2X3159 | Locking Pawl Asm |
|
- | |||||
| 227 | WB2X3176 | Plate Mounting |
|
- | |||||
| 229 | WB24X183 | Switch, Latch |
|
- | |||||
| 229 | WB2X6912 | Barrier Latch Sw Low Ov |
|
- | |||||
| 231 | WB24X197 | Solenoid |
|
- | |||||
| 233 | WB2X6212 | Pivot Stud |
|
- | |||||
| 234 | WB2X1800 | Retainer Ring |
|
- | |||||
| 235 | WB9X148 | Spring-plunger |
|
- | |||||
| 238 | WB7X552 | Trim Latch |
|
- | |||||
| 239 | WB2X6911 | Bracket Latch |
|
- | |||||
| 250 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 250 | WB1X500 | Terminal Screw |
|
- | |||||
| 251 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 251 | WB1X500 | Terminal Screw |
|
- | |||||
| 252 | WB2X1810 | Support Broil Unit |
|
- | |||||
| 252 | WB2X1543 | Gasket - Broil |
|
- | |||||
| 265 | WB29X5009 | Smoke Eliminator Asm |
|
- | |||||
| 266 | WB2X6771 | Extension, Vent Tube |
|
- | |||||
| 267 | WB1X500 | Terminal Screw |
|
- | |||||
| 267 | WB2X3388 | Terminal Block |
|
- |
