Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X5352 Cooktop Bc Appelez-nous -
2 WB7X6936 Trim Control Appelez-nous -
3 WB2X6823 Barrier Switch Appelez-nous -
3 WB21X5245 Switch, Inf Surface Unit Appelez-nous -
4 WB3X490 Knob Surface Unit Appelez-nous -
5 WB2X1608 Neon Lamp 118v Special Order $ 31.65

5 WB2X3468 Neon Lamp 240v Appelez-nous -
6 WB2X1185 Clip Mtg Lamp Appelez-nous -
7 WB25X65 Jewel Appelez-nous -
9 WB7X6938 End Cap Lh Appelez-nous -
9 WB7X6937 End Cap Rh Appelez-nous -
11 WB22X5100 Switch, Oven Appelez-nous -
12 WB3X491 Knob Oven Switch Appelez-nous -
14 WB2X6762 Sleeve Appelez-nous -
14 WB24X184 Thermostat, Dual Appelez-nous -
15 WB3X493 Knob Thermostat Appelez-nous -
16 WB19X5246 Timer Digital Appelez-nous -
17 WB3X459 Knob Timer Appelez-nous -
18 WB36X5611 Crystal Timer Appelez-nous -
20 WB1X5727 Washer Appelez-nous -
26 WB7X6665 Trim Cooktop Rh Appelez-nous -
26 WB7X6666 Trim Cooktop Lh Appelez-nous -
46 WB2X7745 Bracket End Cap Appelez-nous -
60 WB2X3383 Seal Switch Appelez-nous -
87 WB2X6760 Clip Trim Appelez-nous -
111 WB7X5664 Trim Rear Appelez-nous -
113 WB2X2998 Clip Trim Appelez-nous -
149 WB2X7702 Clip Crystal Appelez-nous -
150 WB30X359 Surface Unit, 6" Appelez-nous -
151 WB32X52 Center Trim 6" Unit Appelez-nous -
152 WB2X2398 Term Block Single Coil Appelez-nous -
152 WB2X1351 Term Block Double Coil Appelez-nous -
153 WB2X574 Clip Insulator Appelez-nous -
154 WB32X36 Unit Pan 6" Appelez-nous -
155 WB31X5015 Trim Ring 6" Appelez-nous -
156 WB30X348 Surface Unit, 8" Appelez-nous -
157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5013 Unit Pan 8" Appelez-nous -
164 WB31X5012 Trim Ring 8" Appelez-nous -
177 WB2X995 Clip Lead Appelez-nous -
183 WB2X6769 Channel Wire Appelez-nous -
248 WB1X500 Terminal Screw Appelez-nous -
250 WB2X7865 Weight Appelez-nous -
250 NOT AVAIL Body Appelez-nous -
251 WB56X6054 Frame Front Appelez-nous -
252 WB2X7864 Panel Filler Appelez-nous -
253 WB49X5204 Cooktop Box Appelez-nous -
254 WB38X5039 Body Vent Appelez-nous -
255 WB7X552 Trim Latch Appelez-nous -
256 WB1X5519 Screw Leveling Front Appelez-nous -
256 WB2X6772 Nut Tee Mtg Leg Front Appelez-nous -
256 WB1X5533 Screw Leveling Leg Rear Appelez-nous -
258 WB39X5010 Guide Drawer Lh Appelez-nous -
258 WB39X5011 Guide Drawer Rh Appelez-nous -
259 WB2X831 Slide Guide Appelez-nous -
260 WB10X5092 Hinge Lever Asm Rh & Lh Appelez-nous -
261 WB10X5091 Support Hinge Lh Appelez-nous -
261 WB10X5090 Support Hinge Rh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X6342 Guide Hinge Lever Appelez-nous -
267 WB9X5073 Spring Door Appelez-nous -
268 WB29X5015 Smoke Elim & Tube Asm Appelez-nous -
272 WB17X5095 Block Terminal Power Appelez-nous -
274 WB2X1908 Knockout Plate Appelez-nous -
275 WB2X7774 Guard Terminal Appelez-nous -
276 WB49X5397 Cover Back Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X5095 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
282 WB24X5138 Switch, Thermal (tls) Appelez-nous -
283 WB2X3163 Gasket Special Order $ 22.50

283 WB2X3164 Plate Appelez-nous -
301 WB2X6770 Guard Wire Appelez-nous -
302 WB2X7694 Bail Appelez-nous -
303 WG02F04576 Glass Oven Lamp   (Replaces: WB36X389) Special Order $ 20.65

306 WB2X6763 Shield Heat Rh Appelez-nous -
306 WB2X6764 Shield Heat Lh Appelez-nous -
308 WB2X6185 Catch Cook Top Mtg Rh Appelez-nous -
308 WB2X6184 Catch Cook Top Mtg Lh Appelez-nous -
309 WB2X6767 Hook Wire Appelez-nous -
310 WB49X5156 Guard Lower Appelez-nous -
348 WB2X646 Plate Ground Appelez-nous -
350 WB55X5322 Door Liner Appelez-nous -
350 WB2X6546 Insulation Door Appelez-nous -
352 WB2X6547 Gasket Door Appelez-nous -
355 WB55X5331 Panel Inner Appelez-nous -
356 WB2X6574 Clip Trim (4) Appelez-nous -
357 WB1X558 Screw Appelez-nous -
358 WB36X5560 Glass Black Appelez-nous -
359 WB7X6892 Trim Door Appelez-nous -
360 WB55X5325 Guard Insulation Appelez-nous -
361 WB1X5735 Screw Appelez-nous -
362 WB1X119 Washer Screw Appelez-nous -
363 WB2X7616 Spacer Panel Appelez-nous -
365 WB15X5155 Handle Door Appelez-nous -
373 WB36X5634 Window Appelez-nous -
386 WB15X5124 Handle Drawer Appelez-nous -
391 WB2X3052 Toggle Appelez-nous -
392 WB2X5217 Cam Link Appelez-nous -
393 WB9X5083 Cam Spring Appelez-nous -
394 WB7X6889 Trim Top Appelez-nous -
397 WB7X6887 End Cap Asm Rh Special Order $ 93.52

397 WZ04X0384 Screw Mtg End Cap Appelez-nous -
397 WB7X6888 End Cap Asm Lh Appelez-nous -
399 WB2X3285 Pad Socket Appelez-nous -
402 WB1X591 Speednut Appelez-nous -
403 WB2X7188 Bracket Window Appelez-nous -
404 WB36X5477 Crystal Window Appelez-nous -
406 WB2X6238 Bracket Door Appelez-nous -
407 WB7X6913 Trim Crystal Appelez-nous -
415 WB2X7608 Brace Top Appelez-nous -
440 WB1X5736 Speednut Appelez-nous -
441 WB2X7610 Brace Side Rh Appelez-nous -
441 WB2X7609 Brace Side Lh Appelez-nous -
442 WB1X5733 Fastener Appelez-nous -
443 WB1X5734 Clip End Cap Appelez-nous -
451 WB2X6740 Bracket Drawer Appelez-nous -
451 WB58X5005 Drawer Asm Appelez-nous -
452 WB2X840 Slide Top Appelez-nous -
453 WB2X841 Slide Bottom Appelez-nous -
454 WB2X6208 Bumper Appelez-nous -
456 WZ04X0345 Screw Appelez-nous -
457 WB56X5799 Drawer Panel Blk Appelez-nous -
458 WB7X5659 Trim Drawer Appelez-nous -
459 WB1X537 Screw Appelez-nous -
520 WB2X6496 Insulation Appelez-nous -
520 WB53X5131 Oven Liner Appelez-nous -
522 WB2X6209 Clip Trim Appelez-nous -
523 WB2X7693 Housing Receptacle Appelez-nous -
526 WB2X3165 Hanger Appelez-nous -
528 WB48X5044 Rack Oven Appelez-nous -
529 WB49X5380 Broil Pan Appelez-nous -
530 WB48X5002 Broiler Pan Rack Appelez-nous -
650 UB592 Bake Unit 208/240v   (Replaces: WB44X5082) In-Stock Immediately $ 49.95

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
700 WB14X5036 Latch Appelez-nous -
701 WB15X5133 Handle Latch Appelez-nous -
702 WB3X5681 Knob Latch Appelez-nous -
703 WG02A00753 Retainer Knob   (Replaces: WB2X2030) Special Order $ 4.20

704 WB2X7707 Channel Latch Appelez-nous -
705 WB2X7710 Channel Locking Appelez-nous -
706 WB2X7708 Pawl Locking Appelez-nous -
706 WB2X7746 Locking Pawl Appelez-nous -
707 WB2X7709 Plate Mounting Appelez-nous -
708 WB24X183 Switch, Latch Appelez-nous -
709 WB24X197 Solenoid Appelez-nous -
710 WB9X148 Spring Appelez-nous -
711 WB2X6212 Pivot Stud Appelez-nous -
712 WB2X1800 Retainer Ring Appelez-nous -
717 WB2X6911 Bracket Latch Appelez-nous -
731 WB2X7711 Bracket Switch Appelez-nous -
732 WB24X5235 Latch Release Switch Appelez-nous -
989 WB1X425 Screw Appelez-nous -
1209 WB2X5165 Clip Cable Appelez-nous -
32767 31-0647 Install Instructions Appelez-nous -
32767 49-4765 Manual Users Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

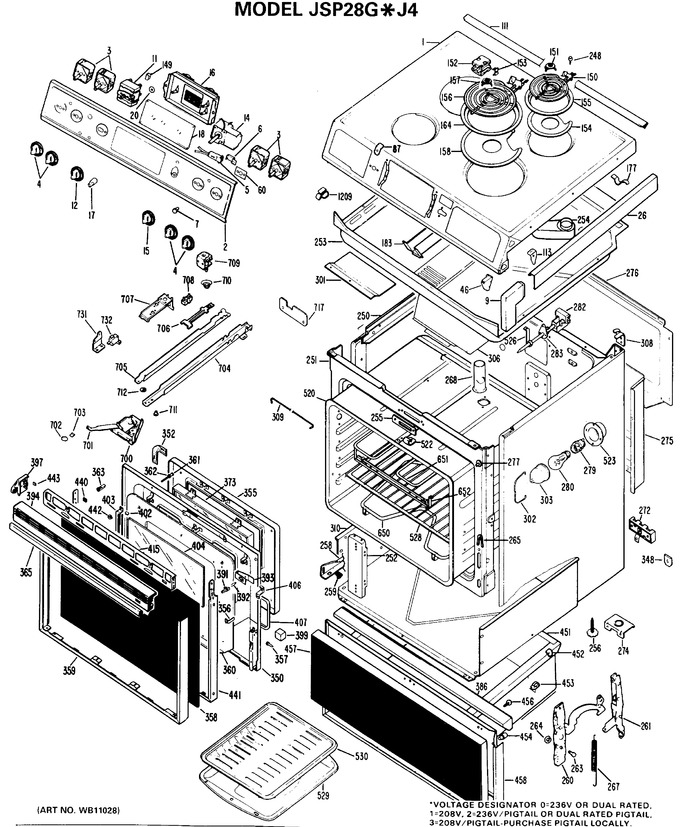

Diagram for JSP28G*J4
