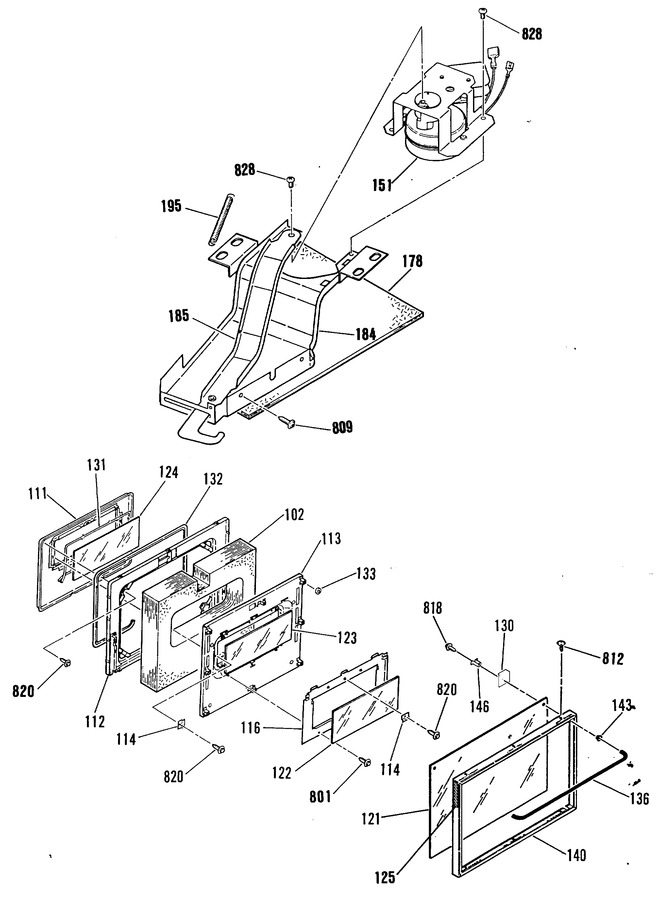

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 102 | WB35K5026 | Oven Door Insulation |
|
- | |||||
| 108 | WB2M46 | Spacer |
|
- | |||||
| 111 | WB55M10 | Ov Dr Lining Plug |
|
- | |||||
| 112 | WB56M1 | Ov Door Lining |
|
- | |||||
| 113 | WB2X9372 | Ov Dr Ins Retainer |
|
- | |||||
| 114 | WB2M1 | Ov Dr Glass Retainer |
|
- | |||||
| 116 | WB2X9178 | Glass Mtg Plate |
|
- | |||||
| 117 | WB2X9384 | Ov Dr Glass Retainer |
|
- | |||||
| 121 | WB57M28 | Ov Dr Outer Glass |
|
- | |||||
| 122 | WB56X1906 | Ov Dr Intermediate Glass |
|
- | |||||
| 123 | WB56X1907 | Ov Door Center Glass |
|
- | |||||
| 124 | WB57M1 | Ov Dr Inner Glass |
|
- | |||||
| 130 | WB2M45 | Handle Support |
|
- | |||||
| 131 | WB2X9168 | Ov Dr Inner Glass Seal |
|
- | |||||
| 132 | WB2X9373 | Ov Dr Gasket |
|
- | |||||
| 133 | WB1X1159 | Felt Washer |
|
- | |||||
| 136 | WB15K5012 | Ov Door Handle |
|
- | |||||
| 140 | WB56K5019 | Dr Frame W/overlay |
|
- | |||||
| 143 | WB2K5100 | Dr Handle Spacer-white |
|
- | |||||
| 146 | WB2M46 | Bridge Spacer |
|
- | |||||
| 151 | WB26X127 | Lock Motor |
|
- | |||||
| 178 | WB35M23 | Lock Motor Insulation |
|
- | |||||
| 184 | WB34M39 | Door Lock Plate |
|
- | |||||
| 185 | WB2X9124 | Lock Lever Asm |
|
- | |||||
| 195 | WB9X243 | Lock Spring |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 812 | WB1X1133 | Trim Screw |
|
- | |||||
| 818 | WB1X1250 | Screw |
|
- | |||||
| 820 | WB1M1424 | Screw |
|
- | |||||
| 828 | WB1X1141 | Screw |
|
- | |||||
| 964 | WB1M39 | Clip |
|
- | |||||
| 999 | 31-1104 | Installation Instruction |
|
- | |||||
| 999 | 31-13044 | Mini Manual/wire Diagram |
|
- | |||||
| 999 | 49-8156 | Owners Manual |
|
- | |||||
| 999 | 31-0932 | Installation Instruction |
|
- | |||||
| 999 | WB18K5106 | Anticipator-thmst Harn |
|
- | |||||
| 999 | WB18K5105 | Clock Wire Harness |
|
- | |||||
| 999 | WB18K5330 | Sensor Wire Harness |
|
- | |||||
| 999 | WB18K5104 | Main Wire Harness |
|
- | |||||
| 999 | WB18M90 | Inf Wire Harness |
|
- | |||||
| 999 | WB18M89 | Main Top Wire Harness |
|
- |
