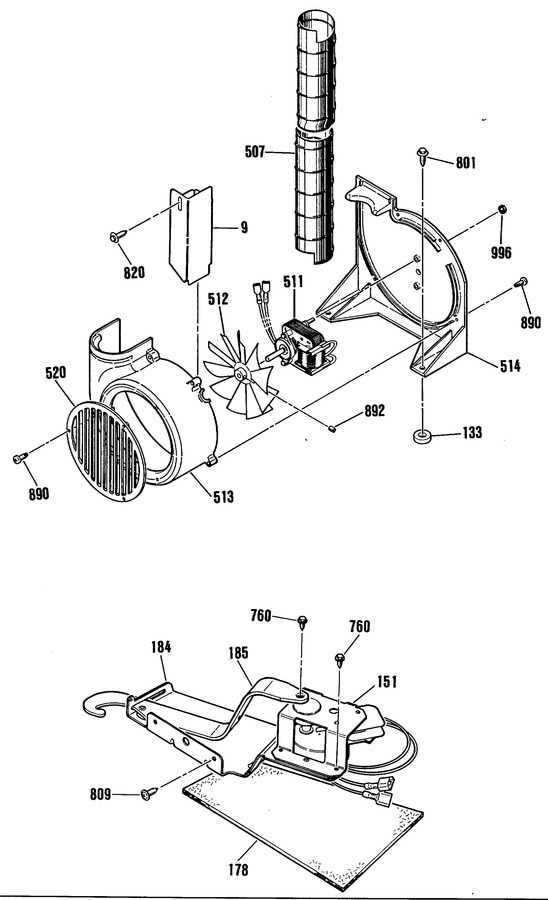

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	WB34K5056		Raceway		Appelez-nous	-
17	WB27M8		Clock Lens		Appelez-nous	-
117	WB2X9384		Ov Dr Glass Retainer		Appelez-nous	-
133	WB1X1159		Felt Washer		Appelez-nous	-
151	WG02F05623		Lock Motor   (Replaces: WB26K5030)				$ 168.52
178	WB35M23		Lock Motor Insulation		Appelez-nous	-
184	WB34K5079		Door Lock Plate		Appelez-nous	-
185	WB15K5016		Lock Lever Asm		Appelez-nous	-
235	WB34M43		Light Switch Shield		Appelez-nous	-
507	WB26M17		Flexible Hose		Appelez-nous	-
511	WB26K5026		Fan Motor		Appelez-nous	-
512	WB26M13		Fan Blade		Appelez-nous	-
513	WB26M18		Blower Housing		Appelez-nous	-
514	WB26M20		Blower Plate		Appelez-nous	-
520	WB26M16		Blower Grill		Appelez-nous	-
770	WB1K5028		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
820	WB1M1424		Screw		Appelez-nous	-
890	WB1M27		Screw		Appelez-nous	-
892	WB1M42		Set Screw		Appelez-nous	-
909	WB1X1173		Rivet		Appelez-nous	-
927	WB1K5111		Washer		Appelez-nous	-
996	WB1M41		Hex Nut		Appelez-nous	-
999	31-13029		Mini Manual/wire Diagram		Appelez-nous	-
999	49-8237		Use & Care Manual		Appelez-nous	-
999	WB18K5245		Main Top Wire Harness		Appelez-nous	-
999	WB18K5249		Motor Wire Harness		Appelez-nous	-
999	31-1112		Installation Instruction		Appelez-nous	-
999	WB18K5248		Main Wire Harness		Appelez-nous	-
