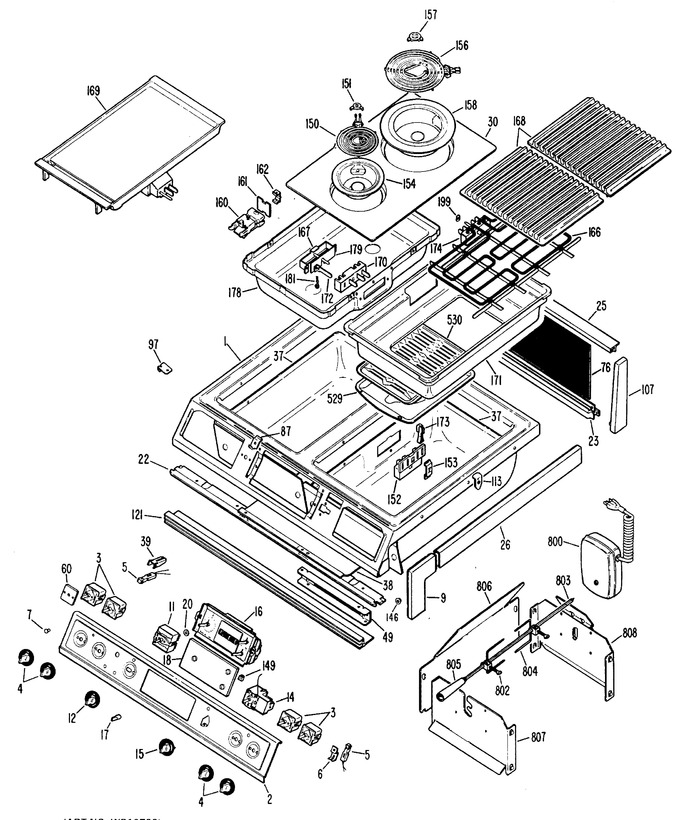

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5287 | Cooktop Bc |
|
- | |||||
| 1 | WB2X7600 | Barrier Cooktop |
|
- | |||||
| 2 | WB7X6956 | Trim Control |
|
- | |||||
| 3 | WB2X6823 | Barrier Switch |
|
- | |||||
| 3 | WB21X5245 | Switch, Inf Surface Unit |
|
- | |||||
| 4 | WB3X5613 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X6735 | End Cap Lh |
|
- | |||||
| 9 | WB7X6734 | End Cap Rh |
|
- | |||||
| 11 | WB22X5100 | Switch, Oven |
|
- | |||||
| 12 | WB3X5617 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 15 | WB3X493 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5246 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob Timer |
|
- | |||||
| 18 | WB36X5611 | Crystal Timer |
|
- | |||||
| 20 | WB1X5727 | Washer |
|
- | |||||
| 22 | WB7X6737 | Deflector |
|
- | |||||
| 23 | WB7X6731 | Trim Lower |
|
- | |||||
| 25 | WB7X6730 | Trim Upper |
|
- | |||||
| 26 | WB7X6665 | Trim Cooktop Rh |
|
- | |||||
| 26 | WB7X6666 | Trim Cooktop Lh |
|
- | |||||
| 30 | WB62X5286 | Plate Top |
|
- | |||||
| 37 | WB49X5371 | Tub & Shield Asm Lh |
|
- | |||||
| 37 | WB49X5373 | Tub & Shield Asm Rh |
|
- | |||||
| 38 | WB49X5237 | Guard Wire |
|
- | |||||
| 39 | WB2X6624 | Bracket Lamp Neon |
|
- | |||||
| 39 | WB2X6239 | Bracket Lamp |
|
- | |||||
| 49 | WB2X7599 | Spacer Frame Lh |
|
- | |||||
| 49 | WB2X7598 | Spacer Frame Rh |
|
- | |||||
| 60 | WB2X3383 | Seal Switch |
|
- | |||||
| 76 | WB36X5553 | Crystal |
|
- | |||||
| 87 | WB2X6760 | Clip Trim |
|
- | |||||
| 97 | WB2X6939 | Bracket Harness Clip |
|
- | |||||
| 107 | WB7X6732 | End Cap Lh |
|
- | |||||
| 107 | WB7X6733 | End Cap Rh |
|
- | |||||
| 113 | WB2X2988 | Clip Trim |
|
- | |||||
| 121 | WB7X6878 | Grille |
|
- | |||||
| 146 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 149 | WB2X7702 | Clip Crystal |
|
- | |||||
| 150 | WB30X218 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB17X5068 | Block Terminal |
|
- | |||||
| 153 | WB2X6938 | Clip Terminal Block |
|
- | |||||
| 154 | WB31X5010 | Pan & Ring 6" Chrome |
|
- | |||||
| 156 | PS240M | Surface Unit, 8" (Replaces: WB30X219) |
|
Immediately | $ 44.95 | ||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB31X5011 | Pan & Ring 8" Chrome |
|
- | |||||
| 160 | WB5X5026 | Spring Contact Pkg |
|
- | |||||
| 160 | WB17X5051 | Receptacle Asm |
|
- | |||||
| 160 | WB1X5355 | Screw Recept Terminal |
|
- | |||||
| 161 | WB2X6171 | Insulator |
|
- | |||||
| 162 | WB2X6172 | Clip Insulator |
|
- | |||||
| 166 | WB30X5077 | Unit Asm Grill, 240v |
|
- | |||||
| 167 | WB17X5066 | Bracket & Pin Asm |
|
- | |||||
| 168 | WB32X5055 | Grill |
|
- | |||||
| 169 | WB30X5080 | Griddle 240v |
|
- | |||||
| 170 | WB2X6953 | Block Terminal |
|
- | |||||
| 171 | WB32X5057 | Reflector Grill Unit |
|
- | |||||
| 172 | WB17X5067 | Terminal |
|
- | |||||
| 173 | WB5X5027 | Contact Terminal Block |
|
- | |||||
| 174 | WB2X6954 | Barrier |
|
- | |||||
| 174 | WB2X6936 | Block Terminal 4 Pin |
|
- | |||||
| 178 | WB49X5234 | Pan Unit |
|
- | |||||
| 179 | WB2X6952 | Barrier |
|
- | |||||
| 181 | WB18X5065 | Lead Hi Temp |
|
- | |||||
| 199 | WB1X5737 | Speednut |
|
- | |||||
| 267 | WB9X5073 | Spring Door |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 529 | WB49X5246 | Broil Pan Small |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 800 | WB26X5078 | Motor Rotisserie |
|
- | |||||
| 802 | WB1X272 | Screw Thumb |
|
- | |||||
| 803 | WB2X7613 | Spit Blade |
|
- | |||||
| 804 | WB2X1167 | Skewer Asm |
|
- | |||||
| 805 | WB15X80 | Handle Spit |
|
- | |||||
| 806 | WB49X5376 | Panel Side |
|
- | |||||
| 807 | WB49X5374 | Supprt End Front |
|
- | |||||
| 808 | WB49X5375 | Support End Rear |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1670 | WB1X365 | Speednut |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB2X1551 | Sleeve |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | 49-4780 | Manual Users |
|
- | |||||
| 32767 | WB1X5505 | Speednut |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 32767 | 31-0436 | Install Instructions |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 32767 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | 31-0554 | Pm Manual Mini |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB1X5570 | Wire Connector |
|
- | |||||
| 32767 | 31-0437 | Install Instructions |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB2X1222 | Pad |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- |
