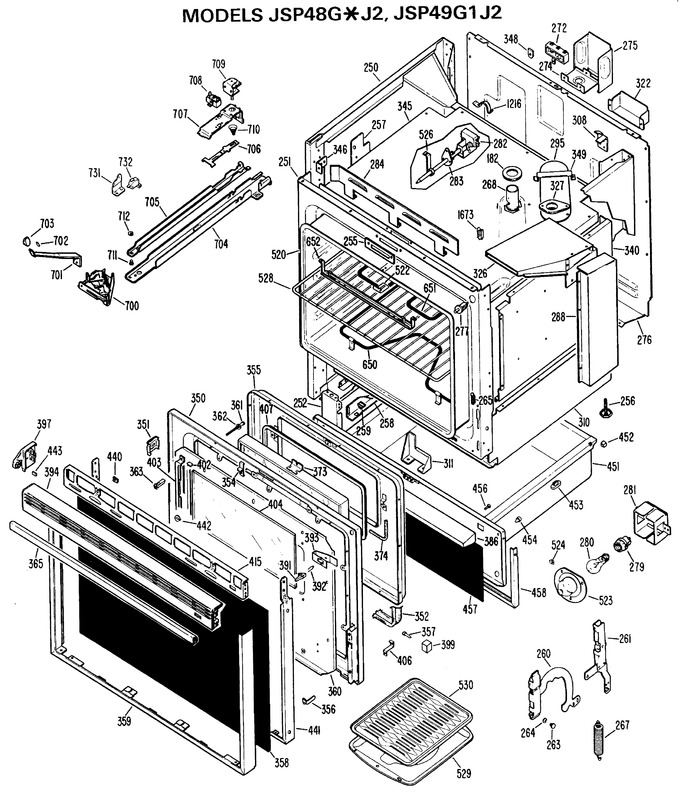

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 182 | WB2X7594 | Gasket Vent |
|
- | |||||
| 250 | WB2X3229 | Barrier Bakeunit Opening |
|
- | |||||
| 251 | WB56X6054 | Frame Front |
|
- | |||||
| 252 | WB2X7592 | Panel Filler |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X5519 | Screw Leveling Front |
|
- | |||||
| 256 | WB1X5533 | Screw Leveling Leg Rear |
|
- | |||||
| 256 | WB2X6772 | Nut Tee Mtg Leg Front |
|
- | |||||
| 257 | WB2X7597 | Heat Sink |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 268 | WB29X5017 | Smoke Elim & Tube Asm |
|
- | |||||
| 274 | WB2X6191 | Bracket Knockout |
|
- | |||||
| 275 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 276 | WB49X5365 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 284 | WB2X6942 | Barrier Wire |
|
- | |||||
| 288 | WB49X5370 | Duct Intake |
|
- | |||||
| 295 | WB38X5061 | Vent Asm |
|
- | |||||
| 308 | WB2X6185 | Catch Cook Top Mtg Rh |
|
- | |||||
| 308 | WB2X6184 | Catch Cook Top Mtg Lh |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 311 | WB2X6187 | Support Oven |
|
- | |||||
| 322 | WB2X7591 | Cover Terminal |
|
- | |||||
| 326 | WB49X5383 | Duct Asm Exhaust |
|
- | |||||
| 327 | WB2X7596 | Gasket Duct |
|
- | |||||
| 340 | WB49X5367 | Guard Side Insulation Rh |
|
- | |||||
| 340 | WB49X5366 | Guard Side Insulation Lh |
|
- | |||||
| 345 | WB49X5368 | Guard Top Insulation |
|
- | |||||
| 346 | WB2X7593 | Bracket Body |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 349 | WB2X7595 | Clamp Vent Body |
|
- | |||||
| 350 | WB2X6546 | Insulation Door |
|
- | |||||
| 350 | WB55X5310 | Door Liner |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5311 | Panel Inner |
|
- | |||||
| 356 | WB2X6574 | Clip Trim (4) |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5560 | Glass Black |
|
- | |||||
| 359 | WB7X6892 | Trim Door |
|
- | |||||
| 360 | WB55X5218 | Guard Insulation |
|
- | |||||
| 361 | WB1X5735 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X7616 | Spacer Panel |
|
- | |||||
| 365 | WB15X5155 | Handle Door |
|
- | |||||
| 373 | WB36X5244 | Window |
|
- | |||||
| 374 | WB2X3048 | Gasket Fiberglass |
|
- | |||||
| 386 | WB15X5124 | Handle Drawer |
|
- | |||||
| 391 | WB2X3052 | Toggle |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 394 | WB7X6889 | Trim Top |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X6887 | End Cap Asm Rh |
|
$ 93.52 | |||||
| 397 | WB7X6888 | End Cap Asm Lh |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 406 | WB2X6238 | Bracket Door |
|
- | |||||
| 407 | WB7X6913 | Trim Crystal |
|
- | |||||
| 415 | WB2X7608 | Brace Top |
|
- | |||||
| 440 | WB1X5736 | Speednut |
|
- | |||||
| 441 | WB2X7610 | Brace Side Rh |
|
- | |||||
| 441 | WB2X7609 | Brace Side Lh |
|
- | |||||
| 442 | WB1X5733 | Fastener |
|
- | |||||
| 443 | WB1X5734 | Clip End Cap |
|
- | |||||
| 451 | WB58X5010 | Drawer Asm |
|
- | |||||
| 451 | WB2X6740 | Bracket Drawer |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X6208 | Bumper |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X6025 | Drawer Panel Blk |
|
- | |||||
| 458 | WB7X6880 | Trim Drawer |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 520 | WB53X5108 | Oven Liner |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5246 | Broil Pan Small |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X47 | Broil Pan Rack Small |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5036 | Latch |
|
- | |||||
| 702 | WB3X5681 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7707 | Channel Latch |
|
- | |||||
| 705 | WB2X7710 | Channel Locking |
|
- | |||||
| 706 | WB2X7746 | Locking Pawl |
|
- | |||||
| 707 | WB2X7709 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 731 | WB2X7711 | Bracket Switch |
|
- | |||||
| 732 | WB24X5235 | Latch Release Switch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 1216 | WB2X3018 | Clip Lead |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- |
