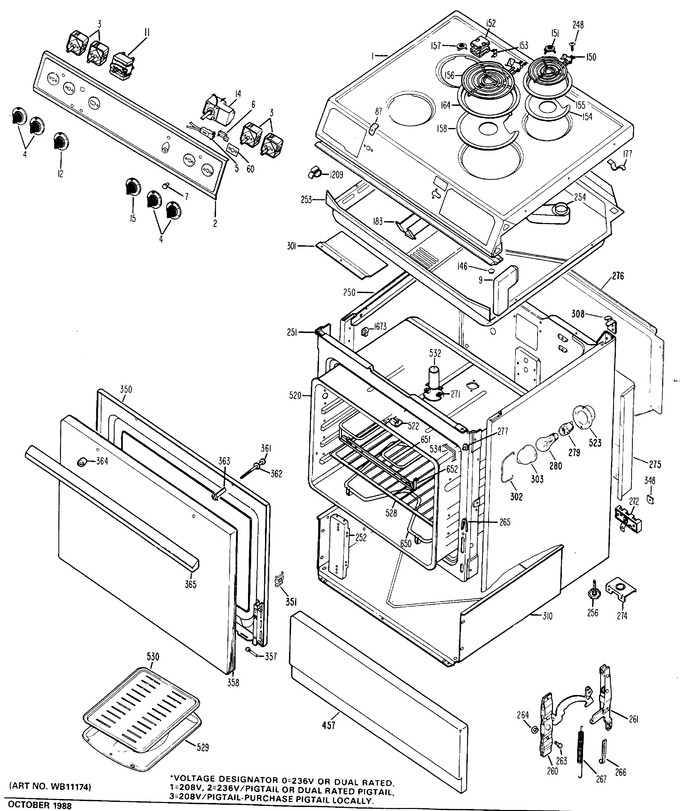

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5280 | Cooktop Ad |
|
- | |||||
| 1 | WB62X5278 | Cooktop Wh |
|
- | |||||
| 1 | WB62X5279 | Cooktop Ha |
|
- | |||||
| 2 | WB7X6686 | Trim Control |
|
- | |||||
| 3 | WB2X6823 | Barrier Switch |
|
- | |||||
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 4 | WB3X5677 | Knob Surface Unit |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 6 | WB2X1185 | Clip Mtg Lamp |
|
- | |||||
| 7 | WB25X65 | Jewel |
|
- | |||||
| 9 | WB7X6687 | End Cap Rh |
|
- | |||||
| 9 | WB7X6688 | End Cap Lh |
|
- | |||||
| 11 | WB22X5097 | Switch, Oven |
|
- | |||||
| 12 | WB3X5680 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5209 | Thermostat |
|
- | |||||
| 14 | WB2X6762 | Sleeve |
|
- | |||||
| 14 | WB2X6274 | Sleeve Cap Tube |
|
- | |||||
| 15 | WB3X5698 | Knob Thermostat |
|
- | |||||
| 60 | WB2X3383 | Seal Switch |
|
- | |||||
| 87 | WB2X6760 | Clip Trim |
|
- | |||||
| 146 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 150 | WB30X359 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 152 | WB2X1351 | Term Block Double Coil |
|
- | |||||
| 152 | WB2X2398 | Term Block Single Coil |
|
- | |||||
| 153 | WB2X574 | Clip Insulator |
|
- | |||||
| 154 | WB32X36 | Unit Pan 6" |
|
- | |||||
| 155 | WB31X5015 | Trim Ring 6" |
|
- | |||||
| 156 | WB30X348 | Surface Unit, 8" |
|
- | |||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB32X5013 | Unit Pan 8" |
|
- | |||||
| 164 | WB31X5012 | Trim Ring 8" |
|
- | |||||
| 177 | WB2X995 | Clip Lead |
|
- | |||||
| 183 | WB2X6769 | Channel Wire |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 250 | NOT AVAIL | Body |
|
- | |||||
| 250 | WB2X7865 | Weight |
|
- | |||||
| 251 | WB56X6054 | Frame Front |
|
- | |||||
| 252 | WB2X6913 | Panel Filler |
|
- | |||||
| 253 | WB49X5204 | Cooktop Box |
|
- | |||||
| 254 | WB38X5039 | Body Vent |
|
- | |||||
| 256 | WB2X6772 | Nut Tee Mtg Leg Front |
|
- | |||||
| 256 | WB1X5519 | Screw Leveling Front |
|
- | |||||
| 256 | WB1X5533 | Screw Leveling Leg Rear |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5100 | Spring Door |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 274 | WB2X1908 | Knockout Plate |
|
- | |||||
| 275 | WB2X7774 | Guard Terminal |
|
- | |||||
| 276 | WB49X5397 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 301 | WB2X6770 | Guard Wire |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 308 | WB2X6185 | Catch Cook Top Mtg Rh |
|
- | |||||
| 308 | WB2X6184 | Catch Cook Top Mtg Lh |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB2X7748 | Insulation |
|
- | |||||
| 350 | WB55X5307 | Door Liner |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X5807 | Door Panel Wh |
|
- | |||||
| 358 | WB56X5811 | Door Panel Ad |
|
- | |||||
| 358 | WB56X5810 | Door Panel Ha |
|
- | |||||
| 361 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X3241 | Handle Spacer |
|
- | |||||
| 365 | WB15X5162 | Handle |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 457 | WB56X5836 | Drawer Panel Ha |
|
- | |||||
| 457 | WB56X5835 | Drawer Panel Wh |
|
- | |||||
| 457 | WB56X5837 | Drawer Panel Ad |
|
- | |||||
| 520 | WB2X6221 | Insulation |
|
- | |||||
| 520 | WB53X5131 | Oven Liner |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 532 | WB2X6773 | Tube Vent |
|
- | |||||
| 534 | WB2X6956 | Gasket Silicone |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 1209 | WB2X5165 | Clip Cable |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | 49-4940 | Manual Users |
|
- | |||||
| 32767 | 31-0818 | Install Instructions |
|
- | |||||
| 32767 | 31-0810 | Install Instr (anti-tip) |
|
- |
