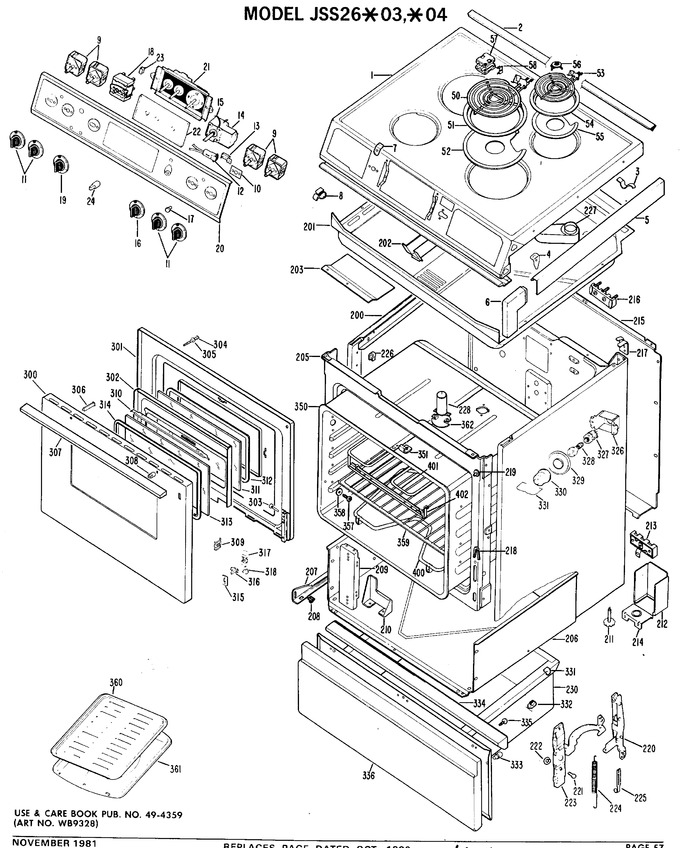

SELECT A DIAGRAM

1 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5271		Cooktop Wh		Appelez-nous	-
1	WB62X5272		Cooktop Cf		Appelez-nous	-
1	WB62X5273		Cooktop Fa		Appelez-nous	-
1	WB62X5274		Cooktop Ha		Appelez-nous	-
1	WB62X5275		Cooktop Ad		Appelez-nous	-
2	WB7X5664		Trim Rear		Appelez-nous	-
3	WB2X995		Clip Lead		Appelez-nous	-
4	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
4	WB2X2988		Clip Trim		Appelez-nous	-
5	WB7X6666		Trim Cooktop Lh		Appelez-nous	-
5	WB7X6665		Trim Cooktop Rh		Appelez-nous	-
6	WB7X6667		End Cap Rh		Appelez-nous	-
6	WB7X6668		End Cap Lh		Appelez-nous	-
6	WB1X271		Nut Mtg Cap		Appelez-nous	-
7	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
7	WB2X6760		Clip Trim		Appelez-nous	-
8	WB2X6761		Clip Lead		Appelez-nous	-
9	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X226)			Immediately	$ 60.94
9	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
9	WB2X6823		Barrier Switch		Appelez-nous	-
10	WB2X3383		Seal Switch		Appelez-nous	-
11	WB3X464		Knob Surface Unit		Appelez-nous	-
12	WB2X1608		Neon Lamp 118v				$ 31.65
13	WB2X1185		Clip Lamp		Appelez-nous	-
14	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
14	WB21X178		Thermostat, L.o.		Appelez-nous	-
15	WB2X6762		Sleeve		Appelez-nous	-
16	WB3X487		Knob Thermostat		Appelez-nous	-
17	WB25X65		Jewel		Appelez-nous	-
18	WB22X31		Switch, Oven L.o.		Appelez-nous	-
18	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
19	WB3X488		Knob Oven Switch		Appelez-nous	-
20	WB7X6672		Trim Control		Appelez-nous	-
21	WB19X146		Timer		Appelez-nous	-
22	WB36X404		Crystal Timer		Appelez-nous	-
23	WB2X2901		Clip Crystal		Appelez-nous	-
24	WB3X459		Knob Timer		Appelez-nous	-
50	WB30X348		Surface Unit, 8"		Appelez-nous	-
50	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
50	WB1X500		Terminal Screw		Appelez-nous	-
51	WB31X55		Trim Ring 8"		Appelez-nous	-
52	WB32X5013		Unit Pan 8"		Appelez-nous	-
53	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
53	WB30X359		Surface Unit, 6"		Appelez-nous	-
53	WB1X500		Terminal Screw		Appelez-nous	-
54	WB31X56		Trim Ring 6"		Appelez-nous	-
55	WB32X36		Unit Pan 6"		Appelez-nous	-
56	WB32X52		Center Trim 6" Unit		Appelez-nous	-
56	WB32X61		Center Trim - 8" Unit		Appelez-nous	-
57	WB2X2398		Term Block Single Coil		Appelez-nous	-
57	WB2X1351		Term Block Double Coil		Appelez-nous	-
58	WB2X574		3 In 1 Insulator Clip		Appelez-nous	-
200	WZ04X0231		Screw Mt. Side		Appelez-nous	-
200	WB2X3229		Barrier Bakeunit Opening		Appelez-nous	-
201	WB49X5204		Cooktop Box		Appelez-nous	-
201	WZ04X0231		Screw Mt. Side		Appelez-nous	-
202	WB2X6769		Channel Wire		Appelez-nous	-
203	WB2X6770		Guard Wire		Appelez-nous	-
205	WB56X1296		Frame		Appelez-nous	-
205	WB56X5861		Frame Front		Appelez-nous	-
205	WB2X6882		Bracket Front Frame		Appelez-nous	-
205	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
206	WB49X5156		Guard Lower		Appelez-nous	-
206	WZ04X0231		Screw Mt. Side		Appelez-nous	-
207	WB39X5011		Guide Drawer Rh		Appelez-nous	-
207	WZ04X0231		Screw Mt. Side		Appelez-nous	-
207	WB39X5010		Guide Drawer Lh		Appelez-nous	-
208	WB2X831		Slide Guide		Appelez-nous	-
209	WB2X6768		Panel Filler		Appelez-nous	-
209	WZ04X0231		Screw Mt. Side		Appelez-nous	-
210	WB2X6187		Support Oven		Appelez-nous	-
211	WB1X5533		Screw Leveling Leg Rear		Appelez-nous	-
211	WB2X6772		Nut Tee Mtg Leg Front		Appelez-nous	-
211	WB1X5519		Screw Leveling Front		Appelez-nous	-
212	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
212	WB2X6655		Cover Terminal Block		Appelez-nous	-
213	WB17X168		Terminal Block-power		Appelez-nous	-
213	WB2X646		Plate Ground		Appelez-nous	-
213	WZ04X0348		Scr 10-16 B Sl 1-1/8 S		Appelez-nous	-
213	WZ04X0231		Screw Mt. Side		Appelez-nous	-
214	WB2X6191		Bracket Knockout		Appelez-nous	-
214	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
215	WZ04X0231		Screw Mt. Side		Appelez-nous	-
215	WB49X5203		Cover Back		Appelez-nous	-
216	WB17X167		Block Term Distribution		Appelez-nous	-
216	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
217	WB2X6184		Catch Cook Top Mtg Lh		Appelez-nous	-
217	WZ05X0211		Screw Mtg. Catch		Appelez-nous	-
217	WB2X6185		Catch Cook Top Mtg Rh		Appelez-nous	-
218	WB2X6342		Guide Hinge Lever		Appelez-nous	-
219	WB24X105		Switch		Appelez-nous	-
220	WB1X5471		Scr 8-18 Ab T 15/32 S		Appelez-nous	-
220	WB1X119		Washer Contoured		Appelez-nous	-
220	WB10X5091		Support Hinge Lh		Appelez-nous	-
220	WB10X5090		Support Hinge Rh		Appelez-nous	-
220	WB1X5497		Scr 10-16 Ab Ihw 1/2 S		Appelez-nous	-
221	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
222	WB2X1082		Ring Retaining		Appelez-nous	-
223	WB10X5092		Hinge Lever Asm Rh Lh		Appelez-nous	-
224	WB9X5073		Spring Door		Appelez-nous	-
225	WB2X2506		Hook Door Spring		Appelez-nous	-
226	WB2X1742		Clamp Harness		Appelez-nous	-
227	WB38X5039		Body Vent		Appelez-nous	-
228	WB2X6773		Tube Vent		Appelez-nous	-
300	WZ04X0231		Screw Mt. Side		Appelez-nous	-
300	WB56X5833		Door Panel Ha		Appelez-nous	-
300	WB56X5832		Panel - Fa		Appelez-nous	-
300	WB56X5831		Panel - Cf		Appelez-nous	-
300	WB2X6833		Insulation Door		Appelez-nous	-
300	WB56X5834		Door Panel Ad		Appelez-nous	-
300	WH56X5830		Panel - Wh		Appelez-nous	-
301	WB55X5172		Inner Door Panel		Appelez-nous	-
302	WB49X384		Guard Insulation		Appelez-nous	-
302	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
303	WB1X558		Screw Nail Point		Appelez-nous	-
304	WZ04X0298		Screw Mtg Handle		Appelez-nous	-
305	WB1X119		Washer Contoured		Appelez-nous	-
306	WB2X6204		Spacer Panel		Appelez-nous	-
307	WB15X147		Handle		Appelez-nous	-
308	WB2X3241		Handle Spacer		Appelez-nous	-
309	WB2X6270		Spacer Door		Appelez-nous	-
310	WB2X3282		Clip Crystal		Appelez-nous	-
310	WB1X590		Scr 8-32 Ca Hx 13/32 S		Appelez-nous	-
311	WB36X526		Crystal Window				$ 140.86
312	WB2X1031		Trim Crystal		Appelez-nous	-
313	WB36X430		Crystal Window		Appelez-nous	-
314	WB7X1031		Trim Crystal		Appelez-nous	-
315	WB7X5486		Trim		Appelez-nous	-
316	WB2X5410		Cam		Appelez-nous	-
317	WB9X134		Cam Spring		Appelez-nous	-
318	WB2X5217		Cam Link		Appelez-nous	-
330	WB58X5005		Drawer Asm		Appelez-nous	-
331	WB2X840		Slide Top		Appelez-nous	-
332	WB2X841		Slide Bottom		Appelez-nous	-
333	WB2X6208		Bumper		Appelez-nous	-
334	WB15X5100		Wb15x5124		Appelez-nous	-
335	WZ04X0209		Handle Screw		Appelez-nous	-
336	WB56X5738		Drawer Panel Wh		Appelez-nous	-
336	WB56X5741		Drawer Panel Ha		Appelez-nous	-
336	WB56X5742		Drawer Panel Ad		Appelez-nous	-
336	WB56X5740		Drawer Panel Fa		Appelez-nous	-
336	WB56X5739		Drawer Panel Cf		Appelez-nous	-
350	WB2X6379		Gasket Silicone (03)		Appelez-nous	-
350	WB2X6221		Insulation		Appelez-nous	-
350	WB2X6956		Gasket Silicone		Appelez-nous	-
350	WB53X5059		Oven Liner		Appelez-nous	-
351	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
351	WB2X6209		Trim Clip		Appelez-nous	-
352	WB2X3447		Bracket Support		Appelez-nous	-
353	WB8X191		Receptacle		Appelez-nous	-
355	WB2X3448		Trim Lamp		Appelez-nous	-
356	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 20.65
357	WB1X570		Screw Mtg. Liner		Appelez-nous	-
358	WB1X119		Washer Contoured		Appelez-nous	-
359	WB48X5044		Oven Rack		Appelez-nous	-
360	WB48X5002		Broiler Pan Rack		Appelez-nous	-
361	WB49X88		Broil Pan		Appelez-nous	-
362	WB2X1626		Baffle		Appelez-nous	-
363	WB2X2885		Bail		Appelez-nous	-
400	UB592		Bake Unit 208/240v   (Replaces: WB44X5082)			Immediately	$ 49.95
400	WZ04X0231		Screw Mt. Side		Appelez-nous	-
400	WB1X500		Terminal Screw		Appelez-nous	-
401	WZ04X0231		Screw Mt. Side		Appelez-nous	-
401	UT316		Broil Unit 208/240v   (Replaces: WB44X180)			Immediately	$ 49.95
401	WB1X500		Terminal Screw		Appelez-nous	-
402	WB2X1452		Support Broil		Appelez-nous	-
402	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
