SELECT A DIAGRAM

01 - Cabinet


02 - Door

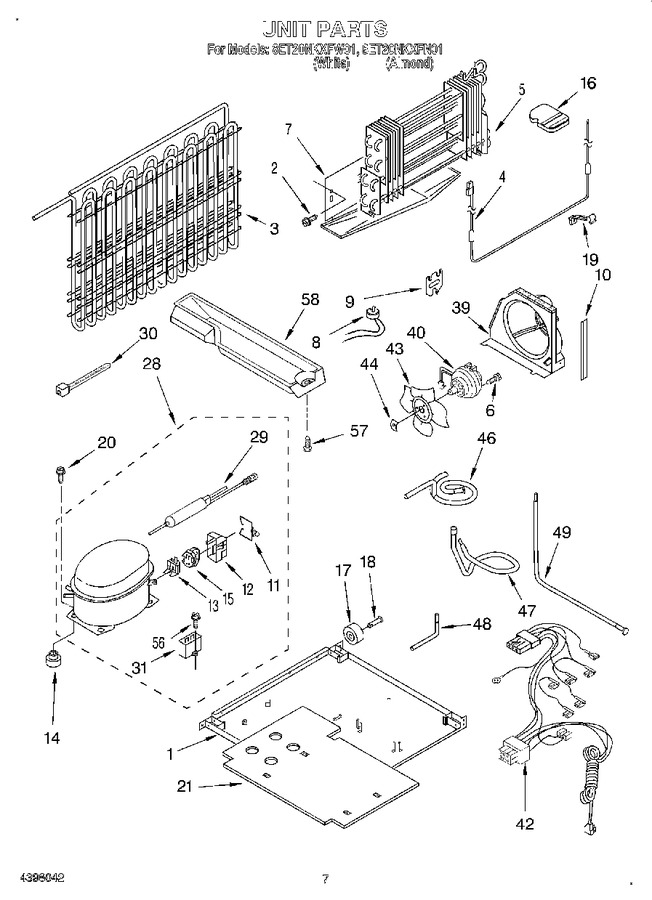

03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188167		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2195400		Condenser		Appelez-nous	-
4	WP2315530		Heater, Defrost   (Replaces: 2166124)				$ 160.18
5	2195390		Evaporator Assy.				$ 228.01
6	WP8281196		Screw   (Replaces: 489499)			Immediately	$ 7.19
7	2172620		Drain Pan		Appelez-nous	-
8	WP4387503		Defrost Bimetal   (Replaces: 2182380)			Immediately	$ 47.89
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	943322		Cover, Strap		Appelez-nous	-
12	1105055		Cover		Appelez-nous	-
13	4387913		Overload (includes Relay) (service)   (Replaces: 4387766)			Immediately	$ 84.39
13	2183409		Overload (includes Relay) (production)				$ 124.23
14	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 14.49
14	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 7.42
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2189906		Support Block		Appelez-nous	-
17	4388239		Roller (2)   (Replaces: 836054)			Immediately	$ 72.37
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	W11661574		Screw   (Replaces: 489473)				$ 13.61
21	2198740		Cover, Unit				$ 36.19
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 86.33
28	W10309988		Compressor (includes Items 12, 13, 15, 29, 31, 38 & 56) (also Order   (Replaces: 2183468)			Immediately	$ 559.32
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
31	WP4387764		Capacitor, Run (service Only)   (Replaces: 4387764)				$ 177.04
39	2198921		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2183437)			Immediately	$ 221.30
42	2189997		Wire Assy. Unit		Appelez-nous	-
43	2190685		Blade, Fan				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
46	2184451		Tube, Discharge		Appelez-nous	-
47	2189173		Tube, Suction		Appelez-nous	-
48	2154109		Tube, Process				$ 72.63
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
56	WP489128		Screw   (Replaces: 488500)				$ 10.88
57	489462		Screw		Appelez-nous	-
58	482278		Start Kit		Appelez-nous	-
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	2189433		Tray, Evaporator		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
