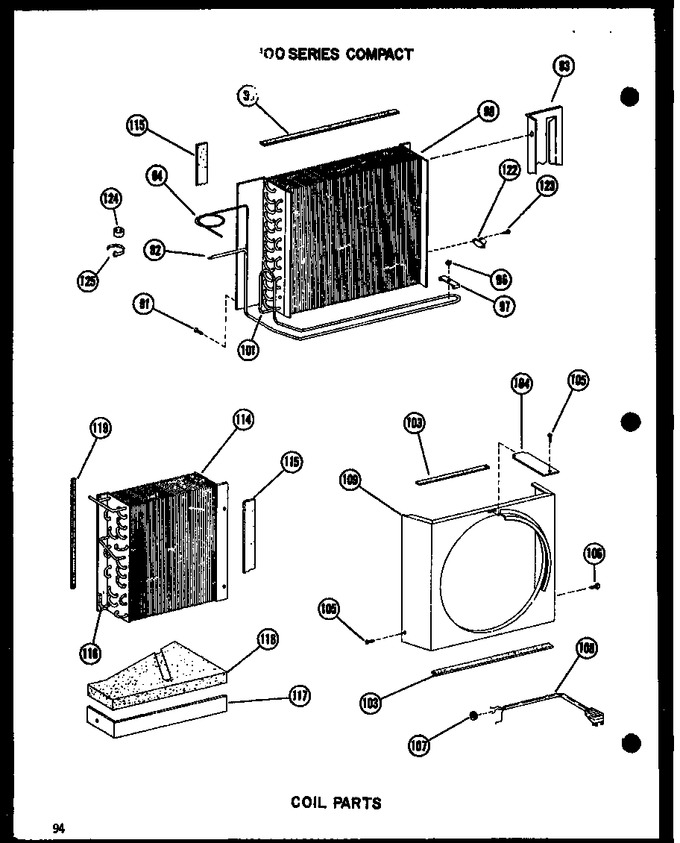

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
91	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
92	B4143101		Strainer		Appelez-nous	-
92	A4097401		Strainer		Appelez-nous	-
93	C5270601		Baffle		Appelez-nous	-
94	D5404401		Capillary		Appelez-nous	-
95	A3030302		Gasket		Appelez-nous	-
96	Y052721		Nut   (Replaces: M0281006)				$ 24.95
97	A4685101		Clamp		Appelez-nous	-
98	D5527501		Condenser Assy		Appelez-nous	-
101	A3318502		Elbow		Appelez-nous	-
102	D5472201		Tube-sub Cooler		Appelez-nous	-
103	A3030302		Gasket		Appelez-nous	-
104	B4792204		Tie Brace		Appelez-nous	-
105	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
106	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
107	A3045502		Grommet		Appelez-nous	-
108	B4113203		Cord Set, Unit Power		Appelez-nous	-
109	C5271301		Fan Shroud		Appelez-nous	-
114	D5479604		Evaporator Coil		Appelez-nous	-
115	A3030331		Gasket-per Ft		Appelez-nous	-
116	A3317902		Elbow		Appelez-nous	-
117	B4766001		Cond Barrier		Appelez-nous	-
118	D5375302		Filler Block		Appelez-nous	-
119	A3030301		Gasket (inch)		Appelez-nous	-
122	B5126003		Thermostat, Defrost		Appelez-nous	-
123	WP59002061		Screw   (Replaces: M0212517)				$ 8.18
