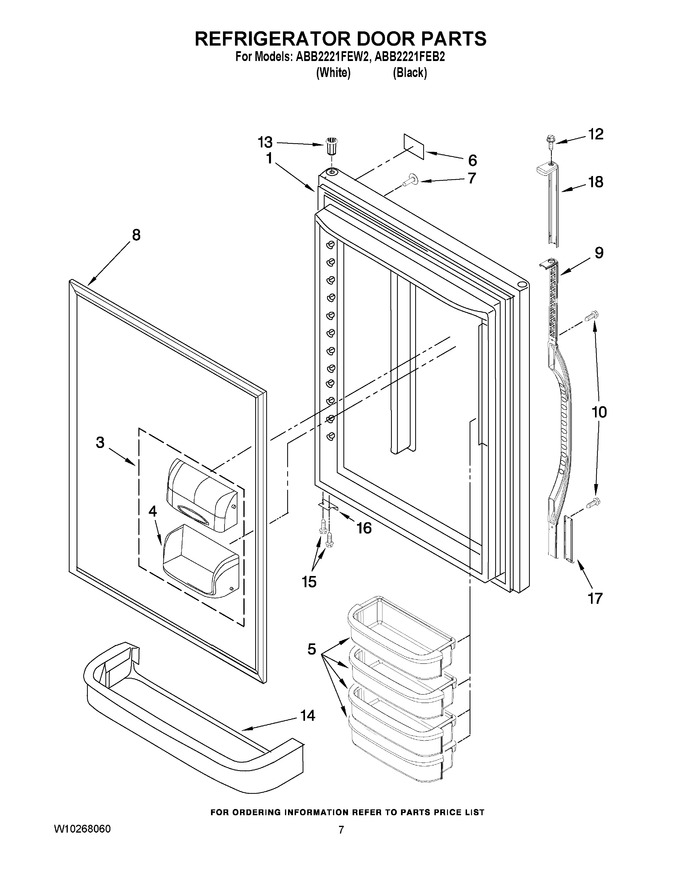

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658502WQ | Refrigerator Door (w/ Insulation) (white) |
|
- | |||||
| 1 | 12658502BQ | Refrigerator Door (w/ Insulation) (black) |
|
- | |||||
| 3 | WP12744905 | Door, Compartment (Replaces: 12744905V) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67001021 | Bucket (medium) (4) (Replaces: 12557204V) |
|
$ 80.90 | |||||
| 6 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 59.75 | ||||
| 7 | WP12246608 | Plug, Button (2) (black) (Replaces: 12246603) |
|
Immediately | $ 7.76 | ||||
| 7 | WP67001130 | Plug, Button (2) (white) (Replaces: 12246601) |
|
Immediately | $ 5.98 | ||||
| 8 | W10443313 | Gasket, Door Magnetic (white) (Replaces: W10164034) |
|
$ 343.82 | |||||
| 8 | WPW10436248 | Gasket, Door Magnetic (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 9 | 12753101W | Handle, Door (white) |
|
- | |||||
| 9 | 12753101B | Handle, Door (black) |
|
- | |||||
| 10 | 60001022 | Screw (Replaces: 12990508) |
|
$ 63.25 | |||||
| 12 | 12248201 | Screw |
|
$ 5.48 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 7.81 | |||||
| 13 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 14 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 107.52 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 16 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 65.99 | |||||
| 16 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 17 | 12660303B | Trim, Handle Lower (black) |
|
- | |||||
| 17 | 12660303W | Trim, Handle Lower (white) |
|
- | |||||
| 18 | 12641702BN | Trim, Handle Upper (black) |
|
- | |||||
| 18 | 12641702WN | Trim, Handle Upper (white) |
|
- |
