SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit

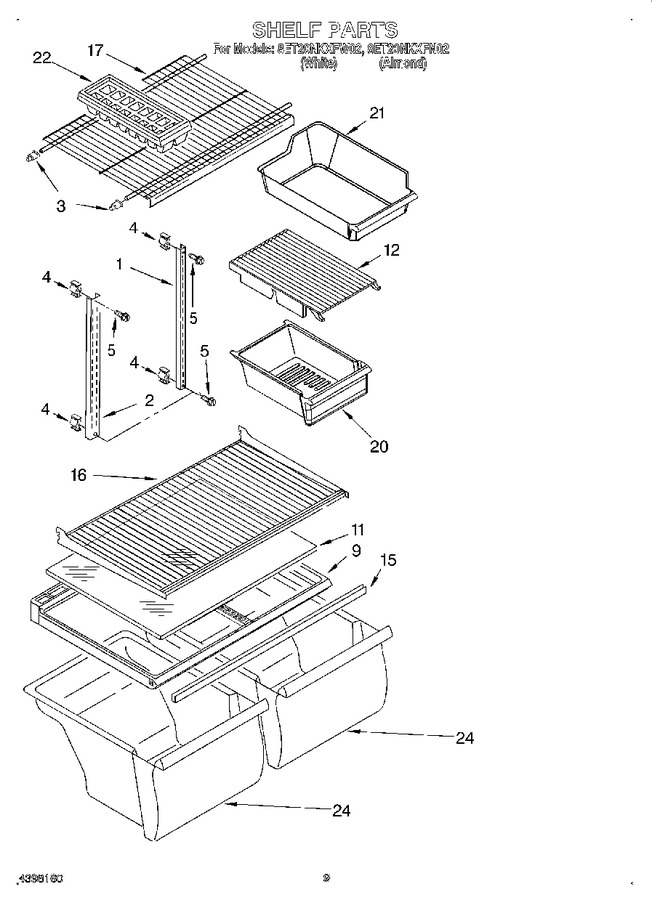

05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
4	520965		Screw, Support				$ 29.86
5	W11544659		Screw   (Replaces: 489415)				$ 13.67
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 265.81
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 251.82
12	2163848		Cover, Meat Pan				$ 71.41
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
16	2195398		Shelf, Full Cantilever (2)		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
20	WPY2200920		Pan, Meat   (Replaces: 2200920)				$ 361.06
21	2254352A		Ice Bucket   (Replaces: 2176219)				$ 55.85
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
24	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 170.66
100	2182576		Feaaturepak (includes 12,20) Also See Dr. Pg.		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2195481		Service & Wiring Sheet		Appelez-nous	-
	LIT2195465		Use & Care Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98

    View Diagram in Separate Window       Print Part List
