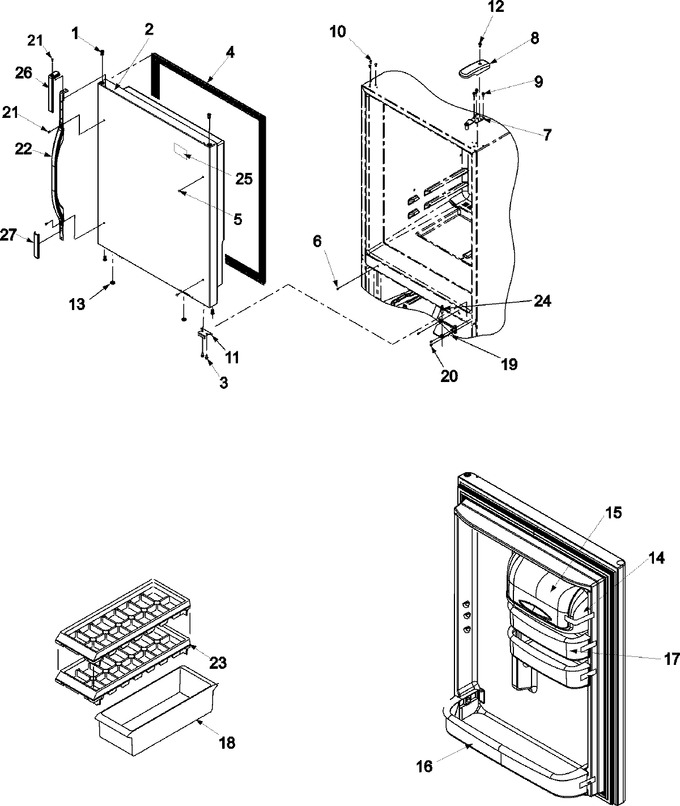

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 7.81 | ||||
| 2 | 67001009 | Ref Dr Foam Assy (wht) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 4 | W10443313 | Gasket, Ref Door (wht) (Replaces: 67003552) | 10 |
|
$ 343.82 | ||||
| 5 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 5.98 | |||
| 6 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 21.28 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 65.99 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) | 10 |
|
Immediately | $ 107.52 | |||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 80.90 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 66.47 | ||||
| 19 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) | 10 |
|
Immediately | $ 8.00 | |||
| 20 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.02 | ||||
| 21 | WP67006197 | Screw, Hi Lo (Replaces: 67004277) | 10 |
|
$ 8.06 | ||||
| 22 | 67003129 | Handle, Ref Dr (wht) | 10 |
|
$ 79.41 | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 45.56 | |||
| 24 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) | 10 |
|
$ 8.27 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| 26 | 67005133 | Trim, Top Handle (bsq) | 10 |
|
- | ||||
| 26 | 67005131 | Trim, Top Handle (wht) | 10 |
|
$ 5.83 | ||||
| 27 | 67005134 | Trim, Btm Handle (wht) | 10 |
|
$ 6.77 |
