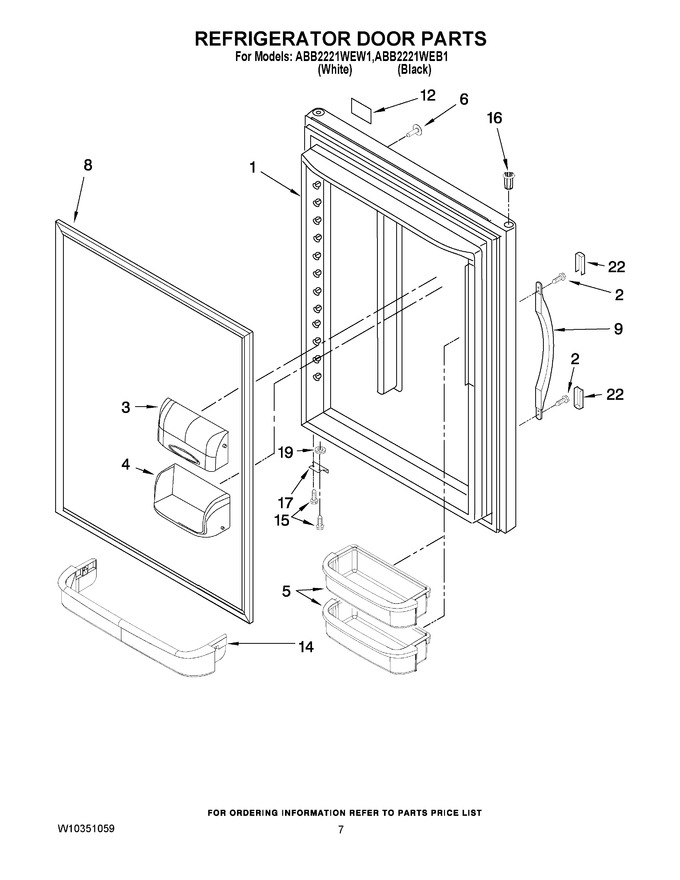

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107501W | Refrigerator Door (w/liner) (white) |
|
- | |||||
| 1 | 13107501B | Refrigerator Door (w/liner) (black) |
|
- | |||||
| 2 | 60001022 | Screw (2) (Replaces: 12990508) |
|
$ 66.41 | |||||
| 3 | WP67003637 | Door-dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket, Medium (3) (Replaces: 12557204V) |
|
$ 84.95 | |||||
| 6 | WP67001130 | Plug, Handle Hole (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 6 | WP12246608 | Plug, Handle Hole (black) (Replaces: 12246603) |
|
Immediately | $ 8.15 | ||||
| 8 | WPW10436248 | Door Gasket, Magnetic (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 8 | W10443313 | Door Gasket, Magnetic (white) (Replaces: W10164034) |
|
$ 361.01 | |||||
| 9 | 2186649BN | Door Handle (black) |
|
- | |||||
| 9 | 2186649W | Door Handle (white) |
|
$ 70.49 | |||||
| 12 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 14 | 67001019 | Retainer, Ref Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 15 | WP98165 | Screw (2) (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 16 | WP67004977 | Bushing (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 17 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 19 | WPM0274057 | Shim, Non Metal (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 22 | 2193353BN | Trim, Handle (black) |
|
- | |||||
| 22 | WP2193353W | Trim, Handle (white) (Replaces: 2193353WN) |
|
$ 8.52 |
