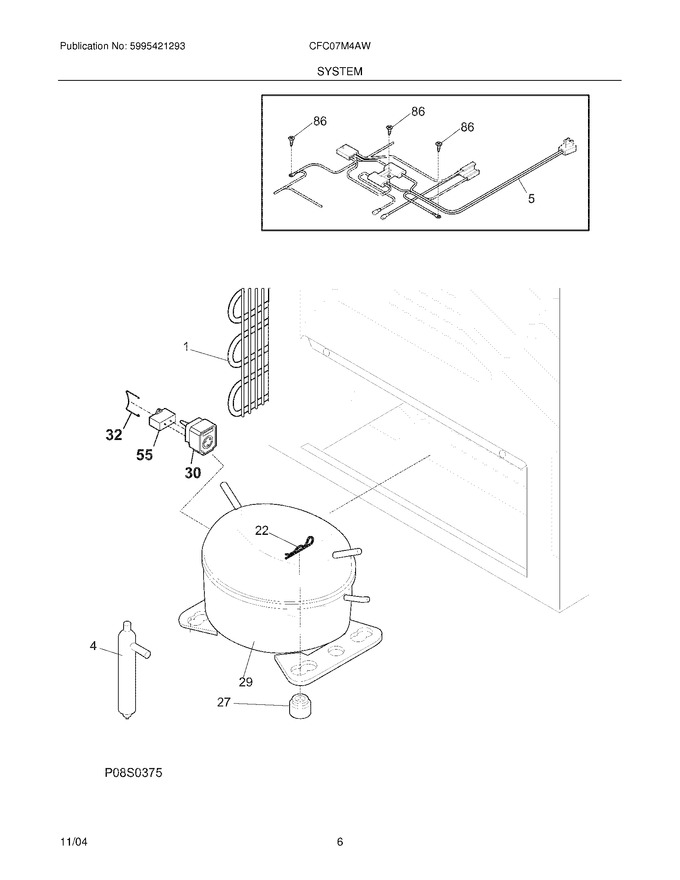

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 14.46 | |||||
| 30 | 216954200 | Controller,compressor ,5 Speed |
|
$ 70.88 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 18.90 | |||||
| 86 | 216707700 | Screw,8-18 X 1/2 |
|
- | |||||
| F1 | 5300120780 | Condenser |
|
- | |||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 216966300) |
|
$ 807.12 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 35.19 | ||||
| F5 | 216952200 | Harness-main |
|
$ 29.09 | |||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 83.06 | ||||
| NI | 216707800 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- |
