01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional

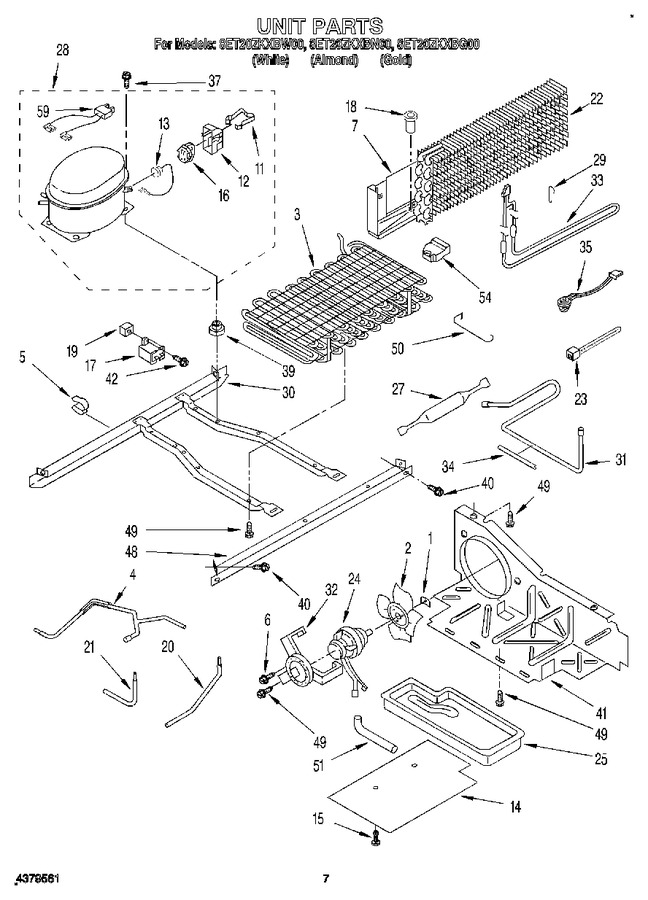

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.59
2	851732		Fan, Blade		Appelez-nous	-
3	2164513		Condenser Assy.		Appelez-nous	-
4	2162475		Tube, Discharge		Appelez-nous	-
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 12.34
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Cover, Terminal		Appelez-nous	-
13	4387535		Overload (service)   (Replaces: 2154760)				$ 171.95
13	4387535		Overload (production)   (Replaces: 2159596)				$ 171.95
14	2160505		Cover, Unit Lower		Appelez-nous	-
15	489396		Clip				$ 10.13
16	4318083		Relay				$ 116.28
17	2169137		Running Capacitor		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
20	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
21	2154109		Tube, Process				$ 68.63
22	2153978		Evaporator		Appelez-nous	-
23	WPW10339879		Strap   (Replaces: 2155774)				$ 7.47
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 98.23
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 51.42
28	W10439652		Compressor (includes Items 11, 12, 13, 16, 17 & 59) (also Order)   (Replaces: 2154557)				$ 397.98
28	876765		Tube Kit				$ 81.59
29	2149120		Support, Heater		Appelez-nous	-
30	2160498		Unit Mounting Frame		Appelez-nous	-
31	2162472		Tube, Suction		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
34	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 19.19
35	WP4387503		Defrost Bimetal   (Replaces: 2149641)			Immediately	$ 43.10
37	876811		Screw   (Replaces: 489373)				$ 7.01
39	876811		Grommet   (Replaces: 1100826)				$ 7.01
40	489340		Screw		Appelez-nous	-
41	2169417		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.54
50	1105612		Guard, Fan				$ 38.35
51	2154119		Drain Extension		Appelez-nous	-
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
59	876764		Valve, Access(3/16``)			Immediately	$ 86.33
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 123.53
59	WP2172890		Wire, Connector   (Replaces: 1127675)				$ 7.66
59	978026		Valve, Access (5/16``)			Immediately	$ 121.04
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
59	978028		Valve, Access (1/2)		Appelez-nous	-
