SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)


7 - Installation Parts

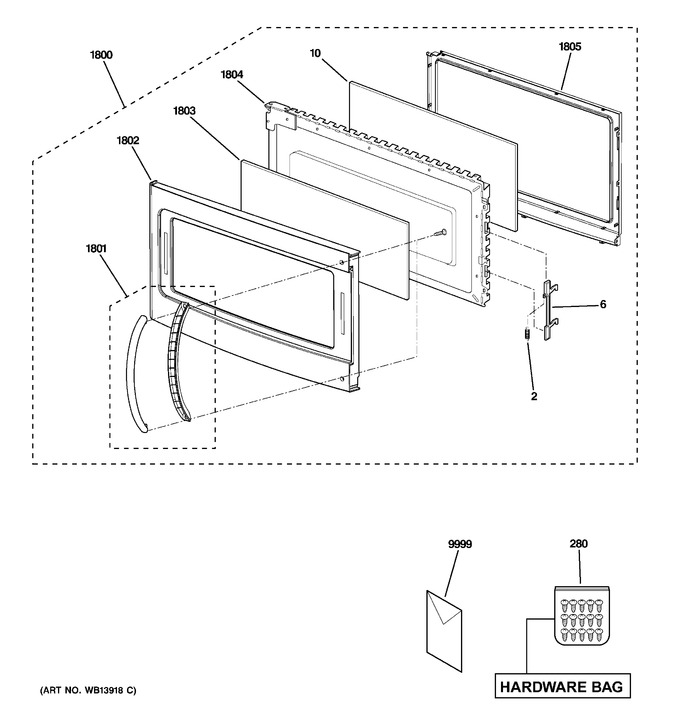

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB09X10017		Spring Latch Door		Appelez-nous	-
6	WB02X11096		Latch		Appelez-nous	-
10	WB36X10318		Seal Tape		Appelez-nous	-
280	WB01X10305		Otr Hardware Asm Bag		Appelez-nous	-
1800	WB56X10701		Door Asm		Appelez-nous	-
1801	WB15X10215		Handle Asm		Appelez-nous	-
1802	WB55X10844		Panel Door		Appelez-nous	-
1803	WB36X10327		Window		Appelez-nous	-
1804	WB55X10814		Door Frame Asm		Appelez-nous	-
1805	WB55X10845		Cover Choke		Appelez-nous	-
9999	49-40528		Use & Care		Appelez-nous	-
9999	31-40458		Mini Manual		Appelez-nous	-
9999	49-40529		Instructions Install		Appelez-nous	-
9999	WG02F04354		Charcoal Filter   (Replaces: WB02X10776)				$ 14.29

    View Diagram in Separate Window       Print Part List
