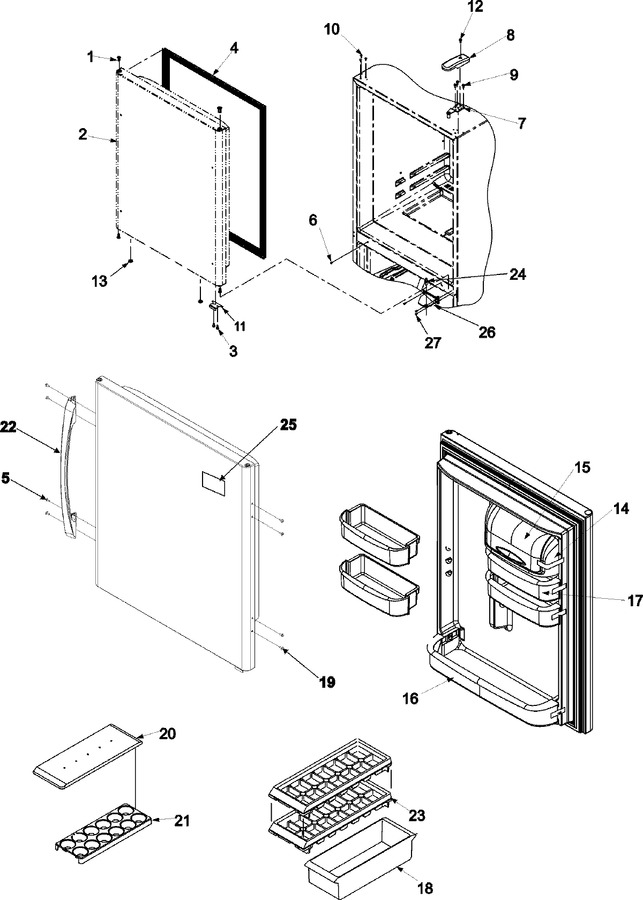

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 22.10 | ||||
| 2 | 67007081 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.57 | ||||
| 4 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: 67003553) | 10 |
|
$ 286.97 | ||||
| 6 | WP489349 | Screw, Tf Hex/washer Hd (Replaces: 67005822) | 10 |
|
Immediately | $ 8.43 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 47.13 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 49.71 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 10.58 | ||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 8.15 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.75 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.55 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 11.21 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 113.99 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) | 10 |
|
Immediately | $ 112.90 | |||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 84.95 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | WP12246610 | Plug, Handle Hole (stnls) (Replaces: 12246606) | T |
|
Immediately | $ 8.15 | |||
| 20 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 21 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 22 | 67006805 | Handle, Face Mount (blk) | 10 |
|
- | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 47.84 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 8.78 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 62.74 | |||
| 26 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 167.35 | ||||
| 27 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.72 |
