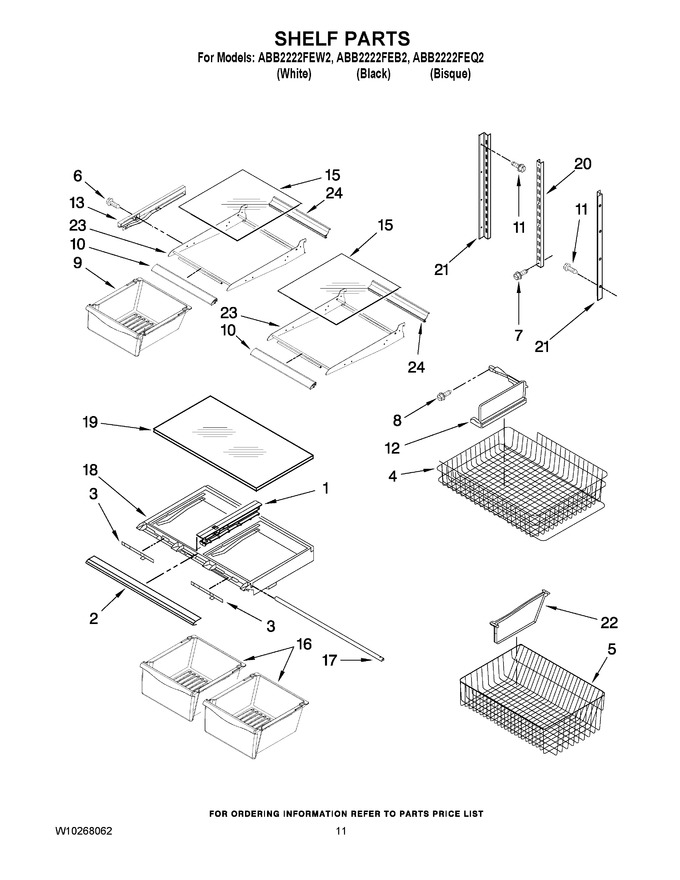

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 118.46 | ||||
| 2 | W10231341 | Trim, Crisper |
|
$ 50.13 | |||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 12530805) |
|
Immediately | $ 8.20 | ||||
| 4 | 12896402 | Basket, Freezer Upper |
|
- | |||||
| 5 | W10143561 | Basket, Freezer (lower) |
|
- | |||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 7 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.79 | |||||
| 8 | 12990601 | Screw |
|
- | |||||
| 9 | WP67001314 | Pan, Deli (Replaces: 12656404) |
|
$ 163.10 | |||||
| 10 | 10459927 | Trim, Front (4) |
|
- | |||||
| 11 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | 12693802 | Divider, Top |
|
- | |||||
| 13 | WP67001054 | Glide Lh (Replaces: 12656601) |
|
Immediately | $ 8.82 | ||||
| 13 | WP67001053 | Glide Rh (Replaces: 12656602) |
|
Immediately | $ 9.24 | ||||
| 15 | 10370099 | Glass, Shelf (4) |
|
- | |||||
| 16 | WP67002633 | Crisper (2) (Replaces: 12530505) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 12530401) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 20 | 67001073 | Ladder, Center (Replaces: 12435807) |
|
$ 56.89 | |||||
| 21 | 12710602 | Ladder, Side |
|
- | |||||
| 22 | 12659608 | Divider, Basket Lower |
|
- | |||||
| 23 | 10460107 | Shelf (4) |
|
- | |||||
| 24 | 10946008 | Trim, Rear (4) |
|
- |
