Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10480430		Assy, Glass Shelf	10	Appelez-nous	-
2	WPW10568041		Frame, Crisper   (Replaces: 67001056)	10		Immediately	$ 137.23
3	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)	10		Immediately	$ 7.81
4	67001063		Seal, Front Crisper	10			$ 38.97
5	67001768		Seal, Rear Crisper	10			$ 9.45
6	WP12227303WD		Brace, Crisper E-ct   (Replaces: 67001059)	10			$ 105.95
7	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)	10		Immediately	$ 112.82
8	WP67002633		Pan, Crisper   (Replaces: 67002633)	10		Immediately	$ 149.12
9	WP67006878		Glass, Crisper   (Replaces: 67001060)	10		Immediately	$ 185.19
10	10459928		Extr, Front Shelf	10	Appelez-nous	-
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.40
12	67004420		Extr, Crisper Front		Appelez-nous	-
13	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
14	WP67001314		Pan, Deli   (Replaces: 67001314)	10			$ 155.33
15	10480412		Assy, Glass Shelf		Appelez-nous	-
16	10946008		Extr, Rear Shelf		Appelez-nous	-
17	Y10370074		Glass, Shelf	10	Appelez-nous	-
18	10459927		Extr, Front Shelf	10	Appelez-nous	-
19	10460108		Shelf, Glass Frame				$ 29.98
20	10459806		Extr, Rear Shelf	10	Appelez-nous	-
21	10370099		Glass, Shelf		Appelez-nous	-
22	10460107		Frame, Shelf		Appelez-nous	-
11A	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24

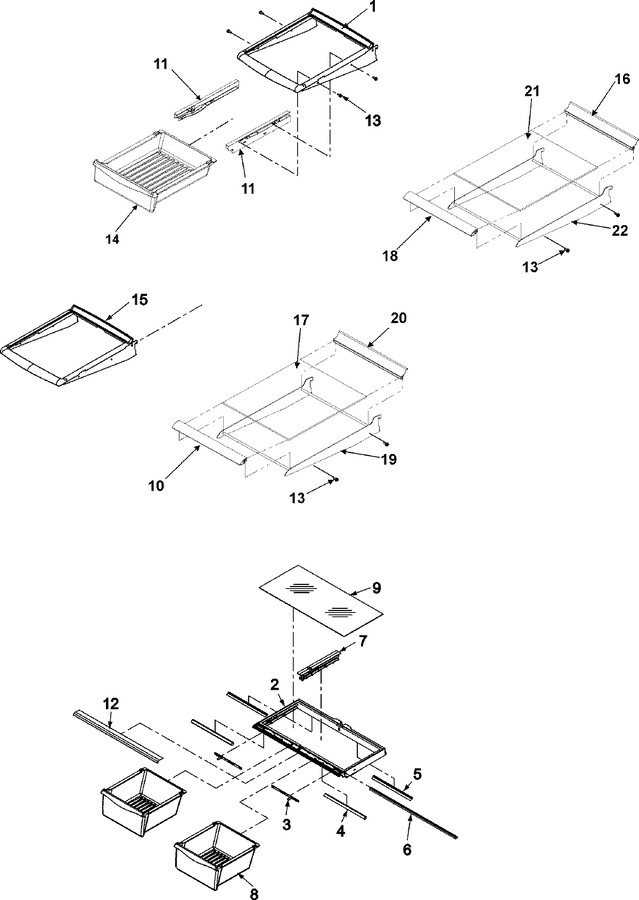

    View Diagram in Separate Window       Print Part List
