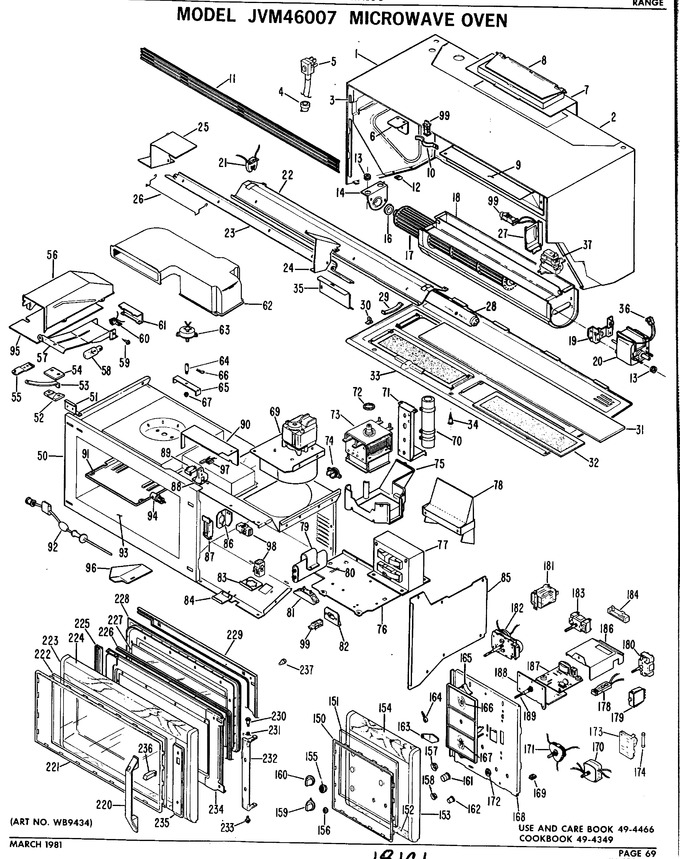

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Microwave Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X5812 | Case Outer |
|
- | |||||
| 1 | WB1X5522 | Screw, Mt. Case Top |
|
- | |||||
| 1 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 2 | WB2X6420 | Pad |
|
- | |||||
| 2 | WB56X5813 | Support Asm Rear |
|
- | |||||
| 3 | WB2X6992 | Speednut Case Lower |
|
- | |||||
| 4 | WB2X6571 | Strain Relief |
|
- | |||||
| 5 | WB18X5054 | Cord Power |
|
- | |||||
| 6 | WB2X5165 | Clip Cable |
|
- | |||||
| 6 | WZ05X0177 | Screw, Ground |
|
- | |||||
| 6 | WB2X6777 | Bracket Connector |
|
- | |||||
| 6 | WB1X5522 | Screw, Mt. Case Top |
|
- | |||||
| 6 | WB2X646 | Plate Ground |
|
- | |||||
| 7 | WB38X5059 | Exhaust Asm |
|
- | |||||
| 8 | WB2X2139 | Damper |
|
- | |||||
| 8 | WB2X2138 | Wire Damper |
|
- | |||||
| 8 | WB9X97 | Spring Damper |
|
- | |||||
| 9 | WB2X6778 | Cover Duct |
|
- | |||||
| 10 | WB2X3018 | Clip Lead |
|
- | |||||
| 11 | WB2X6847 | Clip Grille |
|
- | |||||
| 11 | WB7X6678 | Grill |
|
- | |||||
| 11 | WB1X5554 | Screw, Mt. Grill |
|
- | |||||
| 12 | WB2X6779 | Speednut Mtg Case Upper |
|
- | |||||
| 12 | WB2X6992 | Speednut Case Lower |
|
- | |||||
| 13 | WB2X6780 | Grommet Isolation |
|
- | |||||
| 14 | WB2X6860 | Bracket Bushing |
|
- | |||||
| 16 | WB2X6861 | Bushing |
|
- | |||||
| 17 | WB2X6862 | Wheel & Bushing Asm |
|
- | |||||
| 18 | WB38X5060 | Housing Blower |
|
- | |||||
| 19 | WB2X6863 | Bracket Motor |
|
- | |||||
| 20 | WB26X5047 | Motor, Fan |
|
- | |||||
| 21 | WB8X188 | Lampholder |
|
- | |||||
| 22 | WB56X5814 | Bracket Lamp |
|
- | |||||
| 23 | WB49X5259 | Channel Wire |
|
- | |||||
| 23 | WZ04X0304 | Screw Mt. Duct |
|
- | |||||
| 24 | WB2X6781 | Cover Wiring Rh |
|
- | |||||
| 25 | WB2X6782 | Cover Wiring Lh |
|
- | |||||
| 26 | WB2X6783 | Spring, Filter |
|
- | |||||
| 27 | WB2X6784 | Ballast - Lead Asm. |
|
- | |||||
| 29 | WB2X6785 | Clip Crystal |
|
- | |||||
| 30 | WB2X1665 | Filter Clip |
|
- | |||||
| 31 | WB36X5409 | Crystal Lamp |
|
- | |||||
| 32 | WB2X6786 | Filter |
|
- | |||||
| 33 | WB56X5816 | Panel Asm |
|
- | |||||
| 33 | WZ05X0120 | Screw |
|
- | |||||
| 34 | WB1X5524 | Screw |
|
- | |||||
| 35 | WB2X6787 | Cover Access |
|
- | |||||
| 36 | WB17X5061 | Terminal Blk Asm (3 Pin) |
|
- | |||||
| 37 | WB27X5163 | Thermostat Blower (02 - |
|
- | |||||
| 51 | WB2X6789 | Bracket, Mt. Grill L.h. |
|
- | |||||
| 51 | WB2X6788 | Bracket, Mt. Grill R.h. |
|
- | |||||
| 52 | WB2X6790 | Guide, Lever |
|
- | |||||
| 53 | WB10X5122 | Lever Door |
|
- | |||||
| 54 | WZ05X0139 | Scr 8-32 T Hxw 7/8 S |
|
- | |||||
| 54 | WB10X5117 | 862a164p001 |
|
- | |||||
| 55 | WB2X6791 | Arm Hinge |
|
- | |||||
| 55 | WB1X5534 | Washer Nylon |
|
- | |||||
| 56 | WB2X6792 | Duct Exhaust |
|
- | |||||
| 57 | WB2X6793 | Shield Lamp |
|
- | |||||
| 58 | WX12X1560 | Lamp (25t8dc) |
|
- | |||||
| 59 | WB1X5525 | Screw, Shoulder |
|
- | |||||
| 60 | WB2X6401 | Lamp Holder |
|
- | |||||
| 61 | WB2X6794 | Cover, Lamp Wire |
|
- | |||||
| 62 | WB49X5214 | Duct Air |
|
- | |||||
| 62 | WB2X6910 | Clip Mtg Duct |
|
- | |||||
| 63 | WZ04X0416 | Screw |
|
- | |||||
| 63 | WB26X5044 | Motor Stirrer |
|
- | |||||
| 64 | WB2X6843 | Shaft Stirrer Motor |
|
- | |||||
| 65 | WB2X6796 | Blade, Stirrer |
|
- | |||||
| 66 | WB2X6844 | Pin Cotter |
|
- | |||||
| 67 | WB1X5450 | Nut, Cap Mt. Stirrer |
|
- | |||||
| 69 | WB49X5250 | Cover Mtr. - Blower Open |
|
- | |||||
| 69 | WB2X6961 | Barrier Blower Mtr. |
|
- | |||||
| 69 | WB26X5055 | Motor, Blower |
|
- | |||||
| 70 | WB27X5094 | Resistor |
|
- | |||||
| 71 | WB2X6798 | Bracket |
|
- | |||||
| 72 | WB2X6046 | Rf Gasket |
|
- | |||||
| 72 | WB2X6958 | Rf Gasket (top) |
|
- | |||||
| 73 | WB18X5048 | Hi Voltage Wire |
|
- | |||||
| 73 | WB27X5144 | Magnetron |
|
- | |||||
| 74 | WB27X5117 | Thermostat Fixed Temp |
|
- | |||||
| 74 | WB1X5347 | Screw, Mt. Thermostat |
|
- | |||||
| 75 | WB49X5251 | Duct Magnetron |
|
- | |||||
| 76 | WB2X6800 | Plate Componnet |
|
- | |||||
| 77 | WB27X5096 | Transformer, Hi-voltage |
|
- | |||||
| 77 | WB1X453 | Screw & Washer |
|
- | |||||
| 77 | WB2X6960 | Barrier Transformer |
|
- | |||||
| 78 | WB1X5553 | Fastener Barrier |
|
- | |||||
| 78 | WB2X6959 | Barrier |
|
- | |||||
| 79 | WB2X6517 | Strap Capacitor |
|
- | |||||
| 80 | WZ04X0231 | Screw Mt. Side |
|
- | |||||
| 80 | WB27X5075 | Capacitor |
|
- | |||||
| 81 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 81 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 82 | WB2X6802 | Bracket, Mt. Connector |
|
- | |||||
| 83 | WB2X6803 | Bracket Mtg Connector |
|
- | |||||
| 84 | WB2X6804 | Bracket, Hook |
|
- | |||||
| 85 | WB2X6805 | Panel Side |
|
- | |||||
| 86 | WB2X6806 | Bracket Mtg Connector |
|
- | |||||
| 87 | WB24X226 | Switch, Monitor |
|
- | |||||
| 87 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 87 | WB2X6807 | Barrier Switch |
|
- | |||||
| 88 | WB2X6808 | Strike Latch |
|
- | |||||
| 88 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 89 | WZ05X0230 | Scr 8-32x1/4 Hex Wshr |
|
- | |||||
| 89 | WB24X5101 | Switch Latch Upper |
|
- | |||||
| 90 | WB2X6809 | Barrier |
|
- | |||||
| 91 | WB56X5817 | Stirrer, Cover |
|
- | |||||
| 91 | WB1X5453 | Fastener |
|
- | |||||
| 92 | WB20X5045 | Probe |
|
- | |||||
| 93 | WB48X5057 | Shelf Oven |
|
- | |||||
| 94 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 95 | WB2X6928 | Shield Vapor |
|
- | |||||
| 96 | WB2X6811 | Cover Lower |
|
- | |||||
| 97 | WB18X5053 | Housing Terminal |
|
- | |||||
| 98 | WB17X5059 | Housing Socket Pkg 9 Pin |
|
- | |||||
| 99 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 150 | WB7X6679 | Trim Crystal |
|
- | |||||
| 151 | WB36X5398 | Crystal, Control Panel |
|
- | |||||
| 152 | WB7X6680 | Trim Bottom |
|
- | |||||
| 153 | WB56X5843 | Panel Trim |
|
- | |||||
| 153 | WB1X5526 | Nut, Cap, Mt. Panel |
|
- | |||||
| 154 | WB7X6709 | Trim Top |
|
- | |||||
| 155 | WB7X6682 | Trim Button Start |
|
- | |||||
| 156 | WB7X6683 | Trim Button Vent Light |
|
- | |||||
| 157 | WB2X6812 | Retainer Button Start |
|
- | |||||
| 158 | WB2X6813 | Retain Button Vent Light |
|
- | |||||
| 159 | WB3X5595 | Knob |
|
- | |||||
| 160 | WB3X5556 | Knob |
|
- | |||||
| 161 | WB3X5596 | Button Start |
|
- | |||||
| 162 | WB3X5597 | Button Fan & Light |
|
- | |||||
| 163 | WB2X6814 | Indicator |
|
- | |||||
| 164 | WB25X5039 | Pointer Time & Temp |
|
- | |||||
| 165 | WB2X6815 | Faceplate, Control |
|
- | |||||
| 166 | WB25X5043 | Timer Dial |
|
- | |||||
| 167 | WB25X5044 | Temperature Dial |
|
- | |||||
| 168 | WB56X5819 | Panel, Instrument |
|
- | |||||
| 169 | WB1X455 | Speednut, Clamp |
|
- | |||||
| 170 | WB24X5093 | Switch, Light |
|
- | |||||
| 171 | WB24X5151 | Switch, Fan |
|
- | |||||
| 172 | WB1X245 | Nut |
|
- | |||||
| 173 | WB27X5193 | Varistor |
|
- | |||||
| 174 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 178 | WB2X6816 | Bracket Mt. Light |
|
- | |||||
| 178 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 179 | WB24X5083 | Start Switch |
|
- | |||||
| 180 | WB24X5122 | Switch, Dual Power |
|
- | |||||
| 181 | WB27X5056 | Relay |
|
- | |||||
| 182 | WB19X5247 | Timer |
|
- | |||||
| 183 | WB24X5123 | Switch |
|
- | |||||
| 184 | WB27X5147 | Resistor |
|
- | |||||
| 186 | WB2X6649 | Cover, Circuit Board |
|
- | |||||
| 187 | WB24X5088 | Circuit Board Asm |
|
- | |||||
| 187 | WB17X158 | Terminal - Edge |
|
- | |||||
| 188 | WB2X3414 | Bracket Board |
|
- | |||||
| 189 | WB1X443 | Nut |
|
- | |||||
| 189 | WB1X588 | Lockwasher Switch |
|
- | |||||
| 189 | WB24X5124 | Potentiometer Asm. |
|
- | |||||
| 190 | WB27X5133 | Relay, Fan |
|
- | |||||
| 220 | WB15X5118 | Handle Door |
|
- | |||||
| 220 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 221 | WB7X5661 | Trim Crystal |
|
- | |||||
| 222 | WB36X5393 | Crystal Outer |
|
- | |||||
| 223 | WB1X5518 | Scr 8-16 Ab Plt 11/64 S |
|
- | |||||
| 223 | WB56X5872 | Panel Door |
|
- | |||||
| 224 | WB7X5662 | Cover Trim Top |
|
- | |||||
| 224 | WB7X5663 | Cover Trim Bottom |
|
- | |||||
| 225 | WB2X6819 | Gasket Short |
|
- | |||||
| 226 | WB2X6818 | Gasket, Long |
|
- | |||||
| 227 | WB36X5399 | Crystal Door Liner |
|
- | |||||
| 228 | WB1X5541 | Screw Mtg Cover |
|
- | |||||
| 228 | WB55X5229 | Cover Choke |
|
- | |||||
| 229 | WB7X6685 | Trim Filler |
|
- | |||||
| 230 | WB1X5527 | Screw Mtg Latch |
|
- | |||||
| 231 | WB9X5085 | Spring Latch |
|
- | |||||
| 232 | WB10X5124 | Latch Bar |
|
- | |||||
| 233 | WB1X5528 | Screw Mtg Latch |
|
- | |||||
| 234 | WB55X5230 | Liner Asm |
|
- | |||||
| 235 | WB2X6993 | Base Handle |
|
- | |||||
| 236 | WB3X5599 | Button Latch |
|
- | |||||
| 237 | WB2X6909 | Bumper |
|
- |
