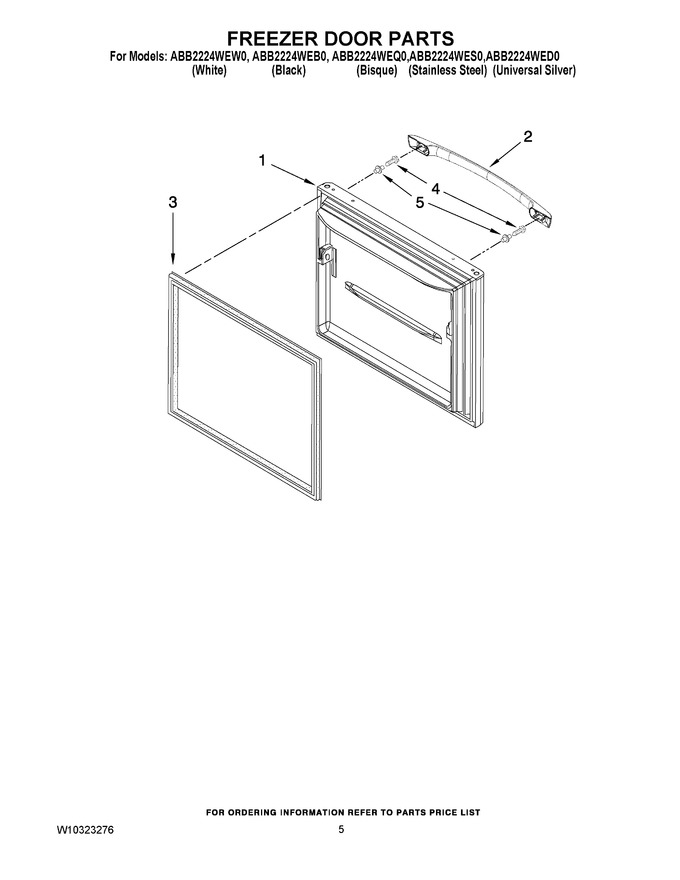

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13092266WQ		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
1	13092266BQ		Freezer Door (w/ Insulation) (black)		Appelez-nous	-
1	13092266QQ		Freezer Door (w/ Insulation) (biscuit)		Appelez-nous	-
1	13109217SQ		Freezer Door (w/ Insulation) (stainless Steel)   (Replaces: 13092274SQ)			Immediately	$ 1,095.95
1	13092249DQ		Freezer Door (w/ Insulation) (universal Silver)		Appelez-nous	-
2	13004801W		Handle (white)				$ 85.34
2	WP13004801Q		Handle (biscuit)   (Replaces: 13004801Q)				$ 177.68
2	13004801B		Handle (black)				$ 83.66
2	W10136873N		Handle (stainless)		Appelez-nous	-
3	W10443315		Door Gasket, Magnetic (white)   (Replaces: W10164036)				$ 193.98
3	WPW10436250		Door Gasket, Magnetic (black)   (Replaces: W10164037)			Immediately	$ 365.39
4	W10290759		Screw-handle				$ 5.83
5	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
