SELECT A DIAGRAM

1 - Freezer Door

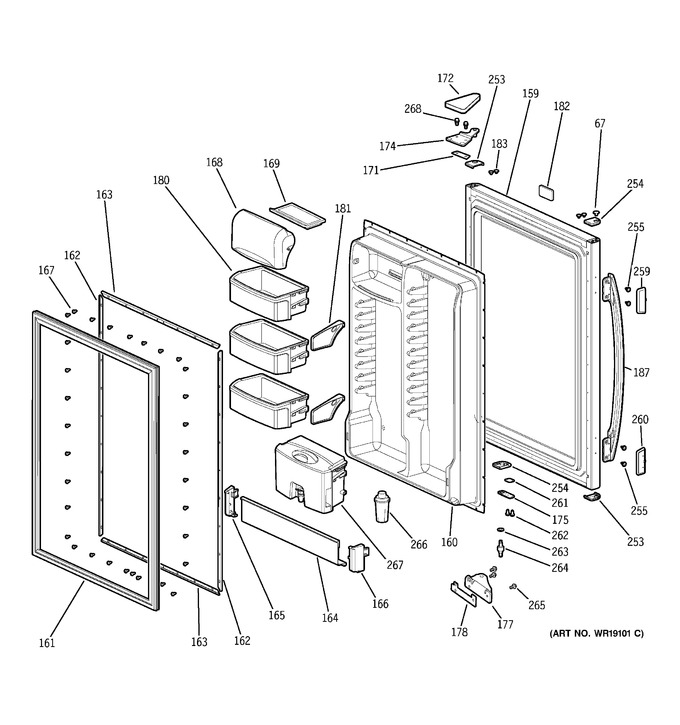

2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	WR02X11040		Plug Button, Thimble(bk)		Appelez-nous	-
159	WR78X10559		Door, Ff Bk		Appelez-nous	-
160	WR78X10560		Liner, Door		Appelez-nous	-
161	WR24X10100		Gasket, Door Ff Bk		Appelez-nous	-
162	WR02X11048		Retainer Strip		Appelez-nous	-
163	WR02X11049		Retainer Strip		Appelez-nous	-
164	WR17X11106		Shelf Frt, Door (ff)		Appelez-nous	-
165	WG03F00926		End Cap   (Replaces: WR2X9296)				$ 13.73
166	WG03L00278		End Cap Lh (wide)   (Replaces: WR2X9295)				$ 30.18
167	WR01X10274		Screw		Appelez-nous	-
168	WR38X10258		Door, Dairy (clr)		Appelez-nous	-
169	WR19X10003		Dish, Butter		Appelez-nous	-
171	WR02X11050		Shim		Appelez-nous	-
172	WR2S72		Hinge Cover - Bk		Appelez-nous	-
174	WR13X10218		Hinge, Top		Appelez-nous	-
175	WR13X10219		Door Stop-rh		Appelez-nous	-
177	WR13X10220		Hinge, Mid Bk		Appelez-nous	-
178	WR13X10221		Shim, Mid Hinge Bk		Appelez-nous	-
180	WR71X10363		Porta Bin (white)		Appelez-nous	-
181	WR02X11051		Snugger, Porta Bin		Appelez-nous	-
182	WR04X10058		Nameplate (ge)		Appelez-nous	-
183	WR02X11052		Plug Button Bk		Appelez-nous	-
187	WR12X10512		Handle Asm. Ff Bk		Appelez-nous	-
253	WR02X11055		Epaulet, Door Corner - R		Appelez-nous	-
254	WR02X11056		Epaulet, Dr Crne - Lh		Appelez-nous	-
255	WR01X10275		Screw (10-24 Shoulder)		Appelez-nous	-
259	WR02X11057		Cover, Handle Rh Ff Bk		Appelez-nous	-
260	WR02X11058		Cover, Handle Lh Ff Bk		Appelez-nous	-
261	WR13X10222		Shim, Door Stop		Appelez-nous	-
262	WR1M712		Scr Handle Stop		Appelez-nous	-
263	WR01X10276		Washer		Appelez-nous	-
264	WR02X11059		Pin, Mid Hinge		Appelez-nous	-
265	WR1X2061		Screw (10-32 X 5/8)		Appelez-nous	-
266	WR02X11060		Filter, Brita		Appelez-nous	-
267	WR71X10364		Brita Bin, Complete		Appelez-nous	-
268	WR01X10277		Screw, Hinge (12-24 Tt)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
