SELECT A DIAGRAM

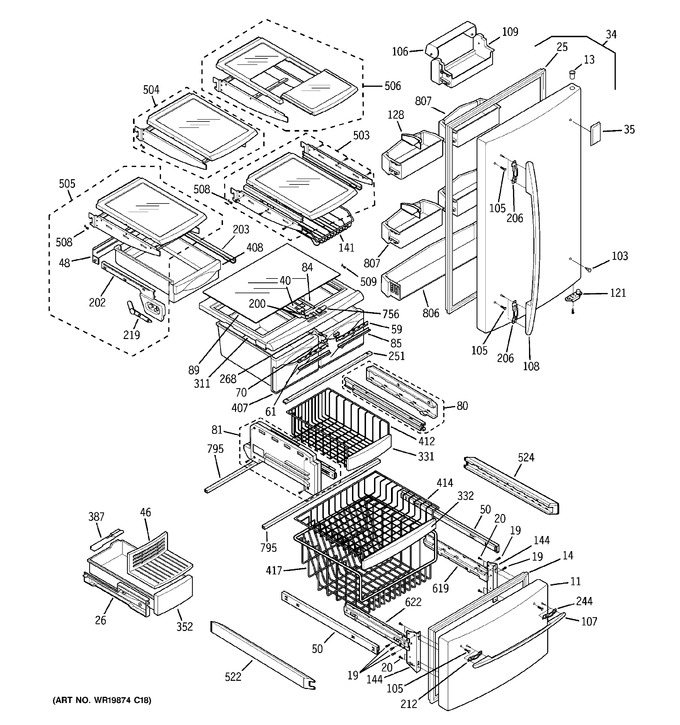

1 - Doors & Shelves


2 - Cabinet


3 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR78X10937		Door Asm Fz		Appelez-nous	-
11	WR78X10935		Door Asm Fz		Appelez-nous	-
11	WR78X10933		Door Asm Fz		Appelez-nous	-
13	WR01X10493		Bush		Appelez-nous	-
14	WR14X10179		Gasket Asm,fz		Appelez-nous	-
14	WR14X10181		Gasket Asm Fz		Appelez-nous	-
19	WR01X10637		Screw Drawing		Appelez-nous	-
20	WR01X10638		Screw Drawing		Appelez-nous	-
25	WR14X10180		Gasket Asm,ff		Appelez-nous	-
25	WR14X10182		Gasket Asm Ff		Appelez-nous	-
26	WR17X11585		Guide Rail(ice)bin		Appelez-nous	-
34	WR78X10938		Door Asm Ff		Appelez-nous	-
34	WR78X10936		Door Asm Ff		Appelez-nous	-
34	WR78X10934		Door Asm Ff Bk		Appelez-nous	-
35	WR04X10138		Name Plate		Appelez-nous	-
40	WR02X11684		Guide Rail(middle T/v)		Appelez-nous	-
46	WR30X10050		Shelf Ice Tray		Appelez-nous	-
48	WR17X11604		Guide Air		Appelez-nous	-
50	WR17X11931		Rail Asm		Appelez-nous	-
59	WR02X11673		Link,humidity Left		Appelez-nous	-
61	WR02X11674		Link,humidity Right		Appelez-nous	-
70	WR02X11701		Rail Slide Center		Appelez-nous	-
80	WR17X12056		Rail Slide Asm Rh		Appelez-nous	-
81	WR17X12057		Rail Slide Asm Lh		Appelez-nous	-
84	WR01L07648		Middle Gasket   (Replaces: WR14X10176)				$ 40.23
85	WR14X10178		Front Gasket		Appelez-nous	-
89	WR32X10468		Glass Cover Veg Pan		Appelez-nous	-
103	WR02X11752		Plug Button - Black		Appelez-nous	-
103	WR02X11751		Plub Button - Bisque		Appelez-nous	-
103	WR02X11750		Plug Button - Wh		Appelez-nous	-
105	WR01X10446		Bolt-door Handle		Appelez-nous	-
106	WG03L01159		Dairy Door Cvr   (Replaces: WR02X11706)				$ 62.33
107	WR12X10664		Handle,fzr Door		Appelez-nous	-
107	WR12X10662		Handle,fzr Door Bb		Appelez-nous	-
107	WR12X10670		Handle Fzr Door Ww		Appelez-nous	-
108	WR12X10663		Handle,ff Door		Appelez-nous	-
108	WR12X10669		Handle Ff Door Ww		Appelez-nous	-
108	WR12X10661		Handle,ff Door Bb		Appelez-nous	-
109	WR71X10549		Dairy Bin		Appelez-nous	-
121	WG03L01237		Stopper,door Bk   (Replaces: WR02X11675)				$ 30.18
121	WR02X11718		Stopper,door Bq		Appelez-nous	-
121	WR02X11720		Stopper Door Wh		Appelez-nous	-
128	WG03L01630		Snugger   (Replaces: WR02X11680)				$ 17.01
141	WR21X10085		Can Dispenser		Appelez-nous	-
144	WR02X11687		Connector Door		Appelez-nous	-
200	WG03F00983		Shutter Slide   (Replaces: WR02X11689)				$ 12.40
202	WG03L01374		Guide Asm,rail   (Replaces: WR72X10148)				$ 80.53
203	WR02X11685		Guide, Rail		Appelez-nous	-
206	WR02X11679		Bracket Handle Ff		Appelez-nous	-
212	WR02X11678		Bracket Handle Fzr Left		Appelez-nous	-
219	WR02X11672		Lever Shutter		Appelez-nous	-
244	WR02X11677		Bracket Handle Fz Right		Appelez-nous	-
251	WR02X11707		Supportor Cover T/v		Appelez-nous	-
268	WG03L01071		Adjuster   (Replaces: WR02X11671)				$ 21.63
311	WR72X10152		Frame Lower Pan		Appelez-nous	-
331	WR12X10659		Fz Bskt Upper Handle		Appelez-nous	-
332	WR12X10660		Fz Bskt W/trim		Appelez-nous	-
352	WR30X10052		Ice Bin		Appelez-nous	-
387	WR02X11662		Cover Ice Bin		Appelez-nous	-
407	WR32X10466		Veg Pan		Appelez-nous	-
408	WR32X10467		Meat Pan		Appelez-nous	-
412	WR21X10084		Fz Bskt Upper		Appelez-nous	-
414	WR21X10083		Fz Bskt Ctr		Appelez-nous	-
417	WR21X10082		Fz Bskt		Appelez-nous	-
503	WR71X10567		Shelf Asm		Appelez-nous	-
504	WR71X10568		Shelf Asm		Appelez-nous	-
505	WR71X10569		Shelf Asm		Appelez-nous	-
506	WR71X10566		Shelf Asm Folding		Appelez-nous	-
508	WG03L01586		Shelf Stopper   (Replaces: WR02X12053)				$ 6.09
509	WG03L01139		Cover Stopper   (Replaces: WR02X12054)				$ 6.09
522	WR02X12035		Rail Support Left		Appelez-nous	-
524	WR02X12036		Rail Support Right		Appelez-nous	-
619	WR17X11587		Connector Asm Right		Appelez-nous	-
622	WR17X11588		Connector Asm Left		Appelez-nous	-
756	WG03F00562		Shutter Slide   (Replaces: WR02X11688)				$ 12.40
795	WR30X10053		Supportor Divider		Appelez-nous	-
806	WR17X11605		Door Bin		Appelez-nous	-
807	WR17X11606		Door Bin		Appelez-nous	-
