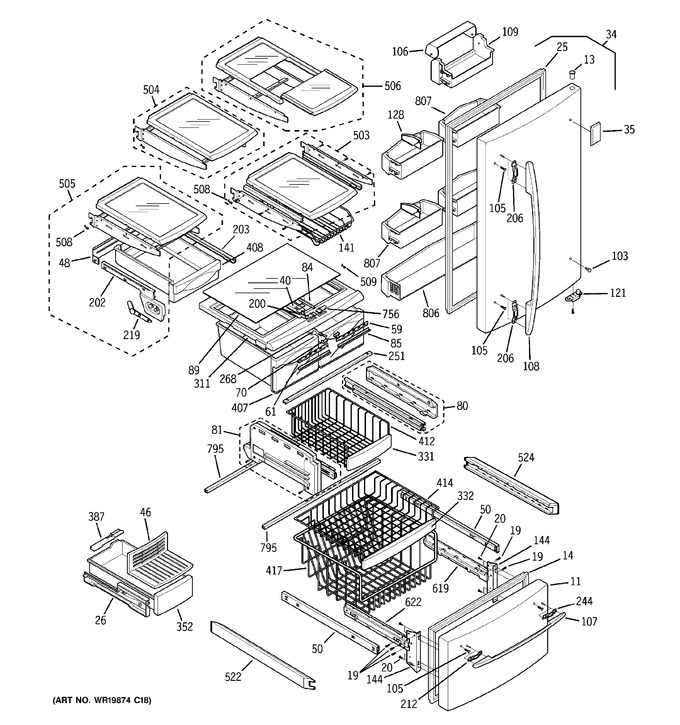

1 - Doors & Shelves
2 - Cabinet
3 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WR78X10943 | Door Asm,fzr Ww |
|
- | |||||
| 11 | WR78X10939 | Door Asm,fzr Bb |
|
- | |||||
| 11 | WR78X10941 | Door Foam Asm,fzr |
|
- | |||||
| 13 | WR01X10493 | Bush |
|
- | |||||
| 14 | WR14X10184 | Gasket Asm,fz |
|
- | |||||
| 14 | WR14X10177 | Gasket Asm Fz Bb |
|
- | |||||
| 19 | WR01X10637 | Screw Drawing |
|
- | |||||
| 20 | WR01X10638 | Screw Drawing |
|
- | |||||
| 25 | WR14X10185 | Gasket Asm,ff |
|
- | |||||
| 25 | WR02X11691 | Gasket Asm Ff |
|
- | |||||
| 26 | WR17X11585 | Guide Rail(ice)bin |
|
- | |||||
| 34 | WR78X10944 | Door Foam Asm,ff |
|
- | |||||
| 34 | WR78X10940 | Door Foam Asm,ff |
|
- | |||||
| 34 | WR78X10942 | Door Asm Ff |
|
- | |||||
| 35 | WR04X10138 | Name Plate |
|
- | |||||
| 40 | WR02X11684 | Guide Rail(middle T/v) |
|
- | |||||
| 46 | WR30X10050 | Shelf Ice Tray |
|
- | |||||
| 48 | WG03L01373 | Guide Air (Replaces: WR17X11584) |
|
$ 18.59 | |||||
| 50 | WR17X11931 | Rail Asm |
|
- | |||||
| 59 | WR02X11673 | Link,humidity Left |
|
- | |||||
| 61 | WR02X11674 | Link,humidity Right |
|
- | |||||
| 70 | WR02X11701 | Rail Slide Center |
|
- | |||||
| 80 | WR17X12056 | Rail Slide Asm Rh |
|
- | |||||
| 81 | WR17X12057 | Rail Slide Asm Lh |
|
- | |||||
| 84 | WR01L07648 | Middle Gasket (Replaces: WR14X10176) |
|
$ 40.23 | |||||
| 85 | WG03L01302 | Front Gasket (Replaces: WR14X10175) |
|
$ 44.06 | |||||
| 89 | WR32X10465 | Glass Cover Veg Pan |
|
- | |||||
| 103 | WR02X11750 | Plug Button - Wh |
|
- | |||||
| 103 | WR02X11752 | Plug Button - Black |
|
- | |||||
| 103 | WR02X11751 | Plub Button - Bisque |
|
- | |||||
| 105 | WR01X10446 | Bolt-door Handle |
|
- | |||||
| 106 | WR02X11665 | Dairy Door Cvr |
|
- | |||||
| 107 | WR12X10662 | Handle,fzr Door Bb |
|
- | |||||
| 107 | WR12X10664 | Handle,fzr Door |
|
- | |||||
| 107 | WR12X10670 | Handle Fzr Door Ww |
|
- | |||||
| 108 | WR12X10661 | Handle,ff Door Bb |
|
- | |||||
| 108 | WR12X10669 | Handle Ff Door Ww |
|
- | |||||
| 108 | WR12X10663 | Handle,ff Door |
|
- | |||||
| 109 | WR71X10536 | Dairy Bin |
|
- | |||||
| 121 | WR02X11718 | Stopper,door Bq |
|
- | |||||
| 121 | WG03L01237 | Stopper,door Bk (Replaces: WR02X11675) |
|
$ 30.18 | |||||
| 121 | WR02X11720 | Stopper Door Wh |
|
- | |||||
| 128 | WG03L01630 | Snugger (Replaces: WR02X11680) |
|
$ 17.01 | |||||
| 141 | WR21X10081 | Can Dispenser |
|
- | |||||
| 144 | WR02X11687 | Connector Door |
|
- | |||||
| 200 | WG03F00983 | Shutter Slide (Replaces: WR02X11689) |
|
$ 12.40 | |||||
| 202 | WG03L01374 | Guide Asm,rail (Replaces: WR72X10148) |
|
$ 80.53 | |||||
| 203 | WR02X11685 | Guide, Rail |
|
- | |||||
| 206 | WR02X11679 | Bracket Handle Ff |
|
- | |||||
| 212 | WR02X11678 | Bracket Handle Fzr Left |
|
- | |||||
| 219 | WR02X11672 | Lever Shutter |
|
- | |||||
| 244 | WR02X11677 | Bracket Handle Fz Right |
|
- | |||||
| 251 | WR02X11703 | Supportor Cover T/v |
|
- | |||||
| 268 | WG03L01071 | Adjuster (Replaces: WR02X11671) |
|
$ 21.63 | |||||
| 311 | WR02X11666 | Frame - Lower Pan |
|
- | |||||
| 331 | WR12X10657 | Fzr Bskt Upper Handle |
|
- | |||||
| 332 | WR12X10658 | Fzr Bskt W/trim |
|
- | |||||
| 352 | WR30X10052 | Ice Bin |
|
- | |||||
| 387 | WR02X11662 | Cover Ice Bin |
|
- | |||||
| 407 | WG03L01665 | Veg Pan (Replaces: WR32X10463) |
|
$ 237.52 | |||||
| 408 | WR32X10464 | Snack Pan |
|
- | |||||
| 412 | WR21X10080 | Fzr Bskt - Upper |
|
- | |||||
| 414 | WR21X10079 | Fzr Bskt - Ctr |
|
- | |||||
| 417 | WR21X10078 | Fzr Bskt Lower |
|
- | |||||
| 503 | WR32X10501 | Shelf Asm |
|
- | |||||
| 504 | WR71X10563 | Shelf Asm |
|
- | |||||
| 505 | WR71X10564 | Shelf Asm |
|
- | |||||
| 506 | WR71X10565 | Shelf Asm,folding |
|
- | |||||
| 508 | WG03L01586 | Shelf Stopper (Replaces: WR02X12053) |
|
$ 6.09 | |||||
| 509 | WG03L01139 | Cover Stopper (Replaces: WR02X12054) |
|
$ 6.09 | |||||
| 522 | WR02X12035 | Rail Support Left |
|
- | |||||
| 524 | WR02X12036 | Rail Support Right |
|
- | |||||
| 619 | WR17X11587 | Connector Asm Right |
|
- | |||||
| 622 | WR17X11588 | Connector Asm Left |
|
- | |||||
| 756 | WG03F00562 | Shutter Slide (Replaces: WR02X11688) |
|
$ 12.40 | |||||
| 795 | WR30X10051 | Supportor,divider |
|
- | |||||
| 806 | WR17X11586 | Door Bin |
|
- | |||||
| 807 | WR71X10532 | Door Bin Fz |
|
- |
