SELECT A DIAGRAM

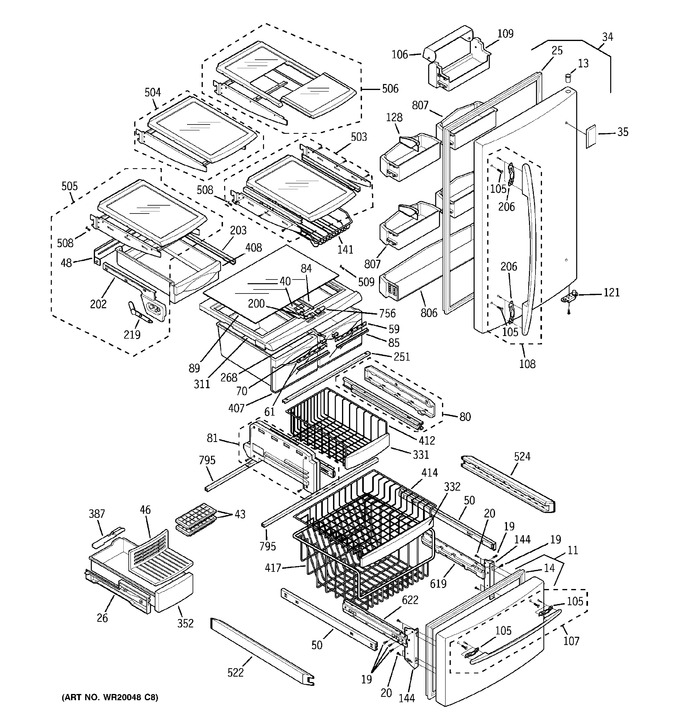

1 - Doors & Shelves


2 - Cabinet


3 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR78X11386		Door Asm,fzr Ss		Appelez-nous	-
13	WR01X10493		Bush		Appelez-nous	-
14	WR14X10177		Gasket Asm Fz Bb		Appelez-nous	-
19	WR01X10637		Screw Drawing		Appelez-nous	-
20	WR01X10638		Screw Drawing		Appelez-nous	-
25	WR02X11691		Gasket Asm Ff		Appelez-nous	-
26	WR17X11585		Guide Rail(ice)bin		Appelez-nous	-
34	WR78X11389		Door Asm, Ff Ss		Appelez-nous	-
34	WR78X11387		Door Asm,ff Ss		Appelez-nous	-
35	WR04X10138		Name Plate		Appelez-nous	-
40	WR02X11684		Guide Rail(middle T/v)		Appelez-nous	-
43	WG03F02198		Tray, Ice   (Replaces: WR30X10049)				$ 51.14
46	WR30X10050		Shelf Ice Tray		Appelez-nous	-
48	WG03L01373		Guide Air   (Replaces: WR17X11584)				$ 18.59
50	WR17X11931		Rail Asm		Appelez-nous	-
59	WR02X11673		Link,humidity Left		Appelez-nous	-
61	WR02X11674		Link,humidity Right		Appelez-nous	-
70	WR02X11701		Rail Slide Center		Appelez-nous	-
80	WR17X12056		Rail Slide Asm Rh		Appelez-nous	-
81	WR17X12057		Rail Slide Asm Lh		Appelez-nous	-
84	WR01L07648		Middle Gasket   (Replaces: WR14X10176)				$ 40.23
85	WG03L01302		Front Gasket   (Replaces: WR14X10175)				$ 44.06
89	WR32X10465		Glass Cover Veg Pan		Appelez-nous	-
105	WG03L01090		Bolt Door Handle   (Replaces: WR01X10485)				$ 9.25
106	WR02X11665		Dairy Door Cvr		Appelez-nous	-
107	WR12X10780		Handle Asm Hydroform Fz		Appelez-nous	-
108	WR12X10781		Handle Asm Hydroform Ff		Appelez-nous	-
109	WR71X10536		Dairy Bin		Appelez-nous	-
121	WG03L01237		Stopper,door Bk   (Replaces: WR02X11675)				$ 30.18
128	WG03L01630		Snugger   (Replaces: WR02X11680)				$ 17.01
141	WR21X10081		Can Dispenser		Appelez-nous	-
144	WR02X11687		Connector Door		Appelez-nous	-
200	WG03F00983		Shutter Slide   (Replaces: WR02X11689)				$ 12.40
202	WG03L01374		Guide Asm,rail   (Replaces: WR72X10148)				$ 80.53
203	WR02X11685		Guide, Rail		Appelez-nous	-
206	WR02X11679		Bracket Handle Ff		Appelez-nous	-
219	WR02X11672		Lever Shutter		Appelez-nous	-
251	WR02X11703		Supportor Cover T/v		Appelez-nous	-
268	WG03L01071		Adjuster   (Replaces: WR02X11671)				$ 21.63
311	WR02X11666		Frame - Lower Pan		Appelez-nous	-
331	WR12X10657		Fzr Bskt Upper Handle		Appelez-nous	-
332	WR12X10658		Fzr Bskt W/trim		Appelez-nous	-
352	WR30X10052		Ice Bin		Appelez-nous	-
387	WR02X11662		Cover Ice Bin		Appelez-nous	-
407	WG03L01665		Veg Pan   (Replaces: WR32X10463)				$ 237.52
408	WR32X10464		Snack Pan		Appelez-nous	-
412	WR21X10080		Fzr Bskt - Upper		Appelez-nous	-
414	WR21X10079		Fzr Bskt - Ctr		Appelez-nous	-
417	WR21X10078		Fzr Bskt Lower		Appelez-nous	-
503	WR32X10501		Shelf Asm		Appelez-nous	-
504	WR71X10563		Shelf Asm		Appelez-nous	-
505	WR71X10564		Shelf Asm		Appelez-nous	-
506	WR71X10565		Shelf Asm,folding		Appelez-nous	-
508	WG03L01586		Shelf Stopper   (Replaces: WR02X12053)				$ 6.09
509	WG03L01139		Cover Stopper   (Replaces: WR02X12054)				$ 6.09
522	WR02X12035		Rail Support Left		Appelez-nous	-
524	WR02X12036		Rail Support Right		Appelez-nous	-
619	WR17X11587		Connector Asm Right		Appelez-nous	-
622	WR17X11588		Connector Asm Left		Appelez-nous	-
756	WG03F00562		Shutter Slide   (Replaces: WR02X11688)				$ 12.40
795	WR30X10051		Supportor,divider		Appelez-nous	-
806	WR17X11586		Door Bin		Appelez-nous	-
807	WR71X10532		Door Bin Fz		Appelez-nous	-
	WR01F00173		Tableau ├#lec   (Replaces: WR01F02591)			Immediately	$ 272.87
	WG03F00507		Carte Alimentation D''affichage			Immediately	$ 176.15
	WG03F00168		Condenseur, Moteur Du Ventilateur			Immediately	$ 171.70
	WG03F00133		Ens Compresseur			Immediately	$ 1,045.82
	WG03F00862		Relais				$ 67.82
	WR01F02490		Moteur Asm Ventilateur			Immediately	$ 161.50

    View Diagram in Separate Window       Print Part List
