1 - Escutcheon & Door Assembly


2 - Body Parts

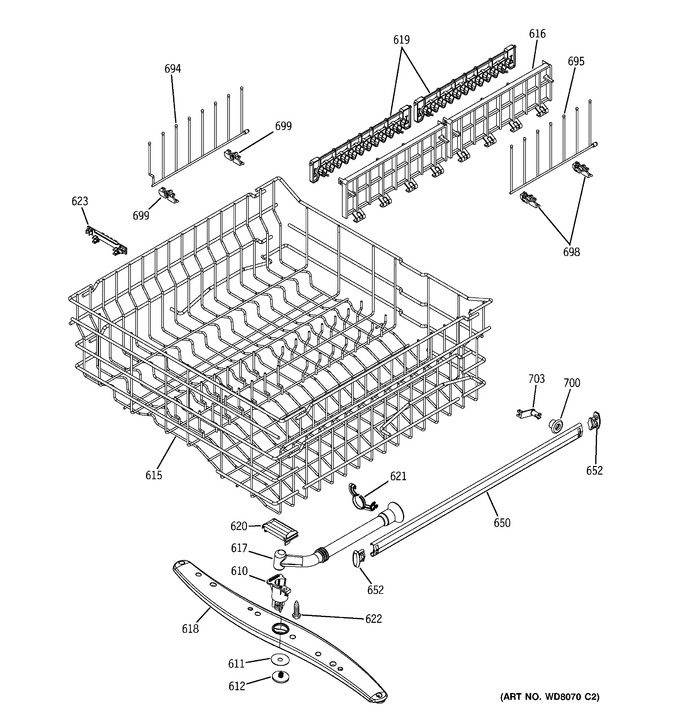

3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
610	WD12X10066		Hub Spray Arm Mid		Appelez-nous	-
611	WD01X10108		Bearing Spray Arm Mid		Appelez-nous	-
612	WG04A01183		Nut Hub Mid   (Replaces: WD01X10109)				$ 63.60
615	WD28X10074		Rack Upper Roll Asm		Appelez-nous	-
616	WD28X10012		Shelf Multi Purpose		Appelez-nous	-
617	WG04F01002		Conduit Spray Arm Mid   (Replaces: WD12X10052)				$ 15.88
618	WD22X10031		Arm Spray Mid Asm		Appelez-nous	-
619	WD28X10013		Gripper Stemware		Appelez-nous	-
620	WD12X10053		Bracket Spray Arm Mid		Appelez-nous	-
621	WG04F00126		Conduit Carrier Mid   (Replaces: WD12X10054)				$ 31.76
622	WG04A00176		Scr 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
623	WD12X10062		Finger Indexer		Appelez-nous	-
650	WG04L00503		Rack Slide   (Replaces: WD30X98)				$ 14.29
652	WG04L00086		Rack Slide End Cap   (Replaces: WD12X344)			Immediately	$ 94.28
694	WD28X10060		Comb Upper Rack Asm		Appelez-nous	-
695	WD28X10061		Comb Upper Rack Asm		Appelez-nous	-
698	WD28X10062		Retainer Comb		Appelez-nous	-
699	WD28X10063		Retainer Comb		Appelez-nous	-
700	WG04L05375		Roller Side   (Replaces: WD12X10065)			Immediately	$ 109.91
703	WG04L05375		Stud Roller   (Replaces: WD12X10073)			Immediately	$ 109.91
