Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10671238 Rail, Center Crisper   (Replaces: 12530701) In-Stock Immediately $ 112.82

2 W10231341 Trim, Crisper Special Order $ 50.13

3 WP67005864 Slide, Humidity Control   (Replaces: 12530805SP) In-Stock Immediately $ 7.81

4 W10201223 Basket, Upper Appelez-nous -
5 WPW10503183 Basket, Freezer (lower)   (Replaces: W10150038) In-Stock Immediately $ 237.48

7 W10709795 Screw   (Replaces: 12990515) Special Order $ 13.13

9 W10241046 Divider, Top In-Stock Immediately $ 27.80

10 W11402523 Shelf, Sta (4)   (Replaces: 12463509) In-Stock Immediately $ 221.39

11 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 6.95

15 WPW10568041 Frame, Pantry   (Replaces: 12530401SP) In-Stock Immediately $ 137.23

16 12724122N Pan, Crisper (2) Appelez-nous -
17 WP12227303WD Brace, Crisper (2)   (Replaces: 12227303WD) Special Order $ 105.95

18 WPW10568041 Frame, Crisper   (Replaces: 12530401SP) In-Stock Immediately $ 137.23

19 WP67006878 Glass, Crisper (2)   (Replaces: 12204822) In-Stock Immediately $ 185.19

20 W10273463 Ladder, Center Special Order $ 28.20

21 W10251969 Ladder, Side Special Order $ 29.94

22 WPW10328329 Pan, Pantry   (Replaces: 12645020) Special Order $ 154.44

27 W10205416 Divider, Lower Appelez-nous -
28 W10656985 Trim, Pantry   (Replaces: W10231333) Special Order $ 131.12

29 12531502 Slide,pantry Appelez-nous -
30 12531401 Bar, Pantry Appelez-nous -
31 WP12531601 Tunnel, Pantry   (Replaces: 12531601) Special Order $ 10.51

32 12531701 Gasket Appelez-nous -
33 WP67001721 Support-left   (Replaces: 12531001) In-Stock Immediately $ 8.70

33 WP67001722 Support-right   (Replaces: 12531002) In-Stock Immediately $ 8.93

34 WP67001716 Hook, Ladder   (Replaces: 12531802) In-Stock Immediately $ 10.61

35 WP67001719 Track   (Replaces: 12531901) In-Stock Immediately $ 8.56

36 W10311695 Divider-upper Fz   (Replaces: W10171570) Special Order $ 28.76


    View Diagram in Separate Window     Print Icon   Print Part List

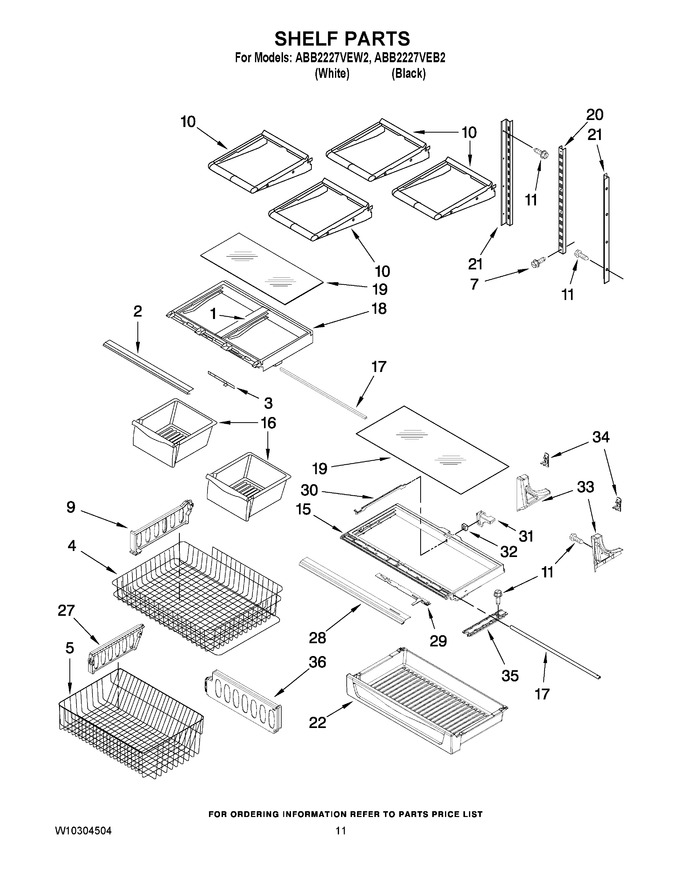

Diagram for ABB2227VEB2
