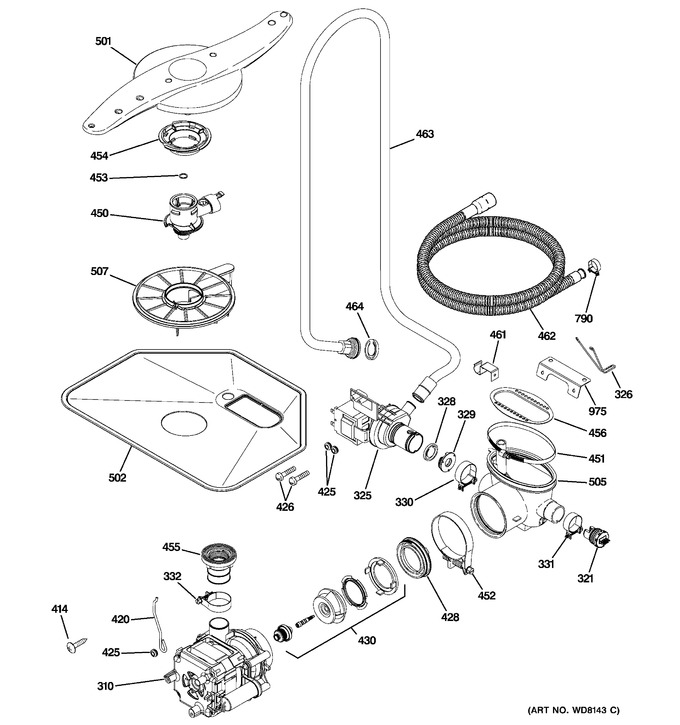

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WG04F00657 | Mechanism Asm (Replaces: WD26X10015) |
|
$ 348.61 | |||||
| 321 | WD21X10202 | Sensor Turbidity |
|
- | |||||
| 325 | WD26X10016 | Pump Drain Asm |
|
$ 84.70 | |||||
| 326 | WD01X10277 | Hanger & Grommet Asm |
|
- | |||||
| 328 | WD01X10178 | Valve Flapper |
|
- | |||||
| 329 | WD01X10176 | Seat Check Valve |
|
- | |||||
| 330 | WG04A00072 | Clamp (Replaces: WD01X10103) |
|
$ 9.53 | |||||
| 331 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 12.71 | ||||
| 332 | WD01X10105 | Clamp |
|
- | |||||
| 414 | WG04A00378 | Screw Mech Hanger (Replaces: WD2X444) |
|
$ 3.97 | |||||
| 420 | WD01X10211 | Hanger Motor |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Scr 10-18 X 5/8 |
|
- | |||||
| 428 | WD12X10060 | Ring Suction |
|
- | |||||
| 430 | WD19X10032 | Impeller Asm |
|
$ 24.20 | |||||
| 450 | WD18X10025 | Hub Venturi Asm |
|
- | |||||
| 451 | WG04A01069 | Clamp Sump (Replaces: WD01X10210) |
|
$ 19.06 | |||||
| 452 | WG04A00077 | Clamp Hose (Replaces: WD1X1392) |
|
$ 15.88 | |||||
| 453 | WG04A01023 | Bearing Spray Arm Low (Replaces: WD01X10107) |
|
$ 3.97 | |||||
| 454 | WG04A01182 | Nut Hub Fine Filter (Replaces: WD12X10061) |
|
Immediately | $ 57.25 | ||||
| 455 | WG04F00179 | Connector Pump Asm (Replaces: WD18X10010) |
|
Immediately | $ 52.48 | ||||
| 456 | WG04L01844 | Plate Sump (Replaces: WD01X10219) |
|
$ 240.81 | |||||
| 461 | WD01X10222 | Clip Drain Loop |
|
- | |||||
| 462 | WG04F01563 | Drain Tube Asm (Replaces: WD24X10014) |
|
Immediately | $ 68.11 | ||||
| 463 | WD24X10025 | Tube Drain Asm |
|
- | |||||
| 464 | WD01X10180 | Flapper Check Valve |
|
- | |||||
| 501 | WG04F00017 | Arm Spray Low Asm (Replaces: WD22X10035) |
|
$ 204.74 | |||||
| 502 | WD22X10038 | Filter Coarse |
|
- | |||||
| 505 | WG01L00289 | Sump Inlet (Replaces: WD18X10026) |
|
Immediately | $ 83.70 | ||||
| 507 | WG04F04636 | Filter Fine Asm (Replaces: WD12X10109) |
|
Immediately | $ 109.01 | ||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 790 | WD01X10065 | Clamp Hose |
|
- | |||||
| 975 | WD01X10224 | Motor Plate |
|
- |
