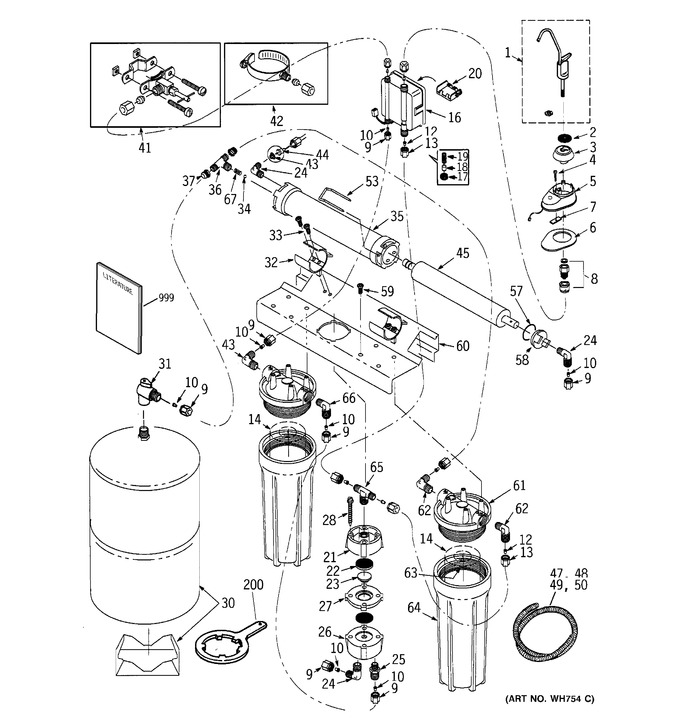

1 - Water Filtration System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WS15X10011		Faucet Black Tip & Lever		Appelez-nous	-
3	WS10X10008		Top Faucet Base Black				$ 48.36
4	WS02X10007		Screw #6-32 X 1 3/8"				$ 5.89
5	WS10X10011		Base Faucet Black		Appelez-nous	-
6	WS08X10003		Gasket Faucet				$ 12.40
7	WS02X10008		Nut		Appelez-nous	-
8	WS03X10003		Adaptor Tubing - 3/8"		Appelez-nous	-
9	WS22X10005		Nut 1/4" Tube				$ 10.60
10	WS22X10006		Insert 1/4" Tube				$ 10.60
12	WS22X10007		Insert 3/8" Tube				$ 10.23
13	WS22X10008		Nut 3/8" Tube				$ 11.78
14	FX12P		Pre & Post Filters-2 Ea.				$ 104.33
16	WS21X10001		Box Electronic		Appelez-nous	-
20	WS06X10002		Holder Battery				$ 29.14
21	WS10X10005		Valve Bottom				$ 65.10
22	WS22X10009		Diaphragm				$ 9.00
23	WS22X10010		Plunger				$ 17.36
24	WS22X10011		Elbow 1/8" Npt X 1/4"   (Replaces: WS22X10012)				$ 14.13
24	WS22X10011		Elbow 1/8 Npt X 1/4 &nut				$ 14.13
25	WS22X10013		Connector W/nut 1/8 Npt		Appelez-nous	-
25	WS22X10014		Connector 1/8 Npt X 1/4		Appelez-nous	-
26	WS10X10006		Valve Top		Appelez-nous	-
27	WS10X10007		Valve Center				$ 40.30
28	WS02X10010		Screw #10-14 X 1 3/4"		Appelez-nous	-
30	WS32X10006		Tank - 2.1 Gal.		Appelez-nous	-
31	WS15X10015		Tank Shutoff Valve		Appelez-nous	-
32	WS02X10018		Clip		Appelez-nous	-
33	WS02X10017		Screw		Appelez-nous	-
34	WS10X10012		Check Ball Asm		Appelez-nous	-
35	WS20X10004		Cartridge - R.o.				$ 236.98
36	WS22X10024		Tee 3/8" Tubing		Appelez-nous	-
37	WS02X10004		Nut 3/8"				$ 11.47
41	WS15X10008		Saddle Valve - Supply				$ 40.30
42	WS18X10006		Drain Line Adapter -dla9				$ 94.72
43	WS03X10015		Screen Cone				$ 14.57
44	WS03X10016		Control Flow				$ 9.89
45	FX12M		R.o. Cartridge			Immediately	$ 113.71
50	WS07X10005		Tubing 1/4" X 10 Ft - Bl		Appelez-nous	-
50	WS07X10019		Tubing 3/8" X 20 Ft - Wh   (Replaces: WS07X10008)				$ 37.89
50	WS07X10018		Tubing 1/4" X 100 Ft -wh   (Replaces: WS07X10010)				$ 22.16
50	WS07X10019		Tubing 3/8" X 100 Ft   (Replaces: WS07X10011)				$ 37.89
50	WS07X10018		Tubing 1/4" X 20 Ft -wh   (Replaces: WS07X10006)				$ 22.16
50	WS07X10007		Tubing 3/8" X 20 Ft - Bl		Appelez-nous	-
53	WS03X10026		U-pin		Appelez-nous	-
57	WS03X10028		O-ring 1 19/32" Id 2"od				$ 12.85
58	WS31X10009		Cover Inlet				$ 53.95
59	WS02X10001		Screw #10-14 X 3/4"		Appelez-nous	-
60	WS28X10006		Bracket		Appelez-nous	-
61	WS19X10007		Head   (Replaces: WS19X10001)				$ 52.08
62	WS22X10002		Elbow 3/8" Npt X 3/8"				$ 17.05
63	WS03X10001		O-ring 3-3/8" X 3-5/8"				$ 16.38
64	WS30X10001		Sump				$ 77.81
65	WS22X10025		Tee 1/8 Npt X 3/8 Tube		Appelez-nous	-
66	WS22X10026		Elbow 3/8 Npt X 1/4 Tube				$ 16.74
67	WS03X10030		Spring		Appelez-nous	-
200	WX5X140		Wrench - Sump Adj				$ 22.16
999	49-5802		Pm Manual Use & Care				$ 2,909.00
999	49-5808		Pm Instruction Instal				$ 3,676.63
