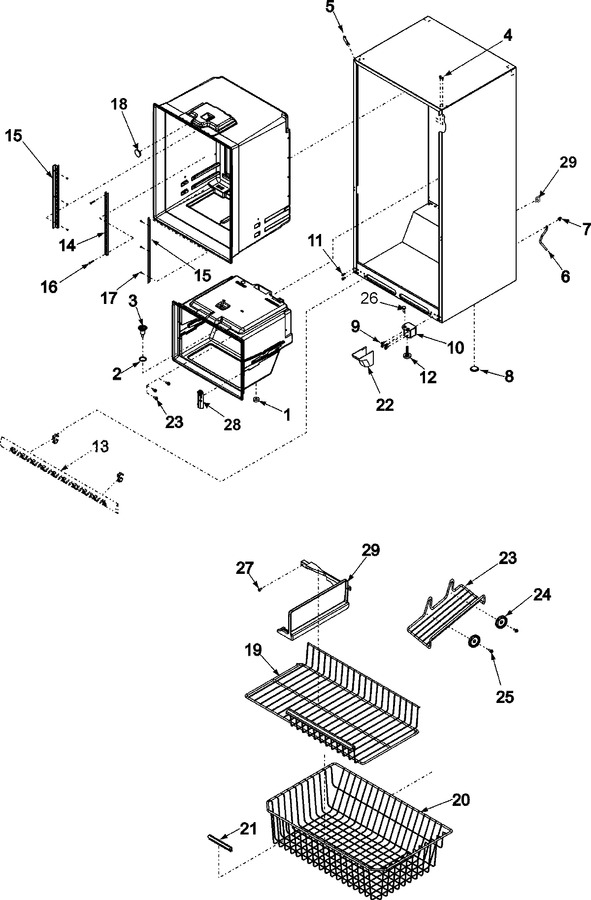

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) | 10 |
|
$ 7.41 | ||||
| 2 | WPM0500703 | Seal, O Ring (Replaces: M0500703) | 10 |
|
$ 10.92 | ||||
| 3 | W10815413 | Funnel, Drain (Replaces: D7753903) | 10 |
|
Immediately | $ 49.05 | |||
| 4 | A4539607 | Pop Rivet | 10 |
|
- | ||||
| 5 | 67003485 | Cover, Corner (blk) | 10 |
|
Immediately | $ 21.09 | |||
| 6 | 67001066 | Tube, Drain | 10 |
|
$ 55.82 | ||||
| 7 | 67001067 | Clip, Drain Tube | 10 |
|
$ 9.20 | ||||
| 8 | A3076901 | Plug-button | 10 |
|
$ 5.70 | ||||
| 9 | 67003858 | Screw, Bottom Hinge | 10 |
|
- | ||||
| 10 | 67001068 | Hinge, Bottom E-ct (blk) | 10 |
|
- | ||||
| 11 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.19 | |||||
| 12 | W11177593 | Brake, Foot (Replaces: 10354001) | 10 |
|
$ 11.60 | ||||
| 13 | 67002224 | Grille Assy., Toe (blk) |
|
$ 38.59 | |||||
| 14 | 67001073 | Ladder, Center | 10 |
|
$ 54.18 | ||||
| 15 | 67001317 | Ladder, Sides | 10 |
|
$ 39.13 | ||||
| 16 | W10709795 | Screw (Replaces: M0231425) | 10 |
|
$ 13.13 | ||||
| 17 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 6.95 | |||
| 18 | M0310343 | Plug, Button (wht) |
|
$ 10.67 | |||||
| 19 | 67003469 | Shelf, Glide 33`` |
|
- | |||||
| 20 | 67003330 | Basket, Lower 33`` | 10 |
|
- | ||||
| 21 | 10508506 | Handle, Basket/shelf | 10 |
|
- | ||||
| 22 | 12561901B | Cover, Lwr Hinge (blk) | 10 |
|
$ 11.62 | ||||
| 23 | 12646501 | Rack, Ice Tray | 10 |
|
- | ||||
| 24 | 10972101 | Spacer, Ice Rack | 10 |
|
$ 7.82 | ||||
| 25 | WP67006908 | Screw (Replaces: M0230919) | 10 |
|
Immediately | $ 7.95 | |||
| 26 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.21 | ||||
| 26 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 27 | 67001310 | Screw |
|
- | |||||
| 28 | WP67003924 | Cover, Fz Thermistor (Replaces: 67003924) |
|
$ 7.82 | |||||
| 29 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 |
