SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer

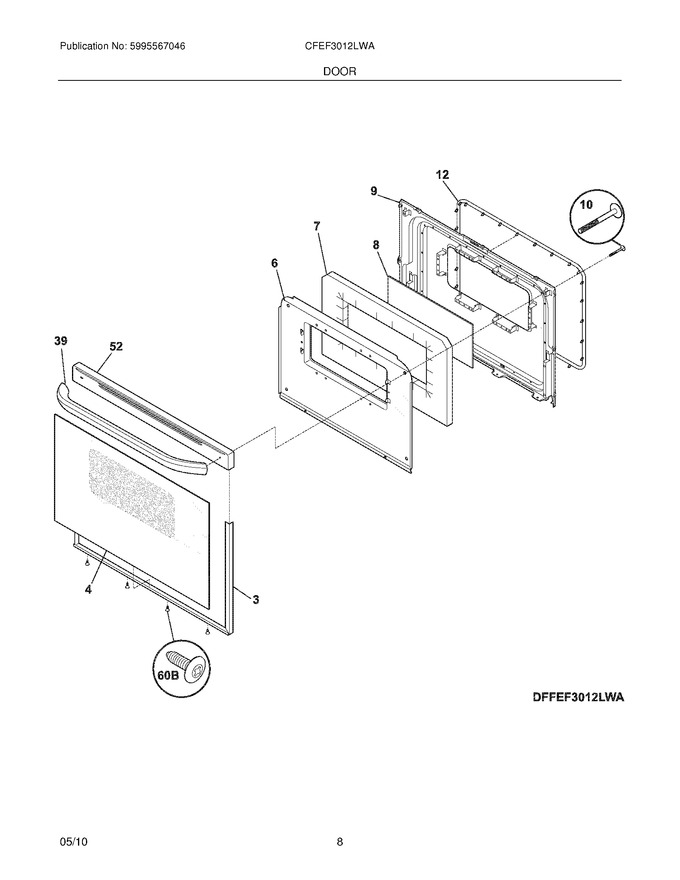

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935321		Trim Kit-door,3 Sided ,white ,w/tape And Foil				$ 91.35
4	316202803		Glass,oven Door ,white ,outer   (Replaces: 316202823)				$ 391.82
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 87.41
7	316236802		Insulation,oven Door				$ 41.63
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230622		Liner,oven Door				$ 144.38
10	316278700		Screw,wafer Head ,10-14 X 1 3/8 ,handle Mtg			Immediately	$ 30.55
12	316239700		Seal,oven Door			Immediately	$ 169.37
39	316545301		Handle,door/drawer ,white			Immediately	$ 145.39
52	316468600		Cap,door Trim ,white			Immediately	$ 87.99
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96

    View Diagram in Separate Window       Print Part List
