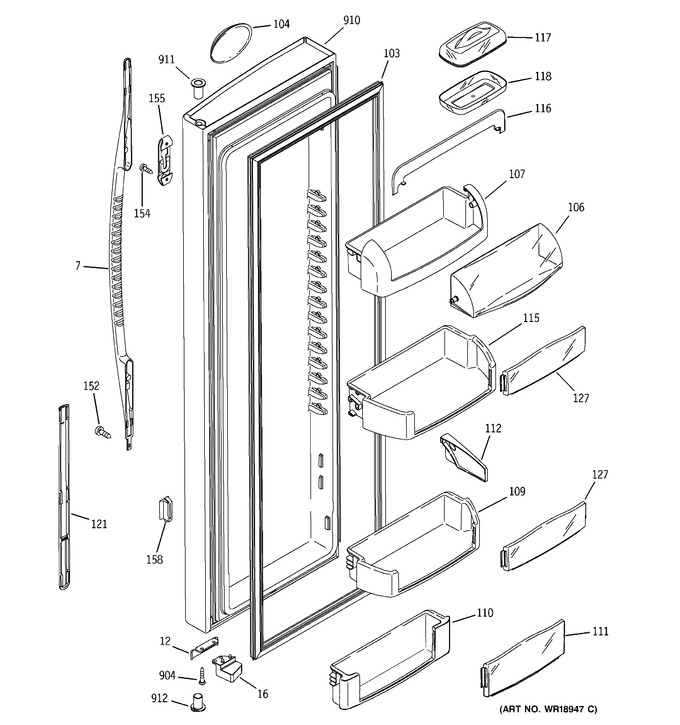

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X10430		Handle Sxs Asm Bk		Appelez-nous	-
12	WR01A00225		Stop Door Bk   (Replaces: WR02X10814)				$ 12.40
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 32.88
103	WR24X10071		Gasket Door Ff Bk		Appelez-nous	-
104	WR04X10103		Nameplate Refrig Bk		Appelez-nous	-
106	WR22X10022		Door Dairy Clear		Appelez-nous	-
107	WR22X10021		Compartment Dairy		Appelez-nous	-
109	WR71X10244		Module Shelf Ff		Appelez-nous	-
110	WR71X10297		Module Shelf Ff Fixed		Appelez-nous	-
111	WR01F01087		Insert Module Ff Fixed   (Replaces: WR71X10298)				$ 52.79
112	WR02X10639		Snugger		Appelez-nous	-
115	WR71X10253		Module Shelf Ff		Appelez-nous	-
116	WR22X10023		Trim Dairy Compartment		Appelez-nous	-
117	WR22X10019		Lid Dish Butter		Appelez-nous	-
118	WR22X10018		Dish Butter		Appelez-nous	-
121	WR12X10429		Trim Handle Lower Bk		Appelez-nous	-
127	WR01L00085		Module Shelf Insert   (Replaces: WR71X10380)			Immediately	$ 10.63
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
904	WR1X2134		Scr 10-32		Appelez-nous	-
910	WR78X10432		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-
