SELECT A DIAGRAM
New Model Search:

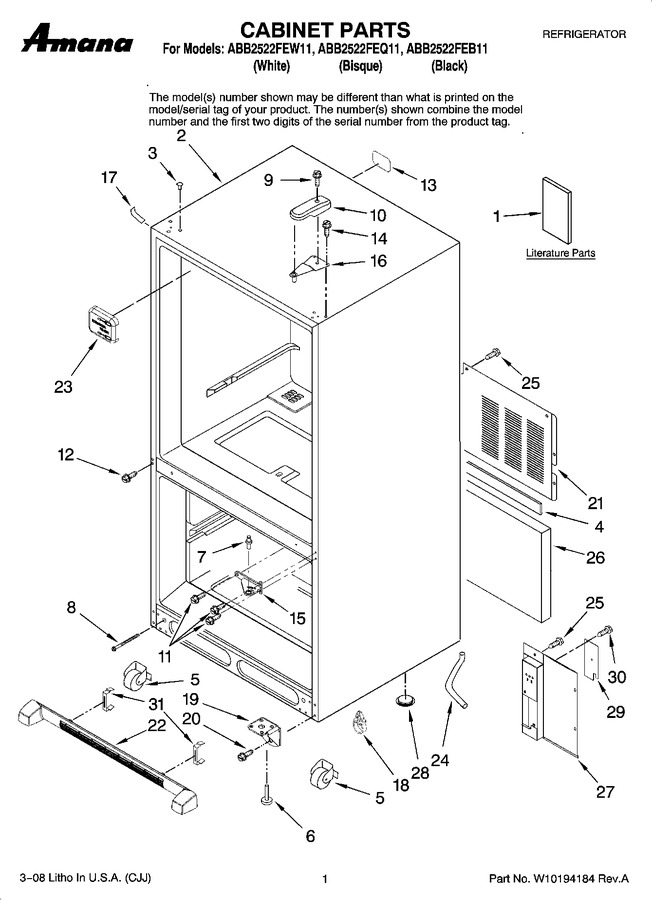

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10123464 | Energy Guide |
|
- | |||||
| 1 | 67006716 | Tech Sheet |
|
- | |||||
| 1 | W10137539 | Use & Care Guide |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 3 | M0310738 | Plug, Button (3) (bisque) |
|
- | |||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 67006118 | Roller Assembly |
|
- | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001012 | Cover Hinge (black) |
|
$ 49.71 | |||||
| 10 | 67001014 | Cover Hinge (white) |
|
$ 22.34 | |||||
| 10 | 67001013 | Cover, Hinge (bisque) |
|
- | |||||
| 11 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 8.43 | ||||
| 12 | W11573362 | Screw (Replaces: 67006380) |
|
$ 14.72 | |||||
| 13 | W11685757 | Label, Fl Tb Plug (Replaces: 67005064) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 67006960) |
|
$ 69.79 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 67007043) |
|
$ 167.35 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 17 | 67003484 | Cover, Corner (white) |
|
$ 21.42 | |||||
| 17 | 67003486 | Cover, Corner (bisque) |
|
- | |||||
| 18 | W10157973 | Clip, Drain |
|
$ 7.80 | |||||
| 19 | 12906303WD | Foot, Cabinet (Replaces: 67007174) |
|
$ 88.58 | |||||
| 20 | 67006564 | Screw |
|
Immediately | $ 8.15 | ||||
| 21 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 22 | WPW10534153 | Grille Assembly (includes Clips) (black) (Replaces: 67006375) |
|
$ 154.57 | |||||
| 22 | 67006376 | Grille Assembly (includes Clips) (bisque) |
|
- | |||||
| 22 | WPW10534154 | Grille Assembly (includes Clips) (white) (Replaces: 67006377) |
|
$ 153.66 | |||||
| 23 | WP67001098 | Cover, Fl Tb (Replaces: 67001098) |
|
$ 8.43 | |||||
| 24 | W10164397 | Tube, Drain |
|
$ 15.53 | |||||
| 25 | 67006425 | Screw (9) |
|
Immediately | $ 7.30 | ||||
| 26 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 27 | 12479803 | Cover, Water Valve |
|
- | |||||
| 28 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 29 | 12479901 | Plate, Cover |
|
- | |||||
| 30 | WP489128 | Screw (Replaces: 67006662) |
|
$ 11.40 | |||||
| 31 | 12627302 | Clip, Grille |
|
$ 5.84 | |||||
| W10833902 | Clamp, Tube (Replaces: 8170942) |
|
$ 11.54 |
