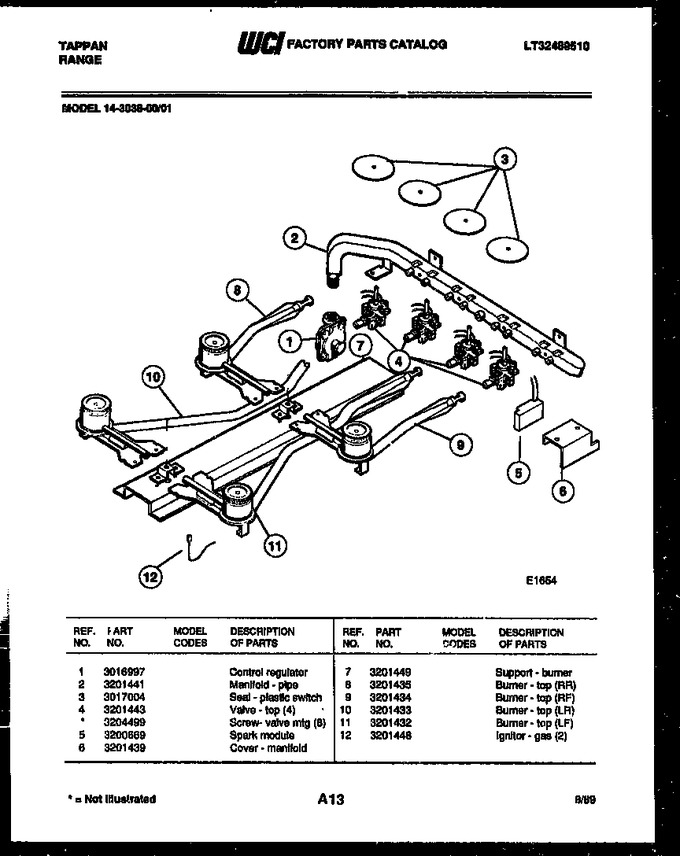

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016997 | Control Regulator |
|
- | |||||
| 2 | 3201441 | Manifold - Pipe |
|
- | |||||
| 3 | 3017004 | Seal - Plastic Switch |
|
- | |||||
| 4 | 3201443 | Valve - Top (4) |
|
- | |||||
| 5 | 3200669 | Spark Module |
|
- | |||||
| 6 | 3201439 | Cover - Manifold |
|
- | |||||
| 7 | 3201449 | Support - Burner |
|
- | |||||
| 8 | 3201435 | Burner - Top (rr) |
|
- | |||||
| 9 | 3201434 | Burner - Top (rf) |
|
- | |||||
| 10 | 3201433 | Burner - Top (lr) |
|
- | |||||
| 11 | 3201432 | Burner - Top (lf) |
|
- | |||||
| 12 | 3201448 | Ignitor - Gas (2) |
|
- | |||||
| 4A | 3204499 | Screw-valve Mtg (8) (non-illustrated) |
|
- |
