SELECT A DIAGRAM

Diagram for 10 - Custom Cool
10 - Custom Cool

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Sealed System & Mother Board
2 - Sealed System & Mother Board

Diagram for 3 - Fresh Food Door
3 - Fresh Food Door

Diagram for 4 - Freezer Section
4 - Freezer Section

Diagram for 5 - Evaporator Instructions
5 - Evaporator Instructions

Diagram for 6 - Freezer Shelves
6 - Freezer Shelves

Diagram for 7 - Ice Maker & Dispenser
7 - Ice Maker & Dispenser

Diagram for 8 - Fresh Food Section
8 - Fresh Food Section

Diagram for 9 - Fresh Food Shelves
9 - Fresh Food Shelves


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WR71X10661 Module Shelf Ff Asm Appelez-nous -
1 31-46221 Pm Mini Wiring Manual Appelez-nous -
7 WR12X10406 Handle Sxs Asm Wh Appelez-nous -
11 WR38X10353 Trim Recess Disp Bow Appelez-nous -
12 WR02X10690 Stop Door Wh Appelez-nous -
14 WR01L02185 Gasket Door Fz Wh   (Replaces: WR24X10156) Special Order $ 62.92

15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
23 WR71X10355 Module Shelf Fz Fixed Appelez-nous -
31 WR17X11654 Grille Recess Wh Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 80.09

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 60.67

58 WR17X12117 Housing Shield Disp Appelez-nous -
61 WR02X12007 Socket Lamp Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 58.69

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.57

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 11.44

69 WR17X12137 Funnel Ice Disp Wh Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 15.72

74 WR02X10584 Spring Funnel Appelez-nous -
80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 17.15

93 WR55X10609 Interface Disp Asm Appelez-nous -
121 WR12X10405 Trim Handle Lower Wh Appelez-nous -
122 WR71X10359 Module Support Fz Appelez-nous -
123 WR71X10358 Module Support Fz Appelez-nous -
124 WR21X10111 Basket Wire Tiltout Fz Appelez-nous -
125 WR21X10110 Basket Wire Tiltout Fz Appelez-nous -
154 WR01X10624 Scr 8-18 Appelez-nous -
155 WR02X10643 Bracket Handle Lock Appelez-nous -
158 WR02X10646 Tail Mtng Hndl Retnr Appelez-nous -
900 WR78X11737 Door Asm Fz Kit Wh Appelez-nous -
903 WR01X10208 Thimble Door Btm Fz Wh Appelez-nous -
904 WR01A00637 Scr 10-16   (Replaces: WR01X10611) Special Order $ 3.57

911 WR01X10207 Thimble Door Top Wh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

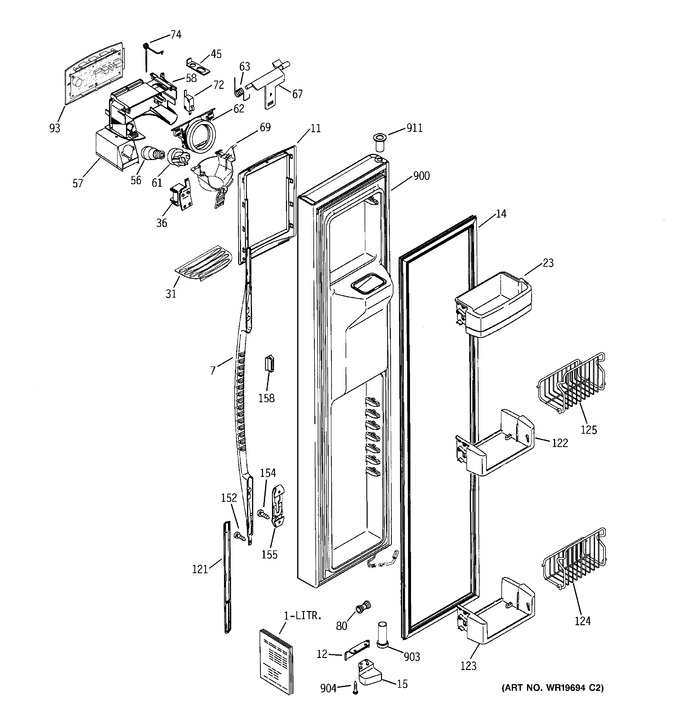

Diagram for PSE25NGTACWW
