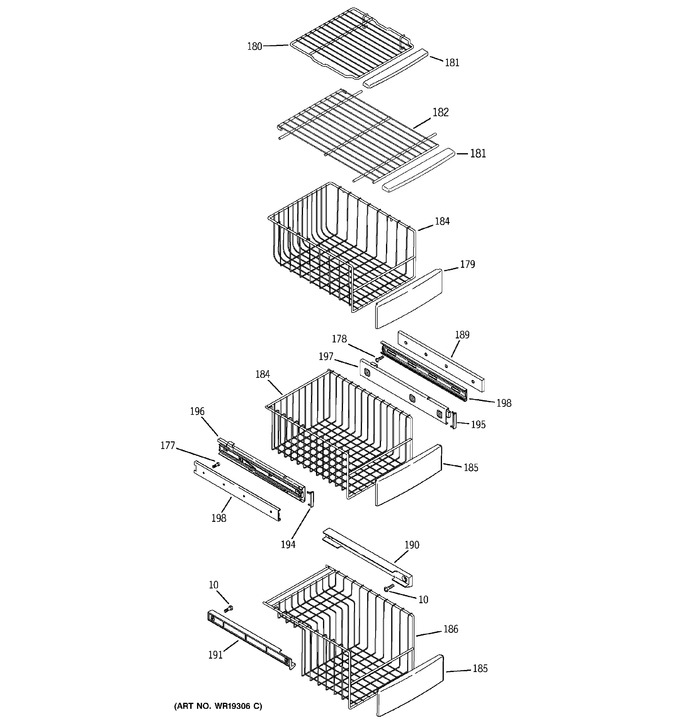

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
177	WR01X10240		8-8x7/16 Torx Pan Head		Appelez-nous	-
178	WR01X10241		8-18x13/16 Trox Pan Head		Appelez-nous	-
179	WR12X10624		Handle		Appelez-nous	-
180	WR71X10704		Shelf Fixed Fz		Appelez-nous	-
180	WR71X10526		Shelf Fixed Fz		Appelez-nous	-
181	WR38X10214		Trim Shelf Fz		Appelez-nous	-
182	WR71X10502		Shelf Adjustable Fz		Appelez-nous	-
184	WR21X10032		Basket Fz Long		Appelez-nous	-
185	WR12X10625		Handle		Appelez-nous	-
185	WG03F00903		Spring Closure   (Replaces: WR1X2027)				$ 68.16
186	WR21X10035		Basket Wire Fz		Appelez-nous	-
189	WR17X10913		Spacer		Appelez-nous	-
190	WR17X10916		Support Slide Basket		Appelez-nous	-
191	WR17X10917		Support Slide Basket		Appelez-nous	-
194	WR02X10810		Cover L.h.		Appelez-nous	-
195	WR02X10811		Cover R.h.		Appelez-nous	-
196	WR72X10197		Slide & Bracket Asm		Appelez-nous	-
196	WR72X10063		Slide & Bracket Asm		Appelez-nous	-
197	WR72X10198		Slide & Bracket Asm		Appelez-nous	-
197	WR72X10064		Slide & Bracket Asm		Appelez-nous	-
198	WR72X10199		Slide Liner		Appelez-nous	-
198	WR72X10065		Slide Liner		Appelez-nous	-
198	WH1X2722		Bumper Lid		Appelez-nous	-
